Fig. 5: Analysis of the self-oscillating behavior and kinetics during the BZ reaction. | NPG Asia Materials

Fig. 5: Analysis of the self-oscillating behavior and kinetics during the BZ reaction.

From: Fabrication of Comb-type self-oscillating gels by atom transfer radical polymerization for controlling autonomous swelling/deswelling behavior

Fig. 5

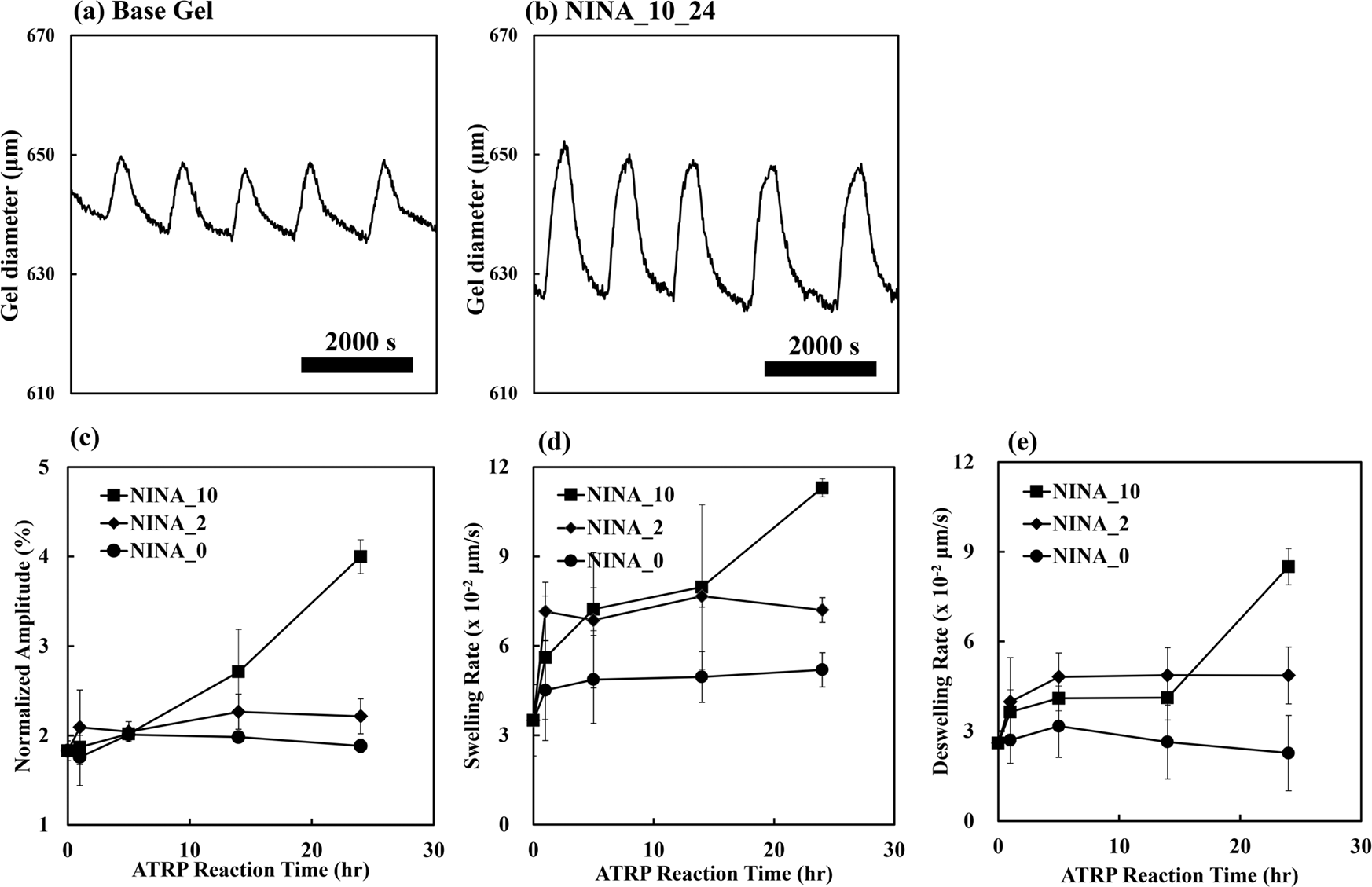

Time profiles of the gel diameter during self-oscillation of the a Base Gel and b NINA_10_24 at 20 °C. c Normalized amplitude, d swelling rate, and e deswelling rate of the various NAPMAm compositions calculated from the time profiles of the gel diameter plotted as a function of the ATRP reaction time. The substrate solution for self-oscillation contains [HNO3] = 894 mM, [NaBrO3] = 84 mM, and [MA] = 64 mM.
