Fig. 8: Anti-Stokes PL from halide perovskites.

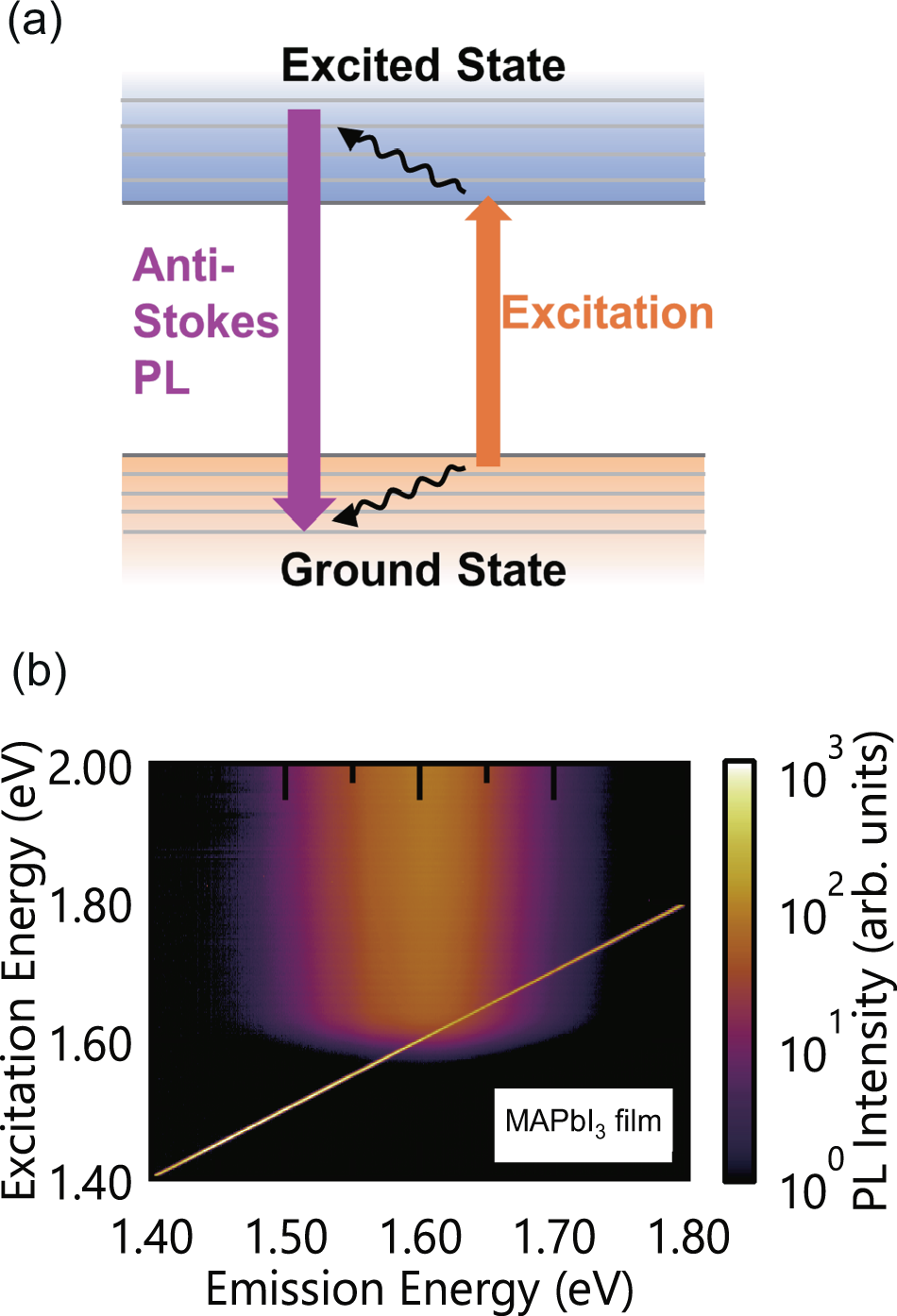

a Schematic illustration of anti-Stokes PL via phonon absorption in a semiconductor. b PL excitation map of a MAPbI3 thin film. The thin diagonal line corresponds to the scattering signal of the excitation light. Panel b is adapted with permission from ref. 25, licensed under CC BY 4.0.
