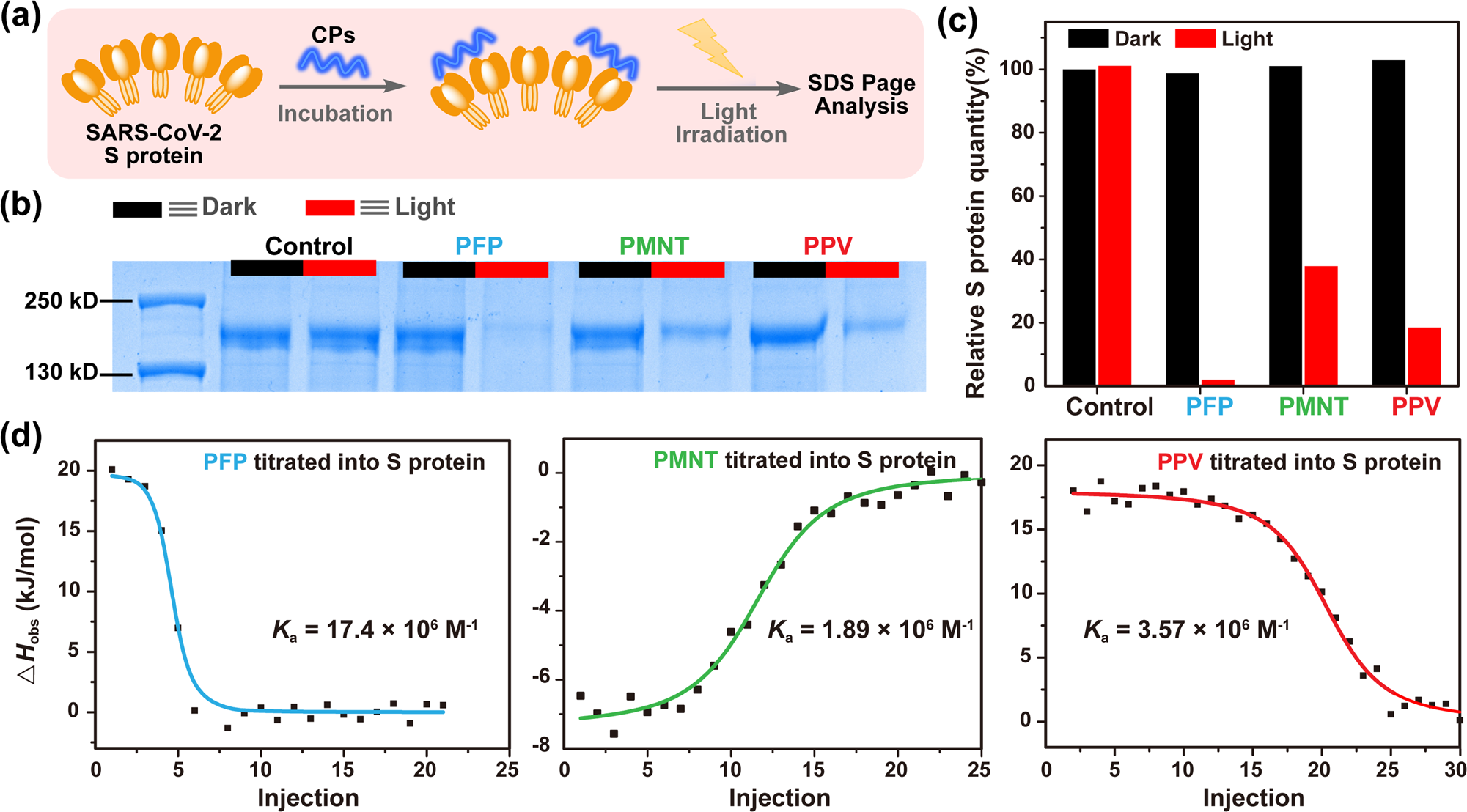

Fig. 2: Photodegradation of S protein using CPs.
From: Photoactive conjugated polymer-based strategy to effectively inactivate RNA viruses
a Schematic of the photodegradation assays. S proteins were incubated with CPs for 15 min and then irradiated by white light for 10 min. The light-irradiated mixtures were analyzed by SDS‒PAGE. b Gel picture and (c) Quantitative analysis. d ITC analysis of the binding affinity between CPs and the S protein.
