Fig. 6: Typical organic HTMs for inverted PSCs.

From: Recent progress in the development of high-efficiency inverted perovskite solar cells

Fig. 6: Typical organic HTMs for inverted PSCs.The alternative text for this image may have been generated using AI.

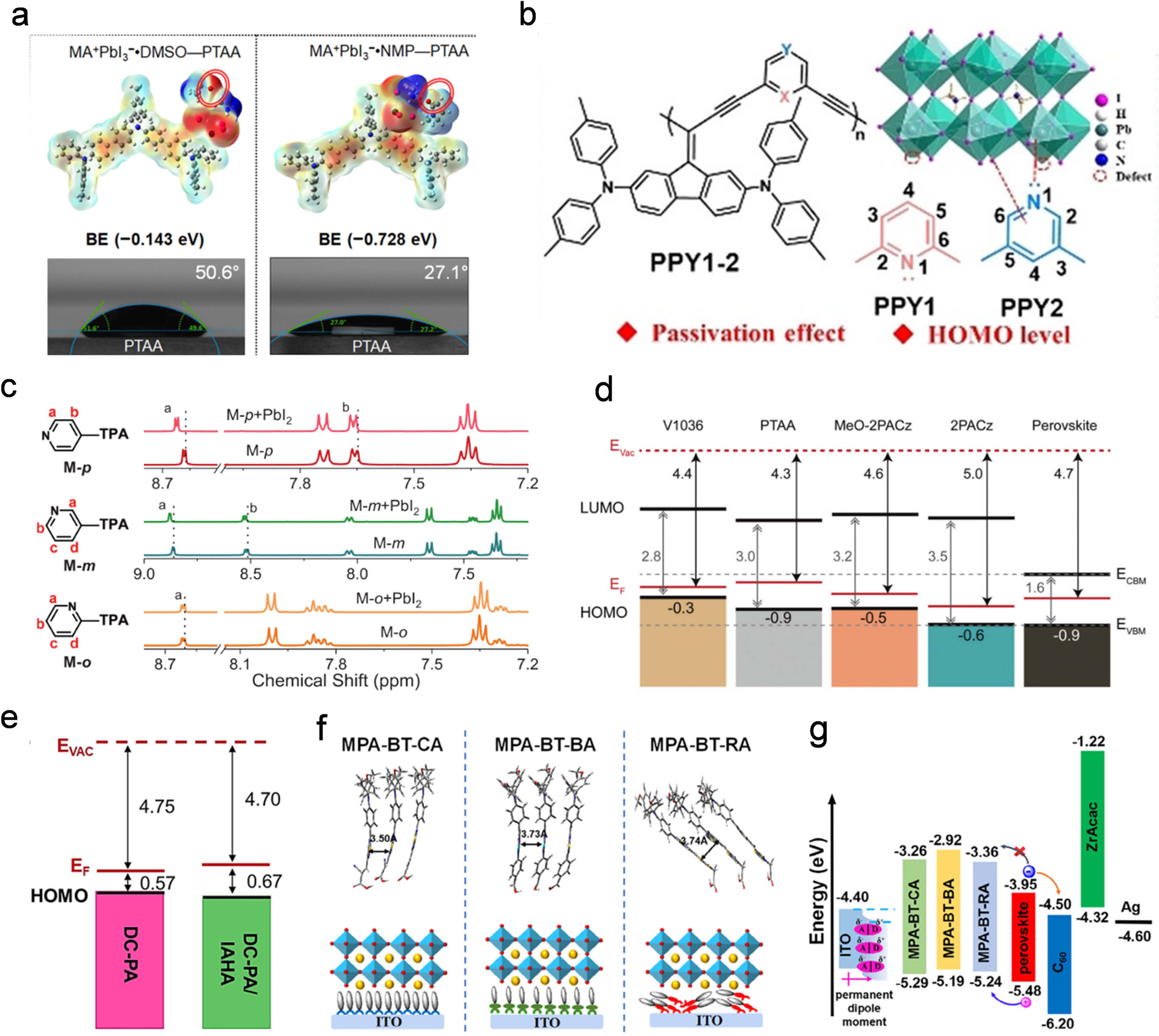

a Schematic diagram of the electrostatic potential and binding energy of MA+PbI3∙DMF-PTAA and MA+PbI3∙DMSO-PTAA and contact angle measurements for precursor solutions of the corresponding solvents on a PTAA surface. Reproduced with permission from Ref. 92. Copyright 2021, Elsevier. b Molecular design ideas for PPYs. Reproduced with permission from Ref. 96. Copyright 2021, Wiley-VCH. c 1H NMR pattern of pyridine-based monomers with or without mixing with PbI2. Reproduced with permission from Ref. 97. Copyright 2022, Wiley-VCH. d Schematic illustration of the energetic alignment between perovskite and the investigated HTMs. Reproduced with permission from Ref. 103. Copyright 2019, Royal Society of Chemistry. e Schematic diagram of the energy level alignment of DC-PA and DC-PA/IAHA. Reproduced with permission from Ref. 104. Copyright 2022, Wiley-VCH. f Schematic diagram of the optimal stacking mode and possible molecular organization behavior of three SAMs on ITO substrate. g Schematic illustration of the energy levels of inverted devices based on three SAMs. Reproduced with permission from Ref. 98. Copyright 2022, Elsevier.
