Fig. 3: SAXS profiles and structural parameters for Zr-doped lithium aluminosilicate glass and glass-ceramics. | NPG Asia Materials

Fig. 3: SAXS profiles and structural parameters for Zr-doped lithium aluminosilicate glass and glass-ceramics.

From: Formation of a zirconium oxide crystal nucleus in the initial nucleation stage in aluminosilicate glass investigated by X-ray multiscale analysis

Fig. 3

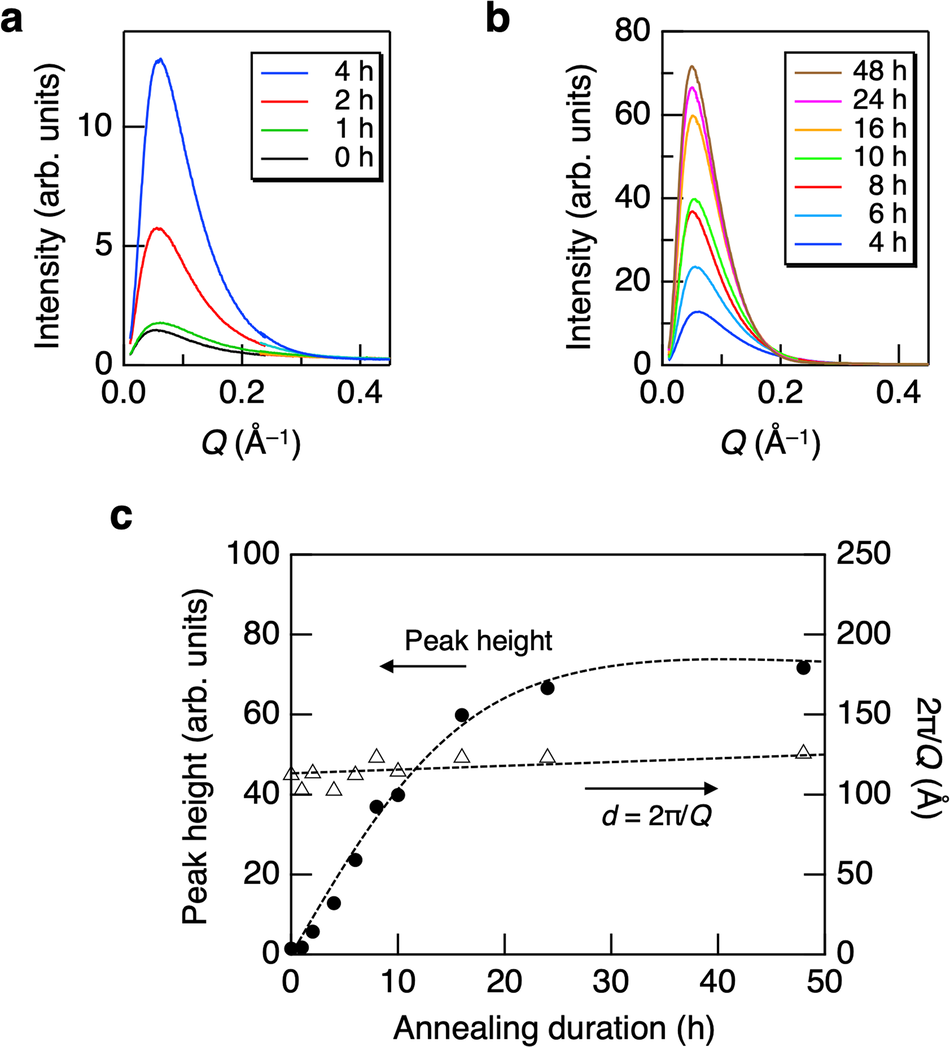

a SAXS profiles of the samples annealed for 0 h (black), 1 h (green), 2 h (red), and 4 h (blue). b SAXS profiles of the samples annealed for 4 h (blue), 6 h (cyan), 8 h (red), 10 h (green), 16 h (orange), 24 h (magenta), and 48 h (brown). c. Annealing duration dependence of the peak height (closed circles) and 2π/Q (open triangles) extracted from the SAXS profile.
