Fig. 5: Fourier transform of k3-weighted EXAFS functions for Zr-doped lithium aluminosilicate glass/glass-ceramics and ZrO2 crystals. | NPG Asia Materials

Fig. 5: Fourier transform of k3-weighted EXAFS functions for Zr-doped lithium aluminosilicate glass/glass-ceramics and ZrO2 crystals.

From: Formation of a zirconium oxide crystal nucleus in the initial nucleation stage in aluminosilicate glass investigated by X-ray multiscale analysis

Fig. 5

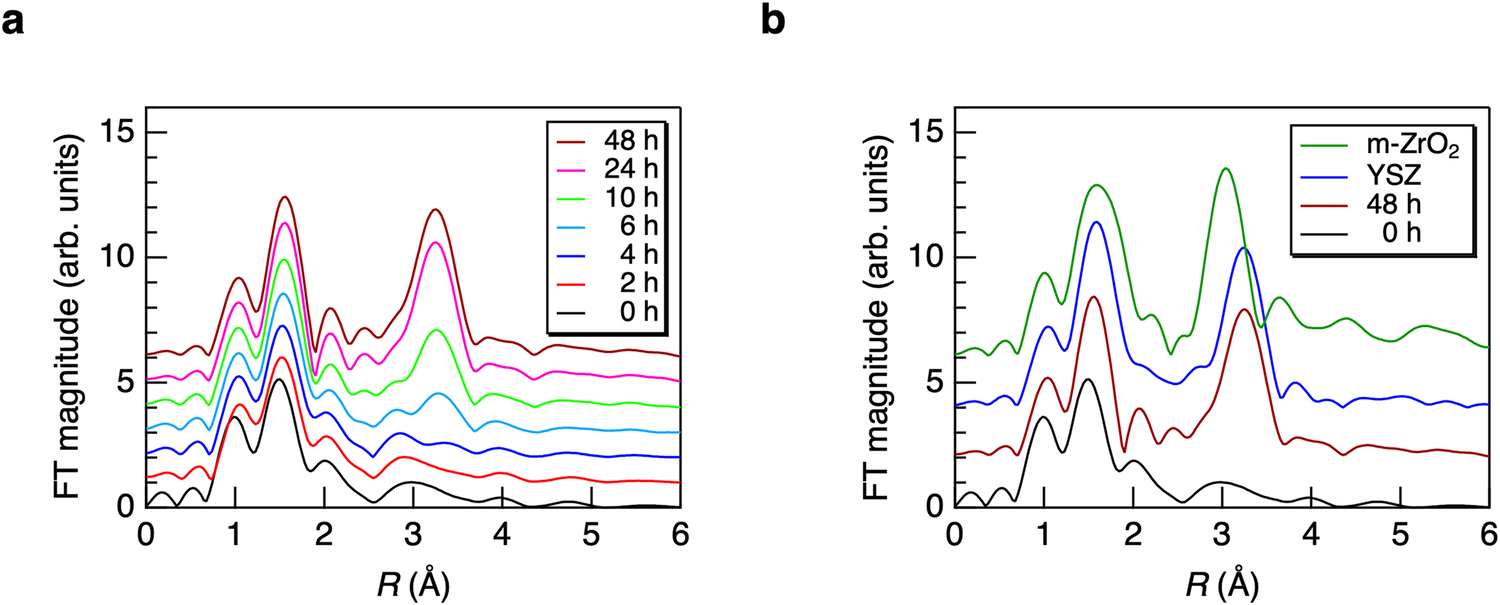

a Fourier transform of the k3-weighted EXAFS functions of the samples annealed for 0 h (black), 2 h (red), and 4 h (blue), 6 h (cyan), 10 h (green), 24 h (magenta), and 48 h (brown). b Fourier transform of the k3-weighted EXAFS functions of the samples annealed for 0 h (black) and 48 h (brown) along with those for YSZ (blue) and monoclinic zirconia (m-ZrO2) (green).
