Fig. 7 | Polymer Journal

Fig. 7

From: Evaluation-oriented exploration of photo energy conversion systems: from fundamental optoelectronics and material screening to the combination with data science

Fig. 7

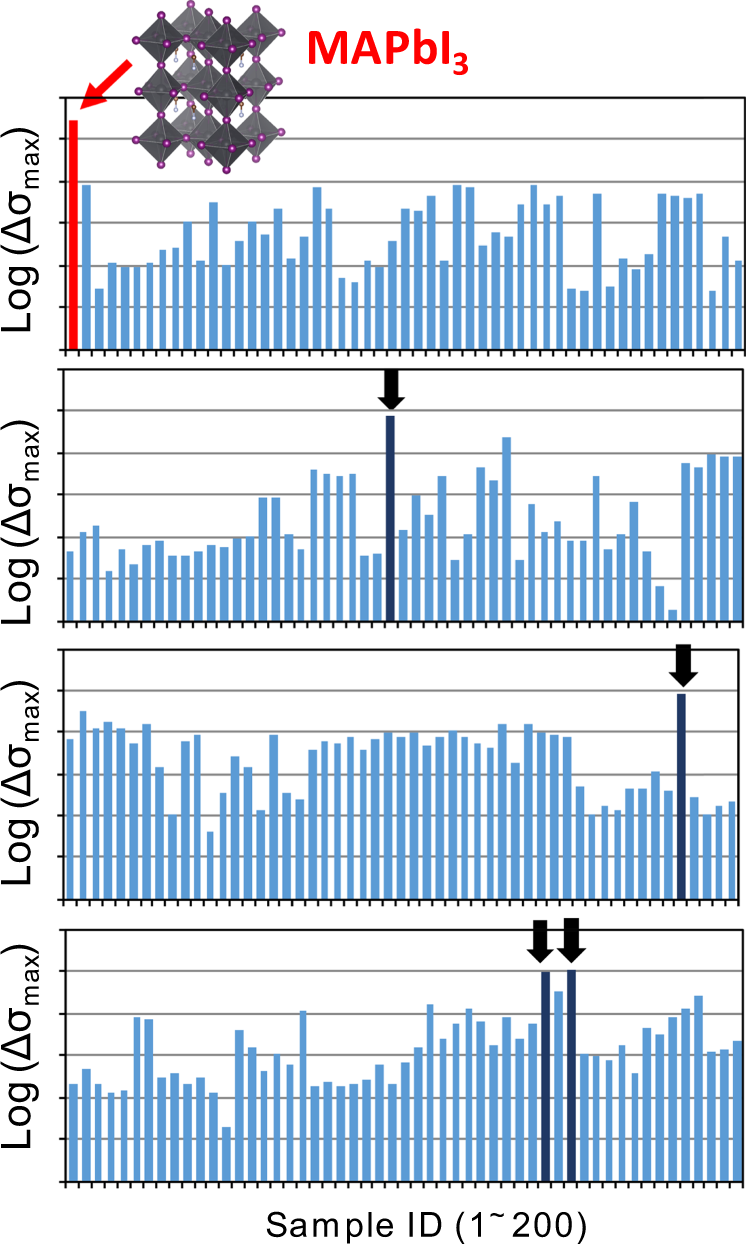

Rapid experimental screening of inorganic and organic–inorganic hybrid semiconductors by using Xe-flash TRMC. The vertical axis is the common logarithmic plot of Δσmax (arbitrary unit). The red bar represents the Δσmax of the highly efficient perovskite of MAPbI3 along with its structure. The dark blue bar with arrows represents the materials that show relatively high Δσmax values
