Fig. 4

From: Cross-linking polybutadiene rubber via a thiol-ene reaction with polycysteine as a degradable cross-linker

Fig. 4

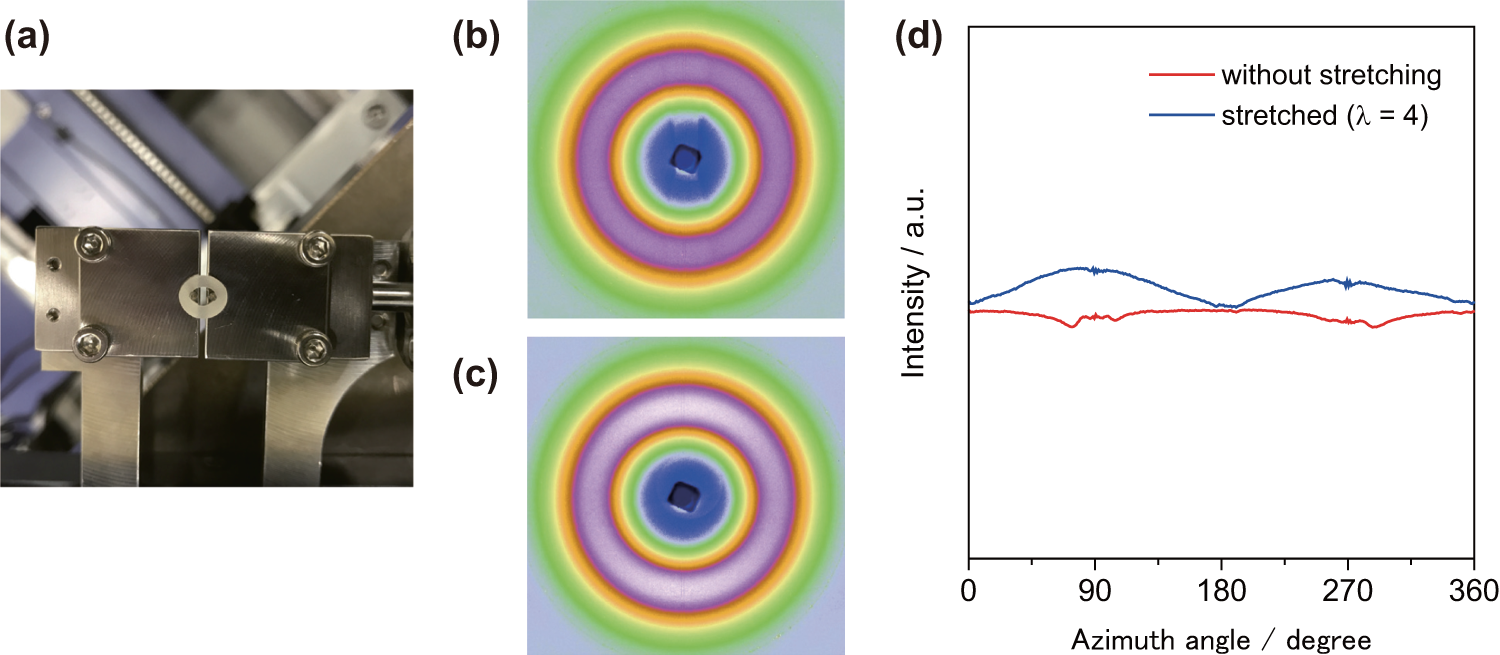

Ring sample of CL-PB2.5 for WAXD measurement during the stretching process (a) and the 2D WAXD profiles of CL-PB2.5 without stretching (b) and stretched at the stretching ratio λ = 4 (c). The stretching direction is horizontal to the images (0° and 180°). Azimuthal intensity profiles of the halo band for the sample with stretching ratios λ = 0 and 4 (d)
