Nonlinear stress relaxation and failure of time‒strain separability of aqueous poly(ethylene oxide)/silica nanoparticle mixtures

Polymer Journal volume 57, pages 163–170 (2025)Cite this article

Subjects

Abstract

The stress relaxation test is an effective and facile method for clarifying the nonlinear rheological behavior of soft materials. A thorough analysis of the stress relaxation behavior offers valuable insights into the molecular dynamics. However, the stress relaxation behavior and underlying molecular dynamics of polymer/particle mixtures remain poorly understood, despite their widespread industrial application. In this study, we systematically investigated the nonlinear stress relaxation behavior of a simple-structured poly(ethylene oxide) (PEO)/silica nanoparticle aqueous mixture. Time‒strain separability was observed at high polymer concentrations, with the stress relaxation attributable to the relaxation of the polymer matrix. At lower polymer concentrations, the time‒strain separability was no longer valid, and changes in absorbance over time suggested that stress relaxation originated from the relaxation of the aggregated structures. A transition from time‒strain separability to inseparability was observed when the estimated number of PEO molecules forming interparticle bridges was less than 1; this suggests that structural changes during shear loading occur only when new interparticle polymer bridges are formed, leading to the development of clustered structures. These results provide a basic understanding of the relationship between deformation and relaxation, which is crucial for systematically understanding the nonlinear rheology of polymeric materials.

This is a preview of subscription content, access via your institution

Access options

Buy this article

  • Purchase on SpringerLink
  • Instant access to the full article PDF.

USD 39.95

Prices may be subject to local taxes which are calculated during checkout

Fig. 1

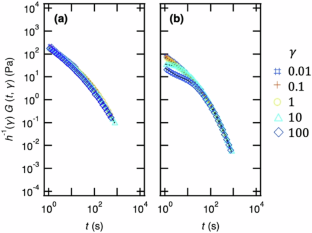

Fig. 2

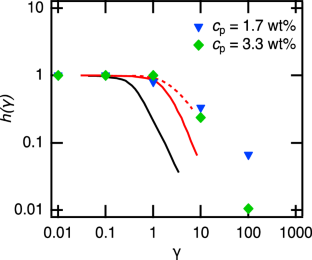

Fig. 3
Fig. 4

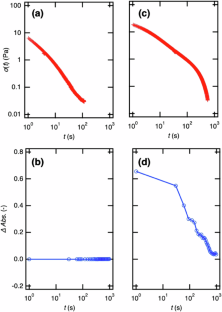

Fig. 5

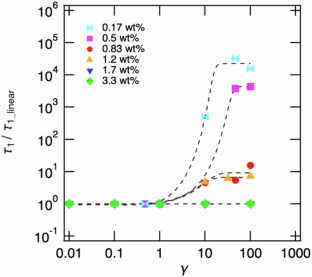

Fig. 6

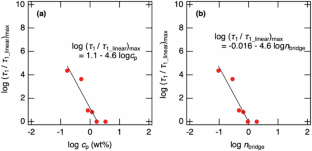

Fig. 7

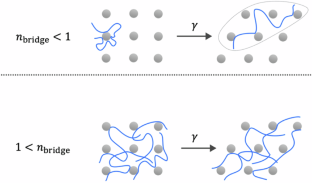

Fig. 8

Similar content being viewed by others

References

  1. Wusigale, Liang L, Luo Y. Casein and pectin: tructures, interactions, and applications. Trends Food Sci Technol. 2020;97. https://doi.org/10.1016/j.tifs.2020.01.027.

  2. Abdullah, Liu L, Javed HU, Xiao J. Engineering emulsion gels as functional colloids emphasizing food applications: a review. Front Nutr. 2022;9. https://doi.org/10.3389/fnut.2022.890188.

  3. McNamara K, Tofail SAM. Nanoparticles in biomedical applications. Adv Phys X. 2017;2. https://doi.org/10.1080/23746149.2016.1254570.

  4. Rizvi SAA, Saleh AM. Applications of nanoparticle systems in drug delivery technology. Saudi Pharm J. 2018;26:64–70.

    Article  PubMed  Google Scholar

  5. Contado C. Nanomaterials in consumer products: a challenging analytical problem. Front Chem. 2015;3. https://doi.org/10.3389/fchem.2015.00048.

  6. Rajan K, Roppolo I, Chiappone A, Bocchini S, Perrone D, Chiolerio A. Silver nanoparticle ink technology: state of the art. Nanotechnol Sci Appl. 2016;9. https://doi.org/10.2147/NSA.S68080.

  7. Nayak L, Mohanty S, Nayak SK, Ramadoss A. A review on inkjet printing of nanoparticle inks for flexible electronics. J Mater Chem C Mater. 2019;7:8771–95.

    Article  CAS  Google Scholar

  8. Khan SA, Jain M, Pandey A, Pant KK, Ziora ZM, Blaskovich MAT, et al. Leveraging the potential of silver nanoparticles-based materials towards sustainable water treatment. J Environ Manag. 2022;319:115675.

    Article  CAS  Google Scholar

  9. Otsubo Y. Rheological behavior of suspensions flocculated by weak bridging of polymer coils. J Colloid Interface Sci. 1999;215:99–105.

    Article  PubMed  CAS  Google Scholar

  10. Zhang H, Yuan G, Zhao C, Han CC. Liquid–gel–liquid transition and shear thickening in mixed suspensions of silica colloid and hyperbranched polyethyleneimine. Langmuir. 2013;29:12110–7.

    Article  PubMed  CAS  Google Scholar

  11. Park N, Rathee V, Blair DL, Conrad JC. Contact networks enhance shear thickening in attractive colloid-polymer mixtures. Phys Rev Lett. 2019;122:228003.

    Article  PubMed  CAS  Google Scholar

  12. Cabane B, Wong K, Lindner P, Lafuma F. Shear induced gelation of colloidal dispersions. J Rheol. 1997;41:531–47.

    Article  CAS  Google Scholar

  13. Osaki K, Takatori E, Kurata M, Watanabe H, Yoshida H, Kotaka T. Viscoelastic properties of solutions of star-branched polystyrene. Macromolecules. 1990;23:4392–6.

    Article  CAS  Google Scholar

  14. Osaki K. On the damping function of shear relaxation modulus for entangled polymers. Rheol Acta. 1993;32:429–37.

    Article  CAS  Google Scholar

  15. Archer LA, Sanchez-Reyes J, Juliani. Relaxation dynamics of polymer liquids in nonlinear step shear. Macromolecules. 2002;35:10216–24.

    Article  CAS  Google Scholar

  16. Doi M, Edwards SF. The theory of polymer dynamics. Oxford University Press; 1986.

  17. Osaki K, Nishizawa K, Kurata M. Material time constant characterizing the nonlinear viscoelasticity of entangled polymeric systems. Macromolecules. 1982;15:1068–71.

    Article  CAS  Google Scholar

  18. Osaki K, Takatori E, Tsunashima Y, Kurata M. On the universality of viscoelastic properties of entangled polymeric systems. Macromolecules. 1987;20:525–9.

    Article  CAS  Google Scholar

  19. Watanabe H, Yao M-L, Yamagishi A, Osaki K, Shitata T, Niwa H, et al. Nonlinear rheological behavior of a concentrated spherical silica suspension. Rheol Acta. 1996;35:433–45.

    Article  CAS  Google Scholar

  20. Watanabe H, Yao ML, Osaki K, Shikata T, Niwa H, Morishima Y. Nonlinear theology of a concentrated spherical silica suspension: 2. Role of strain in shear-thickening. Rheol Acta. 1997;36:524–33.

    Article  CAS  Google Scholar

  21. Kamibayashi M, Ogura H, Otsubo Y. Shear-thickening flow of nanoparticle suspensions flocculated by polymer bridging. J Colloid Interface Sci. 2008;321:294–301.

    Article  PubMed  CAS  Google Scholar

  22. Saito Y, Hirose Y, Otsubo Y. Shear-induced reversible gelation of nanoparticle suspensions flocculated by poly(ethylene oxide). Colloids Surf A Physicochem Eng Asp. 2011;384:40–46.

    Article  CAS  Google Scholar

  23. Yan F, Ye L, Qiu D. Effect of particle/polymer number ratio on the structure and dynamics of complex between large polymer and nanoparticle. Colloids Surf A Physicochem Eng Asp. 2016;507:67–75.

    Article  CAS  Google Scholar

  24. Collini H, Mohr M, Luckham P, Shan J, Russell A. The effects of polymer concentration, shear rate and temperature on the gelation time of aqueous Silica-Poly(ethylene-oxide) “Shake-gels”. J Colloid Interface Sci. 2018;517:1–8.

    Article  PubMed  CAS  Google Scholar

  25. Kawasaki S, Kobayashi M. Affirmation of the effect of pH on shake-gel and shear thickening of a mixed suspension of polyethylene oxide and silica nanoparticles. Colloids Surf A Physicochem Eng Asp. 2018;537:236–42.

    Article  CAS  Google Scholar

  26. Mar Ramos-Tejada M, Luckham PF. Shaken but not stirred: The formation of reversible particle-polymer gels under shear. Colloids Surf A Physicochem Eng Asp. 2015;471:164–9.

    Article  CAS  Google Scholar

  27. Tian Q, Sun J, Henderson MJ, Huang X, Li N, Courtois J, et al. Quantitative analysis of the structural relaxation of silica-PEO shake gel by X-ray and light scattering. Polym Test. 2021;104:107391.

    Article  CAS  Google Scholar

  28. Akada K, Okubo S, Yamada T, Tokuda K, Yamaguchi K, Uemura S, et al. Anisotropic flocculation in shear thickening colloid-polymer suspension via simultaneous observation of rheology and X-ray scattering. Colloids Surf A Physicochem Eng Asp. 2023;658:130727.

    Article  CAS  Google Scholar

  29. Ebagninin KW, Benchabane A, Bekkour K. Rheological characterization of poly(ethylene oxide) solutions of different molecular weights. J Colloid Interface Sci. 2009;336:360–7.

    Article  PubMed  CAS  Google Scholar

  30. Inoue T, Osaki K. Rheology of polystyrene solutions with scarcely entangled chains; role of slow relaxation mode in nonlinear behavior. Nihon Reoroji Gakkaishi. 2003;31:207–12.

    Article  CAS  Google Scholar

  31. Shibayama M, Kawada H, Kume T, Matsunaga T, Iwai H, Sano T, et al. In situ small-angle neutron scattering and rheological measurements of shear-induced gelation. J Chem Phys. 2007;127:144507.

    Article  PubMed  Google Scholar

  32. Bender J, Wagner NJ. Reversible shear thickening in monodisperse and bidisperse colloidal dispersions. J Rheol. 1996;40:899–916.

    Article  CAS  Google Scholar

  33. Newstein MC, Wang H, Balsara NP, Lefebvre AA, Shnidman Y, Watanabe H, et al. Microstructural changes in a colloidal liquid in the shear thinning and shear thickening regimes. J Chem Phys. 1999;111:4827–38.

    Article  CAS  Google Scholar

Download references

Acknowledgements

This work was supported by the Japan Society for the Promotion of Science (JSPS) through Grants-in-Aid for JSPS Fellows (No. 22J21871 to SK) and the Mitsubishi Foundation to YA.

Author information

Authors and Affiliations

  1. Department of Bioengineering, Graduate School of Engineering, The University of Tokyo, Bunkyo-ku, Tokyo, Japan

    Saki Kusakabe, Takuya Katashima & Ichiro Sakuma

  2. Department of Applied Physics, Tokyo University of Agriculture and Technology, Koganei-shi, Tokyo, Japan

    Yuki Akagi

Authors
  1. Saki Kusakabe
    View author publications

    Search author on:PubMed Google Scholar

  2. Takuya Katashima
    View author publications

    Search author on:PubMed Google Scholar

  3. Ichiro Sakuma
    View author publications

    Search author on:PubMed Google Scholar

  4. Yuki Akagi
    View author publications

    Search author on:PubMed Google Scholar

Contributions

The manuscript was written through the contributions of all authors. All authors have approved the final version of the manuscript.

Corresponding author

Correspondence to Yuki Akagi.

Ethics declarations

Conflict of interest

The authors declare no competing interests.

Additional information

Publisher’s note Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Supplementary information

Rights and permissions

Springer Nature or its licensor (e.g. a society or other partner) holds exclusive rights to this article under a publishing agreement with the author(s) or other rightsholder(s); author self-archiving of the accepted manuscript version of this article is solely governed by the terms of such publishing agreement and applicable law.

Reprints and permissions

About this article

Check for updates. Verify currency and authenticity via CrossMark

Cite this article

Kusakabe, S., Katashima, T., Sakuma, I. et al. Nonlinear stress relaxation and failure of time‒strain separability of aqueous poly(ethylene oxide)/silica nanoparticle mixtures. Polym J 57, 163–170 (2025). https://doi.org/10.1038/s41428-024-00974-x

Download citation

  • Received:

  • Revised:

  • Accepted:

  • Published:

  • Version of record:

  • Issue date:

  • DOI: https://doi.org/10.1038/s41428-024-00974-x
