From: In vitro activity of celastrol in combination with thymol against carbapenem-resistant Klebsiella pneumoniae isolates

Fig. 4

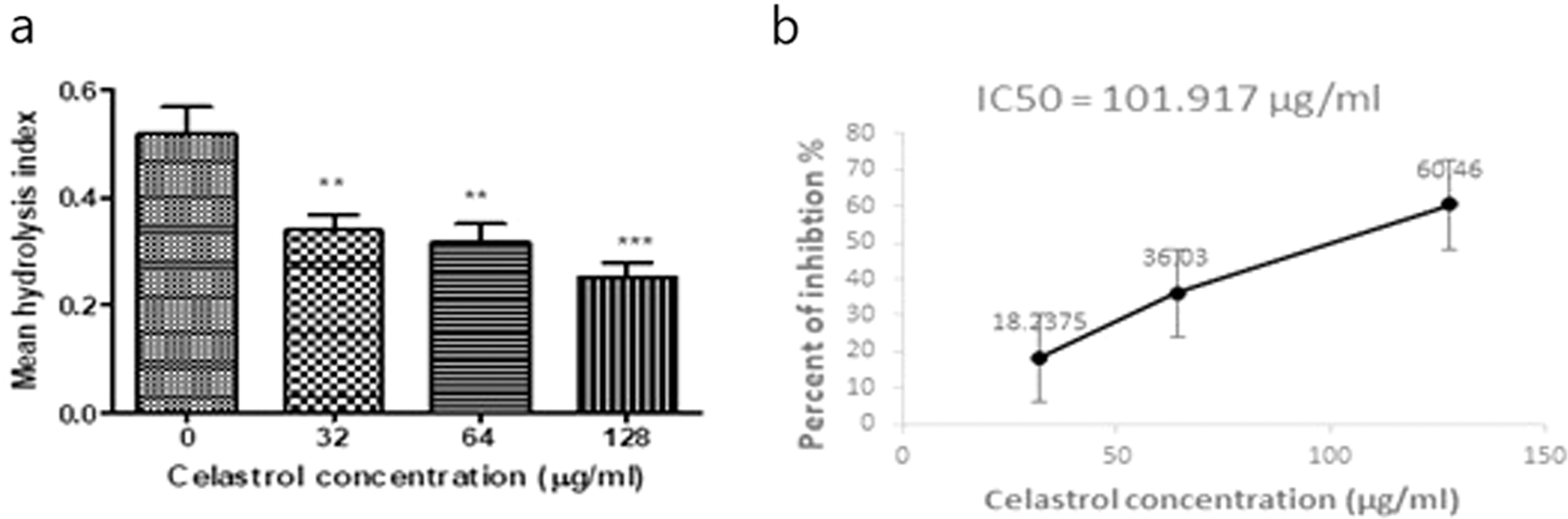

Celastrol inhibitory effect on the hydrolytic activity of the carbapenemases. a significant inhibitory effect of different celastrol concentrations on the activities carbapenemases detected by enzyme inhibition assays following co-incubation, b Percentage of carbapenemase activities inhibited by celastrol in a concentration-dependent manner. **indicates P < 0.01; ***indicates P < 0.001
