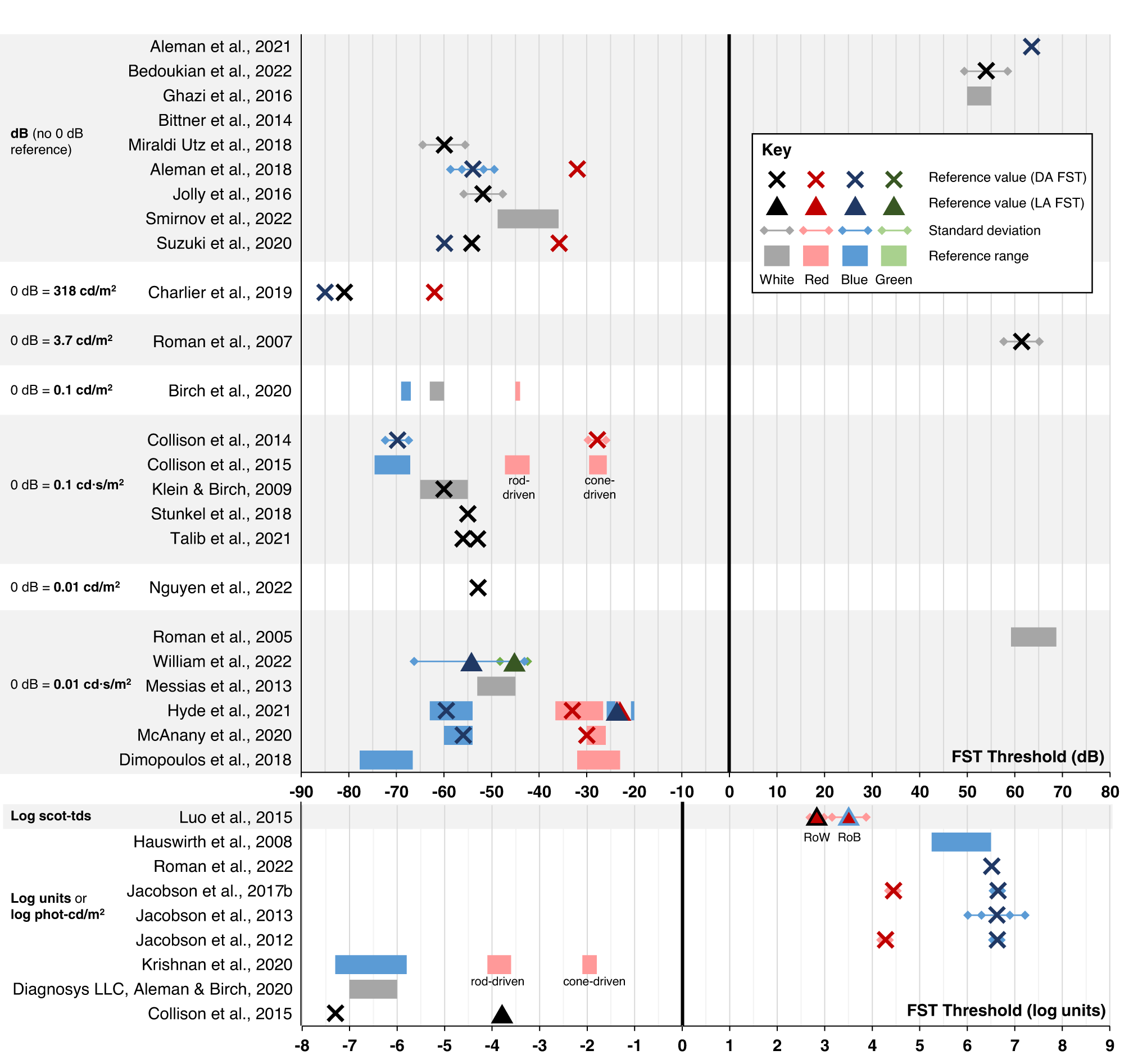

Fig. 9: Summary figure showing control reference data for full-field stimulus testing where available.
From: Full-field stimulus threshold testing: a scoping review of current practice
Studies are grouped according to units and 0 dB reference scaling. Note that data are plotted in their original reported values of each study, and so may not be directly comparable between studies that use different 0 dB scales. DA dark adaptation, FST full-field stimulus threshold, LA light adaptation.
