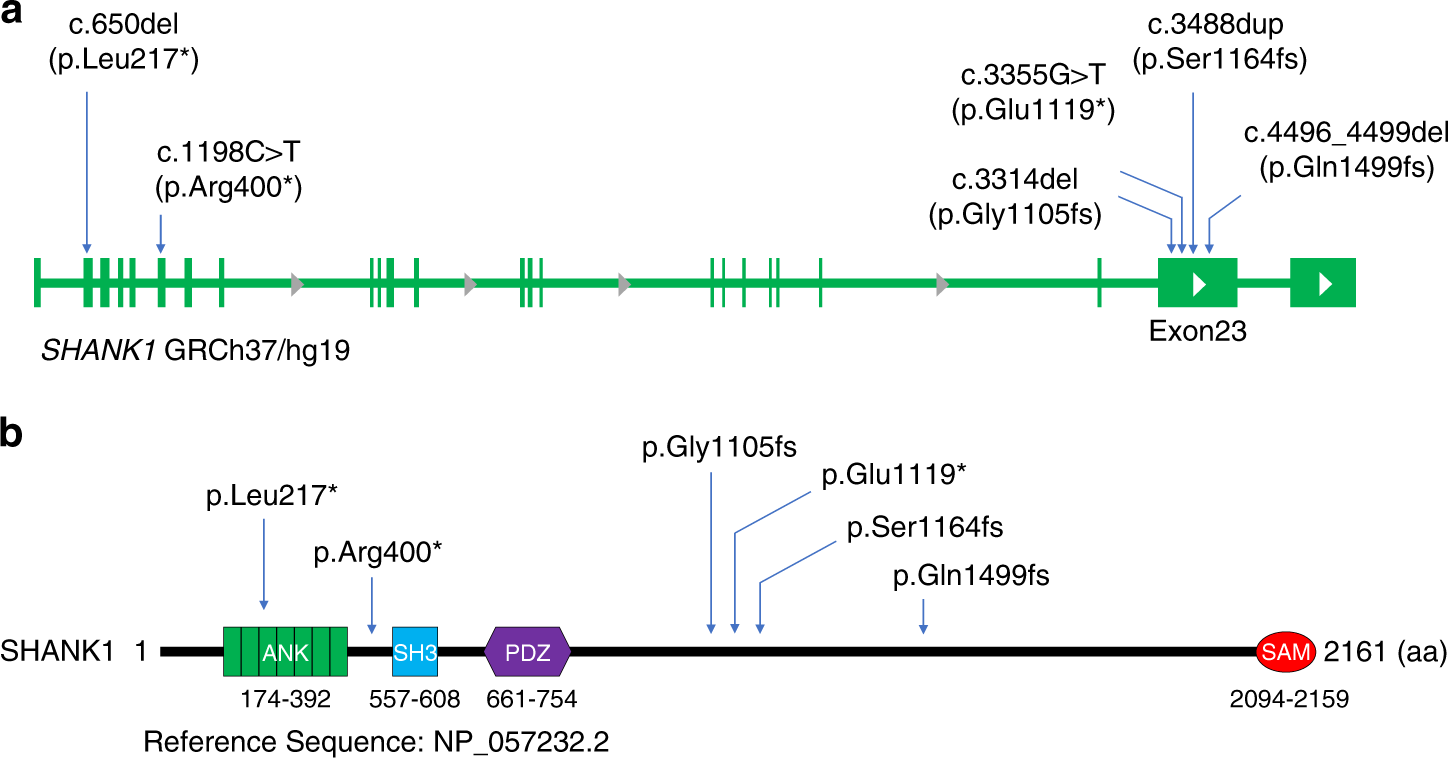

Fig. 1: De novo SHANK1 variants identified in patients with developmental delay and autism.

(a) Schematic figures show the distribution of six de novo variants observed in our cohort in the SHANK1 genome. (b) Amino acid changes caused by the SHANK1 variants are indicated in the diagram of the SHANK1 protein. Protein domains and amino acid numbers are indicated.
