From: History-driven population structure and asymmetric gene flow in a recovering large carnivore at the rear-edge of its European range

Fig. 3

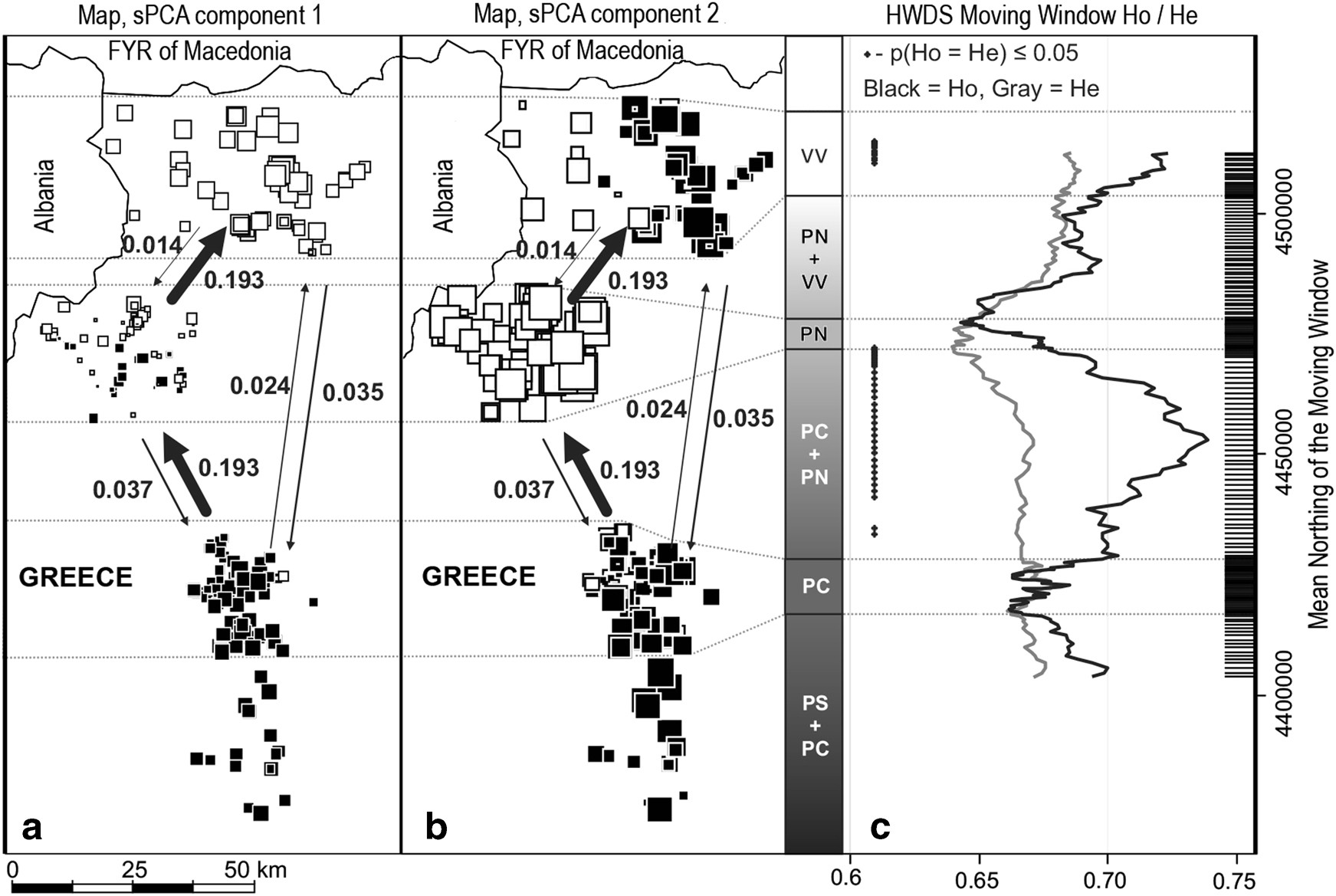

Map of sPCA scores for components 1 a and 2 b, BAYESASS gene flow estimates with direction (arrows) and the HWDS results (N s  = 30) for bear subpopulations in western Greece c. The numbers next to the arrows are gene flow estimates, and the thickness of each arrow is proportional to the estimate. The y-coordinate of each point on the HWDS graph is the mean northing coordinate of the window subsample, the density of the window subsamples corresponds to geographic clumping of samples in all three study areas and is shown with the “rug” at the right. The dotted horizontal lines indicate the composition of window subsamples—for example, the points on the HWDS graph between the “PN” lines are from the window subsamples in which all individuals have been sampled in the North Pindos area. VV Vitsi-Varnoundas, PN North Pindos, PC Central Pindos, PS South Pindos. Two areas (e.g., VV + PN) indicate that the moving window subsamples include individuals from both areas
