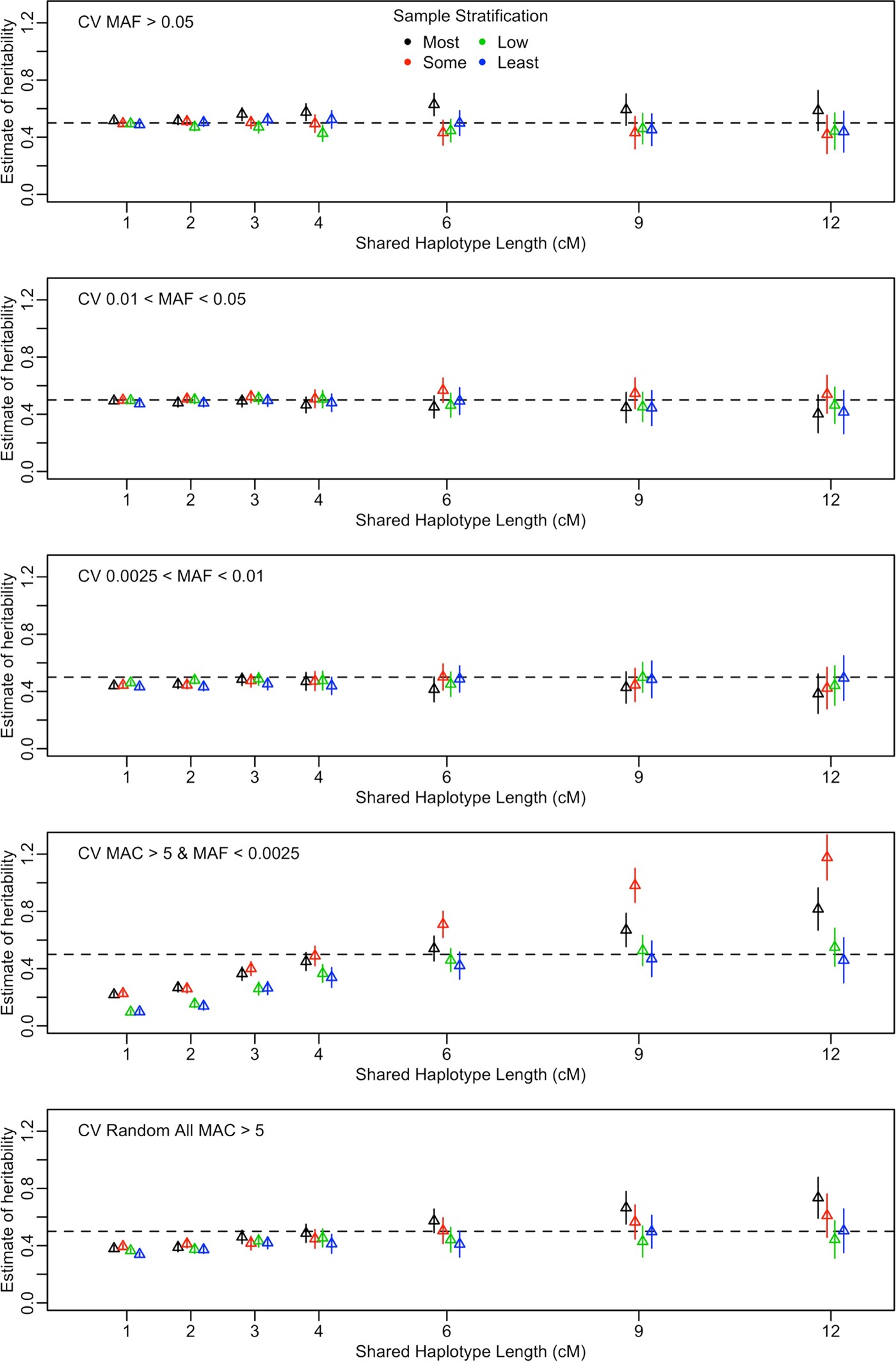

Fig. 3
From: Narrow-sense heritability estimation of complex traits using identity-by-descent information
GREML-LDMS + IBD model. This model had 13 components, 12 LD and MAF-stratified GRMs using imputed genome-wide variants, and one GRM from IBD-shared haplotypes. Total h2 estimates are shown (mean ± 95% CI from 400 replicates). X axis indicates the different IBD-shared haplotype length thresholds for the IBD-GRM. Phenotypes with 1000 CVs randomly drawn from the MAF range specified in each panel. Different colors indicate degree of stratification in the sample. Relatedness cutoff of 0.05 used
