From: Complex fine-scale spatial genetic structure in Epidendrum rhopalostele: an epiphytic orchid

Fig. 3

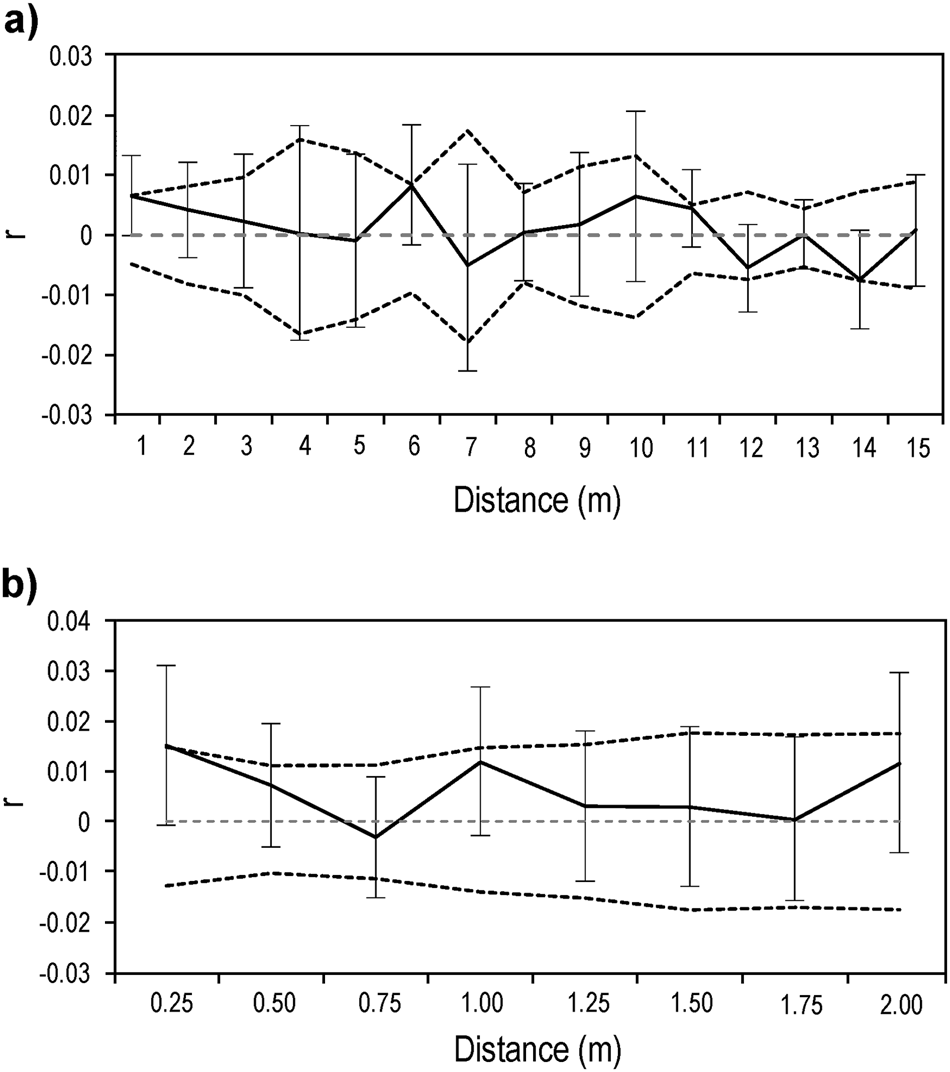

Spatial genetic structure of 216 Epidendrum rhopalostele individuals located on 21 trees at two levels (a forest and b tree). Autocorrelograms are based on geographic distance classes of equal size: 1 m for forest level, and 0.25 m for tree level. Dashed lines represent the 95% confidence interval about the null hypothesis of r = 0 as determined by a permutation test; error bars represent 95% confidence intervals about r derived from bootstrapping
