Fig. 4
From: Genetic and environmental variation in transcriptional expression of seminal fluid proteins

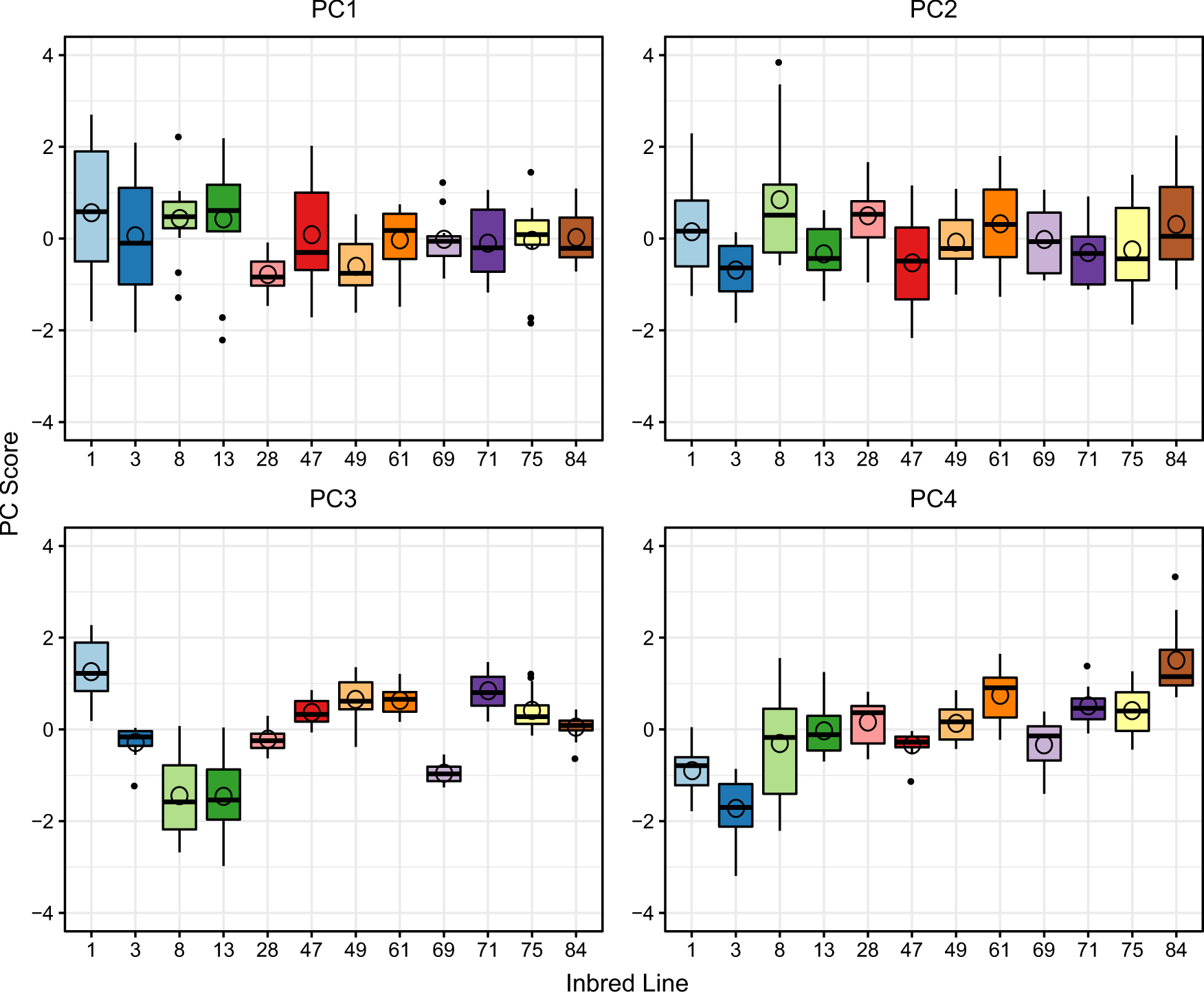

Genotype (inbred line) effects on the first four principal components capturing variation in seminal fluid transcript expression in M. lignano. Figures show box plots of PC scores against inbred lines for PC1−PC4. Mating group sizes (pair and octet) were pooled. The open circles represent the mean values. The boxes represent the values between the 25th and 75th percentiles, the line whiskers represent values that are 1.5 times the interquartile range
