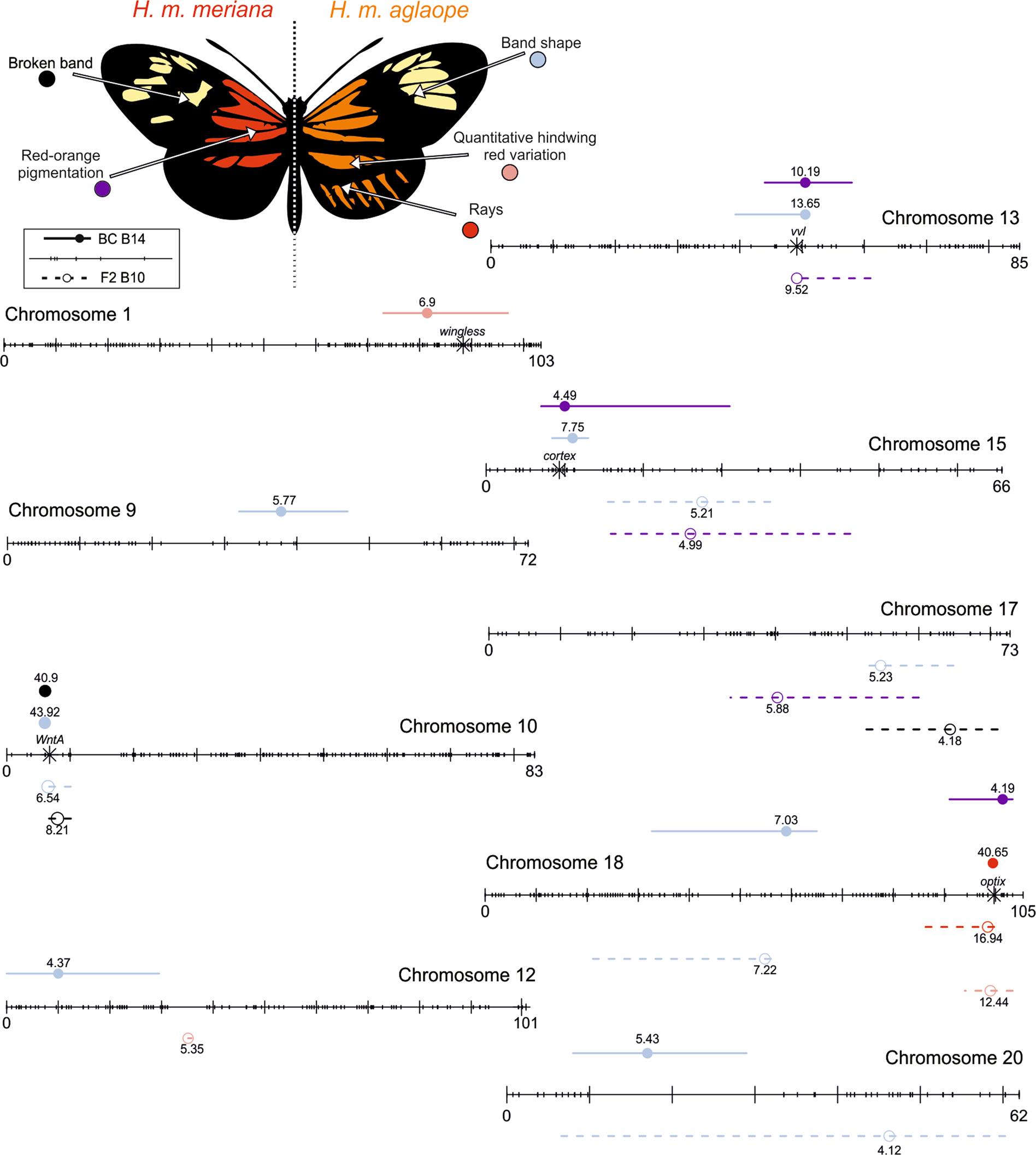

Fig. 7
The locations of QTL found in each chromosome from across all analyses. QTL are colour coded by phenotype as shown by the composite of H. m. meriana and H. m. aglaope. Markers across the chromosomes are indicated with short tick marks. Large tick marks show 10 cM intervals. The closest marker in the linkage map to each known colour pattern gene (aristaless, WntA, vvl, cortex and optix) is indicated by an asterisk. The location of the LOD peak at each QTL is indicated by circle with the LOD value given next to it. 95% Bayesian credible intervals are indicated with lines either side of the LOD peak. F2 Family B10 QTL are shown below each chromosome with dashed lines and open circles, backcross B14 QTL are shown above each chromosome with closed circles and solid lines
