Fig. 4: Expression profiles of CYS in Bombyx mori. | Heredity

Fig. 4: Expression profiles of CYS in Bombyx mori.

From: Horizontally acquired cysteine synthase genes undergo functional divergence in lepidopteran herbivores

Fig. 4

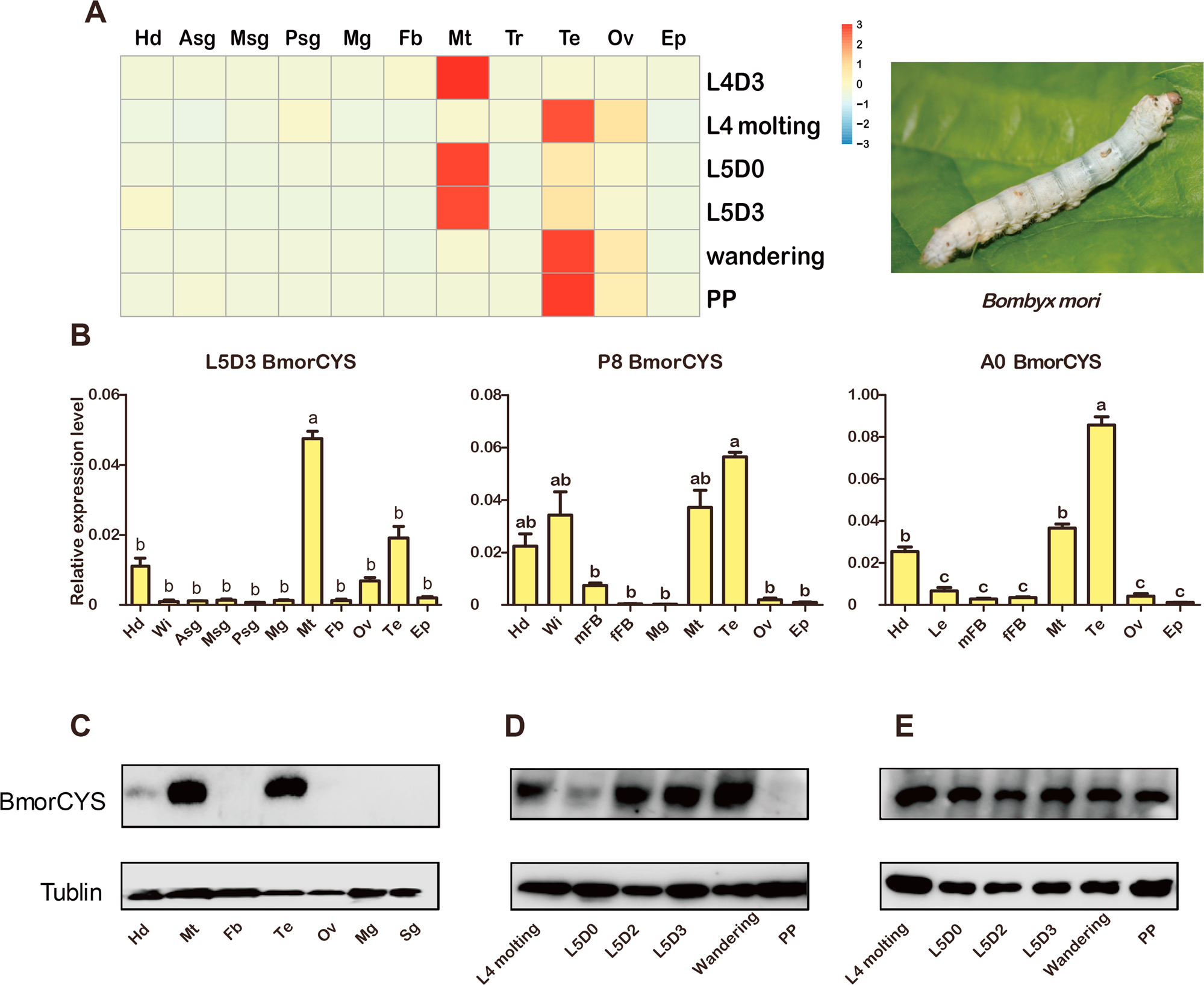

A Heat map for expression patterns of CYS gene in different stages and tissues of B. mori. B qRT-PCR assays of BmorCYS. C Protein expression analysis of BmorCYS in different tissues of L5D3 larvae. D Protein expression analysis of BmorCYS in Malpighian tubule. E Protein expression analysis of BmorCYS in testis. L4D3 day 3 of fourth-instar larvae, L4 molting fourth larval molting, L5D0 newly emerged fifth-instar larvae, L5D3 day 3 of fifth-instar larvae, PP pre-pupa, Ep epidermis, Mt Malpighian tubule, mFb male fat body, fFb female fat body, Ov ovary, Te testis, Mg midgut, Sg silk gland, Asg anterior silk gland, Msg middle silk gland, Psg posterior silk gland, Wi wing disc, Hd head, Tr Trachea.
