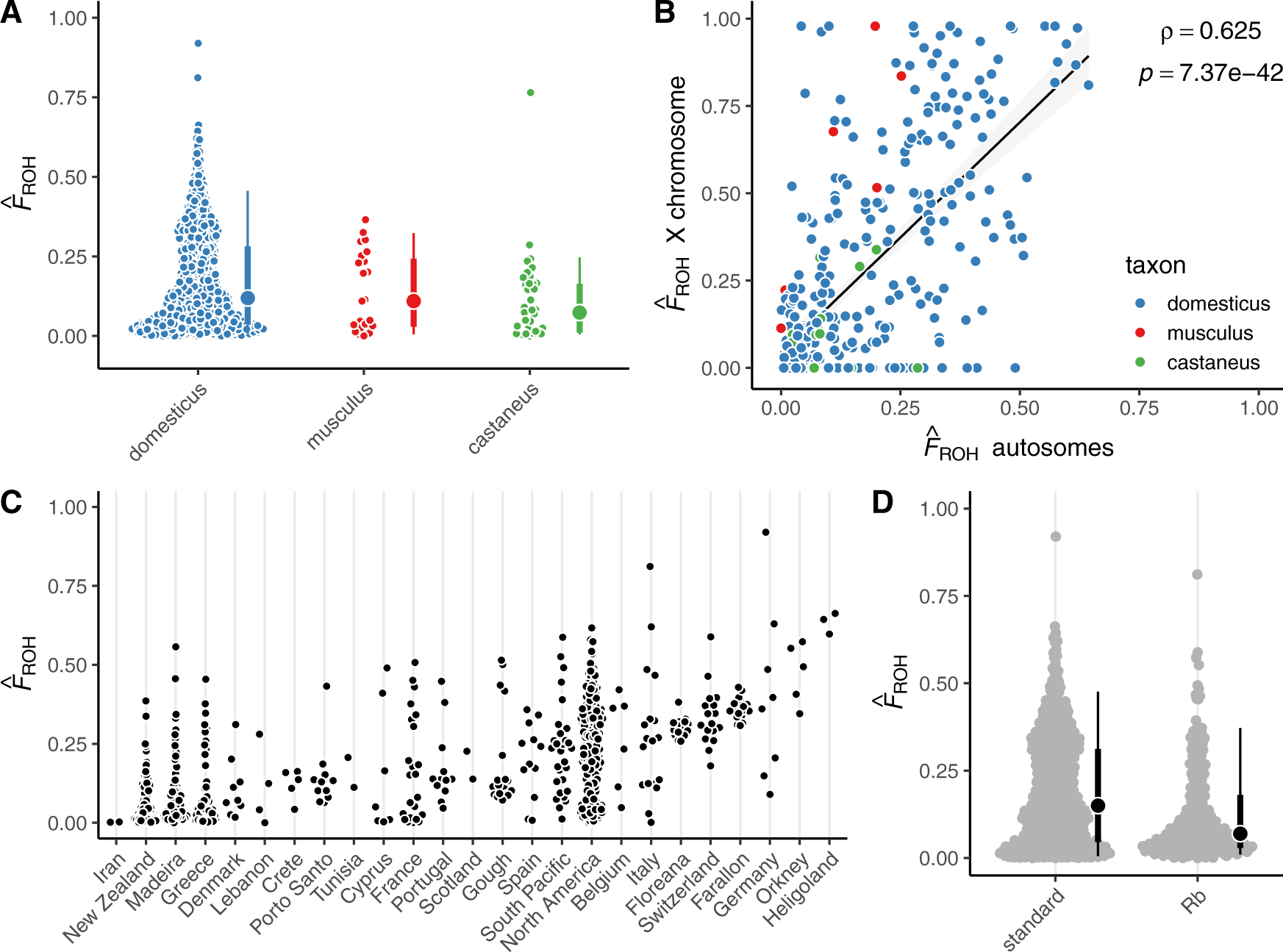

Fig. 6: Inbreeding across mouse subspecies and populations.
From: Population structure and inbreeding in wild house mice (Mus musculus) at different geographic scales
A Inbreeding coefficients estimated from autosomal genotypes, by nominal subspecies of origin. Open dot, median; thick bar, interquartile range; thin bar, 5th–95th percentiles. B Autosomal vs X chromosome inbreeding coefficients for 374 female mice. Black line, linear regression through all points; gray band, 95% confidence region. Spearman's (rank) correlation and corresponding p value shown in the upper right. C Inbreeding coefficients by population within M. m. domesticus. Populations are sorted by mean \({\hat{F}}_{{{{\rm{ROH}}}}}\). D Comparison of inbreeding coefficients in M. m. domesticus with standard vs Robertsonian (Rb) karyotypes.
