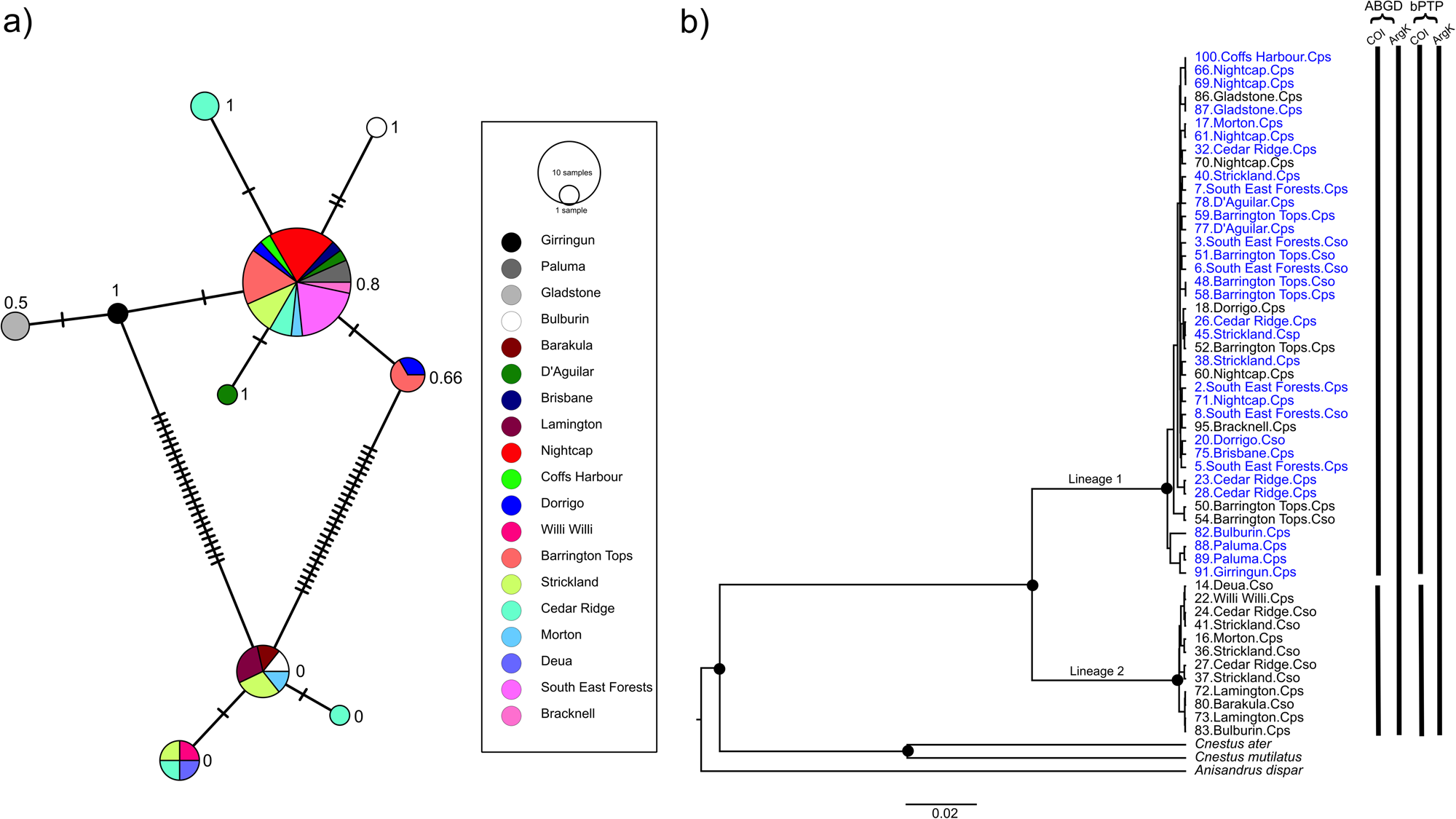

Fig. 2: Mitochondrial haplotype and phylogenetic analyses of Australian populations of Cnestus solidus spanning their distribution in eastern Australia.
From: Two sympatric lineages of Australian Cnestus solidus share Ambrosiella symbionts but not Wolbachia
a Minimum spanning network analysis of the cytochrome oxidase I gene fragments of Cnestus individuals collected throughout eastern Australia. Dashes on network branches indicate individual nucleotide substitutions between haplotypes and the size of the circles is proportional to the number of samples within each haplotype. Lineage 1 haplotypes are on top and lineage 2 haplotypes on the bottom of the network. Relative proportions of Wolbachia infections identified using wsp are given next to the circles. b Phylogenetic tree of the concatenated cytochrome oxidase I (COI) and arginine kinase (ArgK) gene fragments of Cnestus individuals collected across eastern Australia. Samples identified as C. solidus are labelled Cso, while those identified as C. pseudosolidus are labelled Cps. Wolbachia-positive individuals are represented in blue. Support is given at the nodes with black dots indicating >0.95 posterior probability and >95% bootstrap. Lineage identity of Cnestus solidus is provided on the branches. Scale bar indicates 0.02 substitutions per nucleotide position. To the right of the tips are the results of ABGD and bPTP species delimitation analyses of the COI and ArgK genes where gaps in the bars represent observed species delimitation splits for COI but not ArgK.
