Fig. 2: Change in genome-wide methylation percentage of cytosines in each context for nests between being alive and when dying. | Heredity

Fig. 2: Change in genome-wide methylation percentage of cytosines in each context for nests between being alive and when dying.

From: Exploring changes in social spider DNA methylation profiles in all cytosine contexts following infection

Fig. 2: Change in genome-wide methylation percentage of cytosines in each context for nests between being alive and when dying.

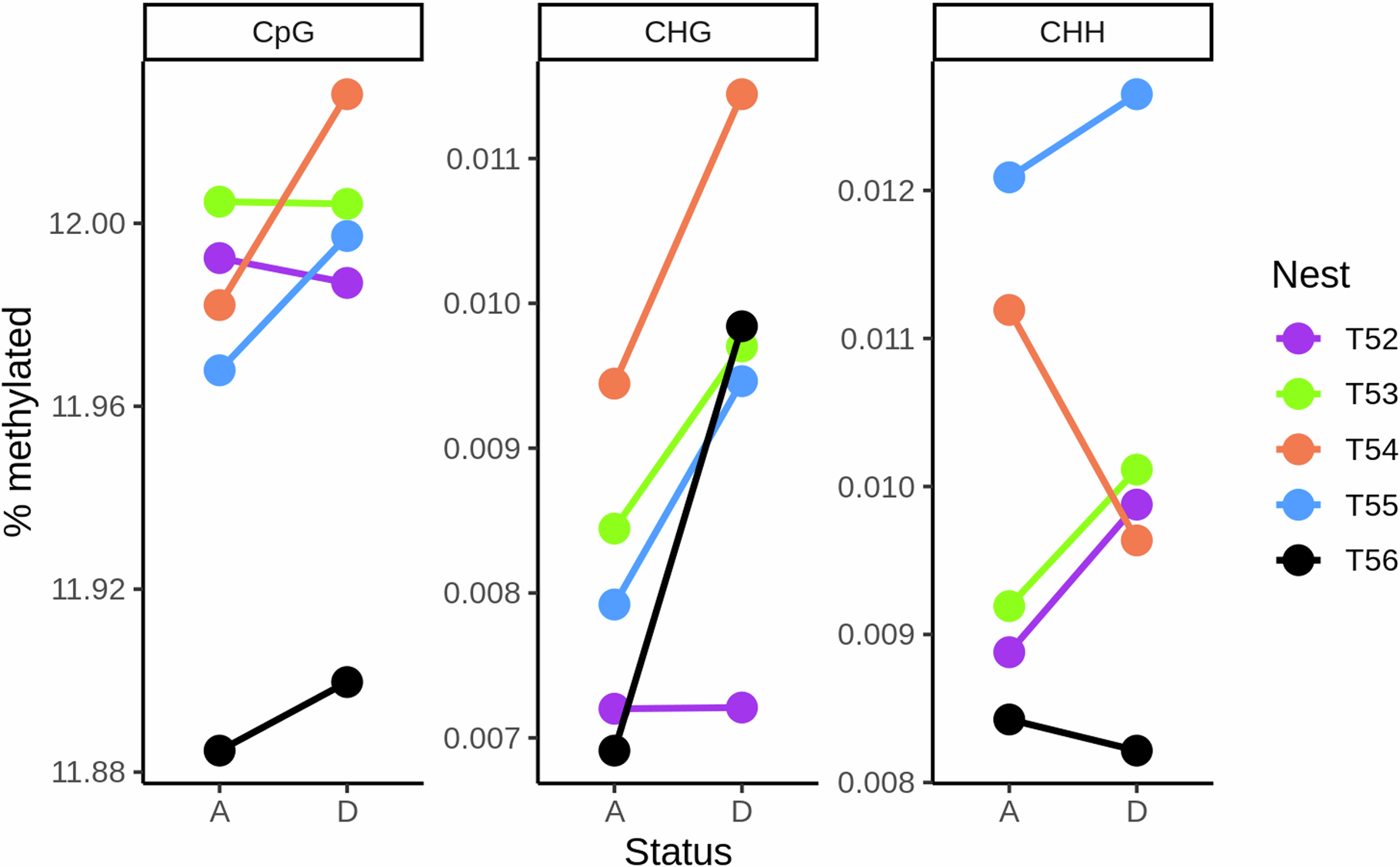

For each nest (T52-56, depicted with different colours), we show the percentage of the whole genome methylated in each of the three cytosine contexts (CpG, CHG, CHH). In each panel, we give the nests' statuses as either Alive (A), the first time point they were measured at, or Dying (D), the second time point. We link the two statuses for the same nest within one context with a solid line.
