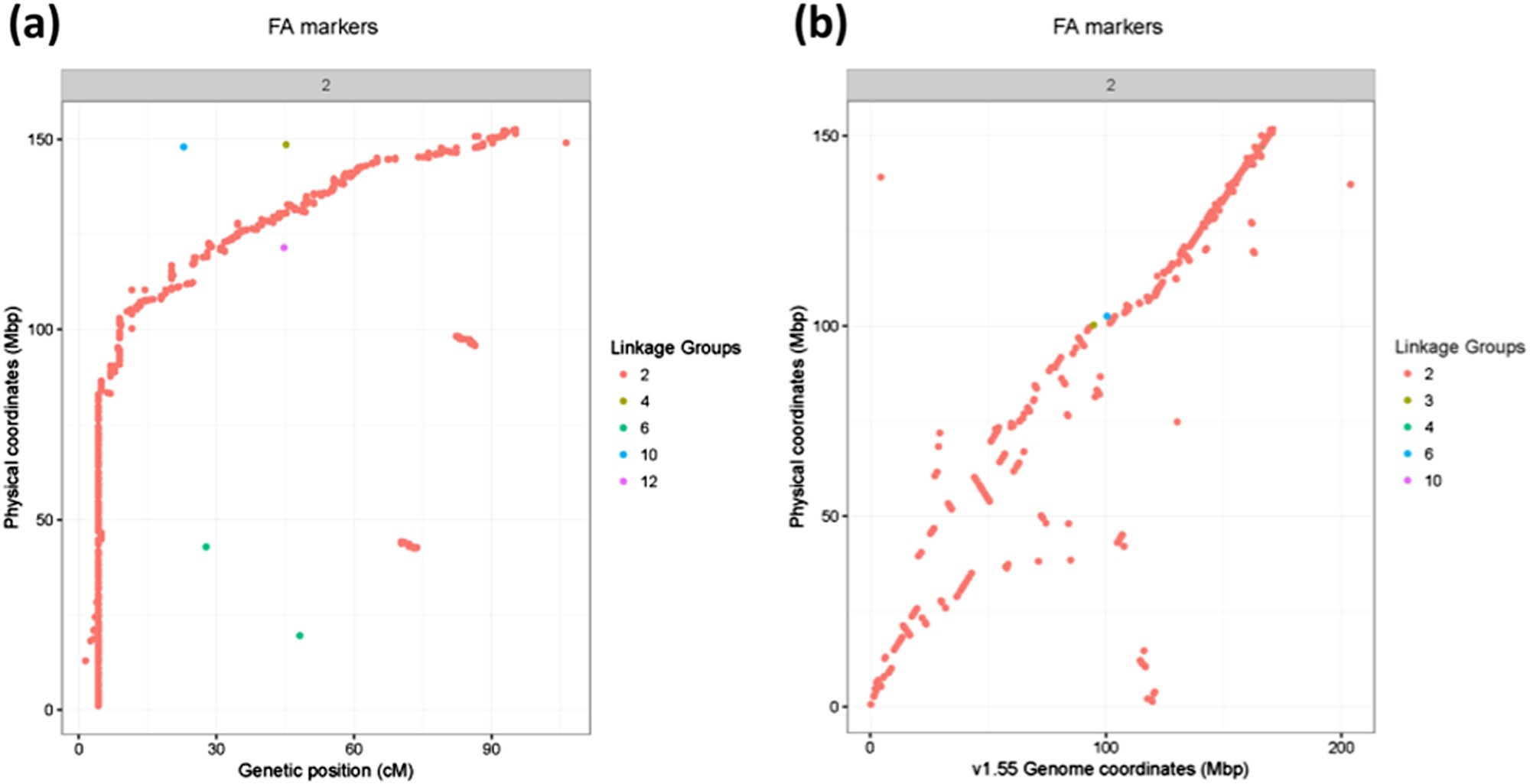

Fig. 2: Assessment of raw 10x assembly contigs compared to Hill et al.13 Capsicum frutescens × Capsicum annuum genetic map, shown for Chromosome 2.
From: Reference quality assembly of the 3.5-Gb genome of Capsicum annuum from a single linked-read library
Assembly scaffolds are ordered based on their primary linkage group, sorted in order of increasing genetic distance. Linkage group colored labels correspond to marker linkage group in Hill et al. a Genetic positions of markers (centiMorgans) are shown versus the physical position on the 10x assembly contigs (megabase pair). b Physical position on the 10x assembly contigs (Mbp) versus physical position on the C. annuum CM334 version 1.55 assembly
