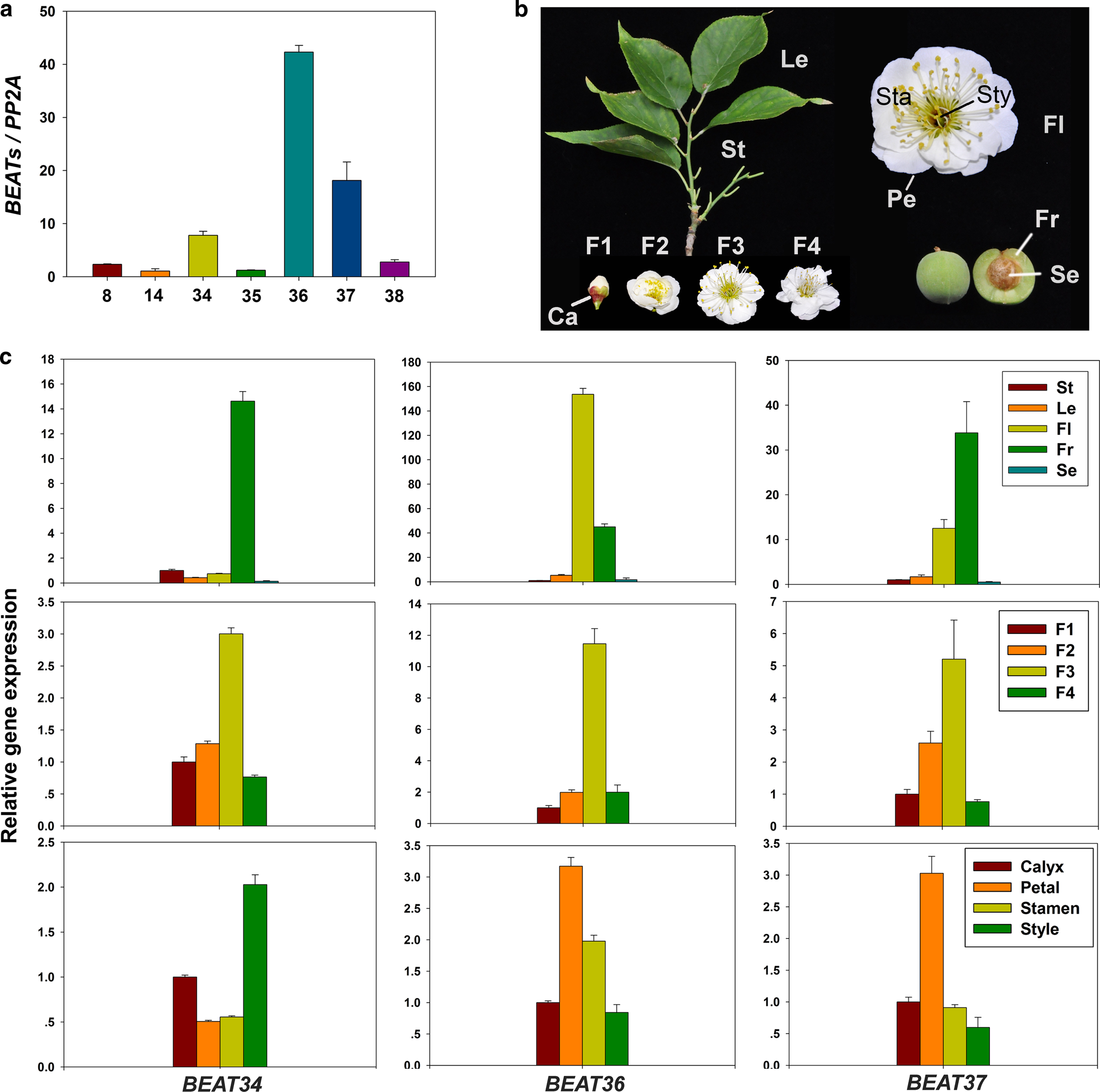

Fig. 5: Expression patterns of PmBEATs.
From: Expansion of PmBEAT genes in the Prunus mume genome induces characteristic floral scent production
a The expression levels of PmBEATs in blooming flowers determined using real-time PCR. b The plant materials used for gene expression pattern analysis. St stems, Le leaves, Fl flowers, Fr fruits, Se seeds, F1 budding phase, F2 early flowering phase, F3 blooming phase, F4 late flowering phase. A blooming flower was dissected into four different tissues, the calyx (Ca), petal (Pe), stamen (Sta) and style (Sty) to determine the gene expression. c The expression patterns of PmBEAT34, PmBEAT36 and PmBEAT37 in different organs, flowering stages and flower parts. The gene PmPP2A was used as a reference gene. The data are presented as the mean values of three replicates ± SD. Three independent experiments were performed with similar results
