Fig. 4: Paralogous gene mutations mediated by the CRISPR/Cas9 system.

From: CRISPR/Cas9-mediated multiple gene editing in Brassica oleracea var. capitata using the endogenous tRNA-processing system

Fig. 4: Paralogous gene mutations mediated by the CRISPR/Cas9 system.

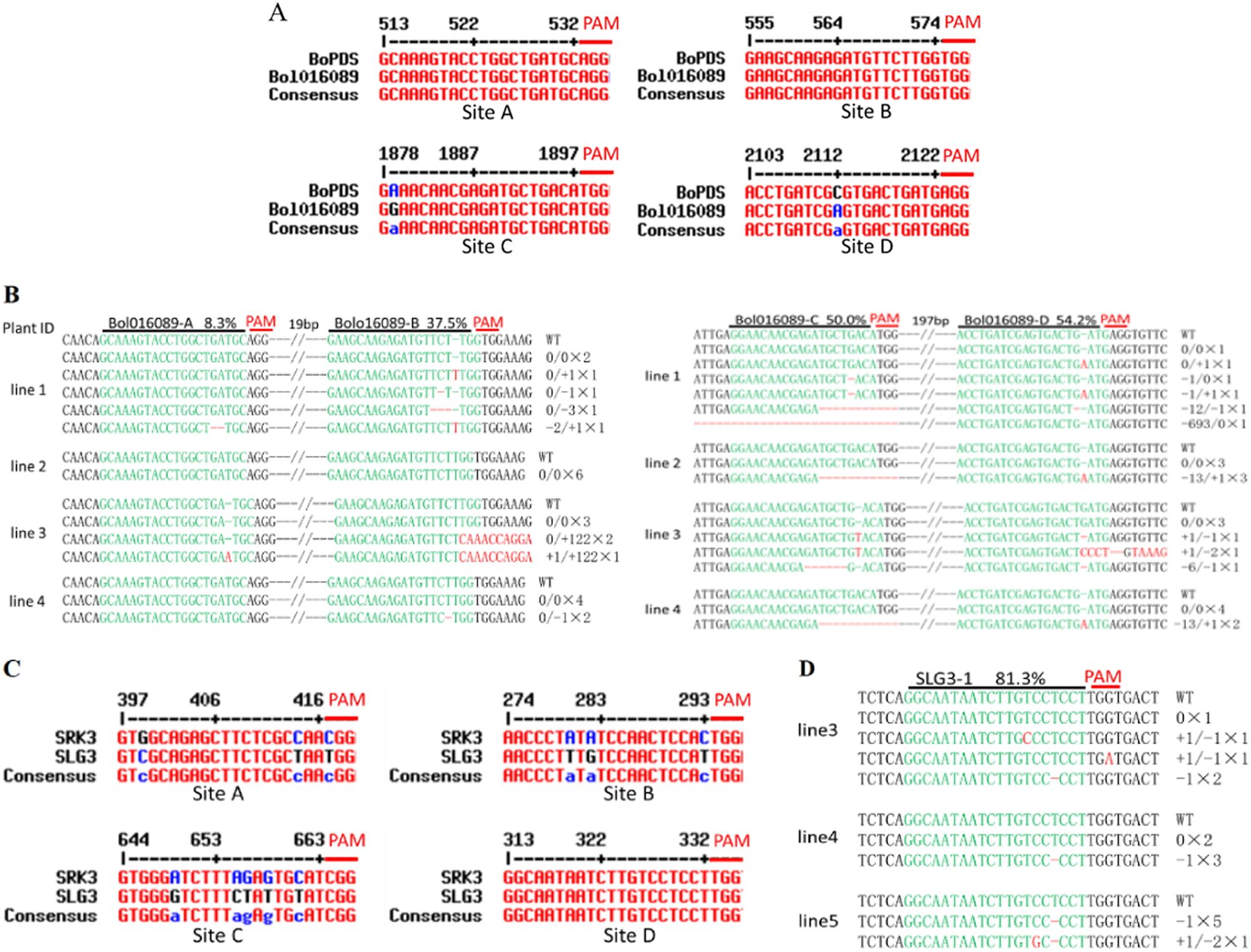

a Site A, B, C, and D sequence alignment between the Bol016089 and BoPDS genes. b Summary of the mutation types and frequencies at sites A–D in the Bol016089 gene. c Sites A, B, C, and D sequence alignment between the BoSLG3 gene (X79431.1) and the BoSRK3 gene. d Summary of the mutation types and frequencies at site D in the BoSLG3 gene. The number of each mutation type was used to estimate the genome editing efficiency. The target sequences are shown in green and the mutations in red
