Fig. 5: The complete sequence alignment map of 26 chloroplast genomes of Rosaceae.

From: Comparative analysis of the complete chloroplast genome among Prunus mume, P. armeniaca, and P. salicina

Fig. 5

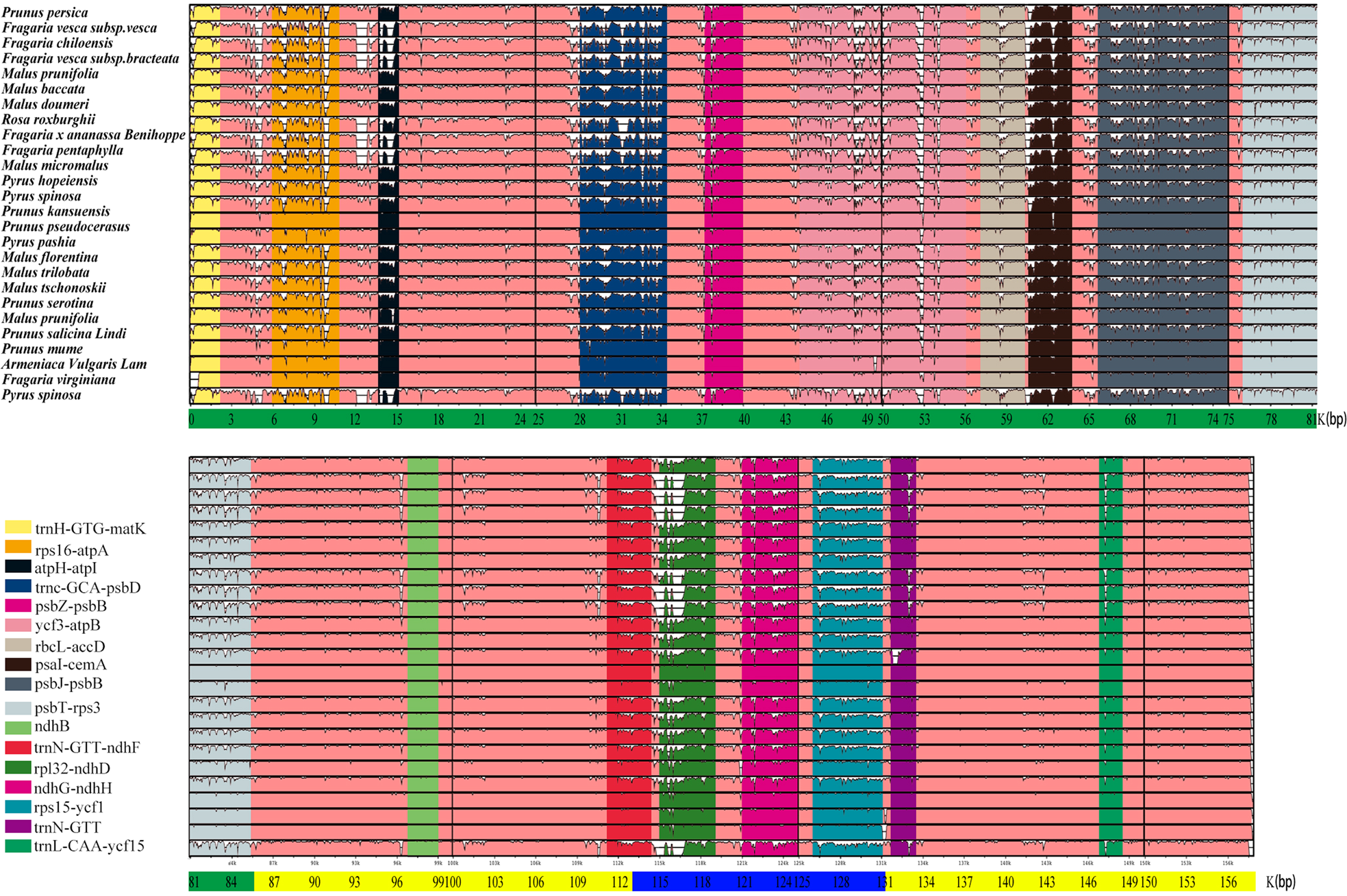

The vertical axis indicates sequence alignment similarity of 50–100%. The green color indicates the chloroplast genome LSC region, the yellow color the chloroplast genome IR region, and the blue color the SSC region. Notes: First grade: rps16-atpA, atpH-atpI, trnc-GCA-psbD, ycf3-atpB, and rpL32-ndhD. Second grade: trnH-GTG-matK, PsbZ-PsbB, rbcL-accD, psaI-cemA, psbJ-psbB, psbT-rps3, ndhG-ndhH, and rps15-ycf1. Third grade: trnL-CAT-ycf15, trnN-GTT, trnR-GTT-ndhF, and ndhB
