Fig. 6: Schematic representation of phosphoprotein or acetylproteins involved in photosynthesis. | Horticulture Research

Fig. 6: Schematic representation of phosphoprotein or acetylproteins involved in photosynthesis.

From: New insights into the heat responses of grape leaves via combined phosphoproteomic and acetylproteomic analyses

Fig. 6

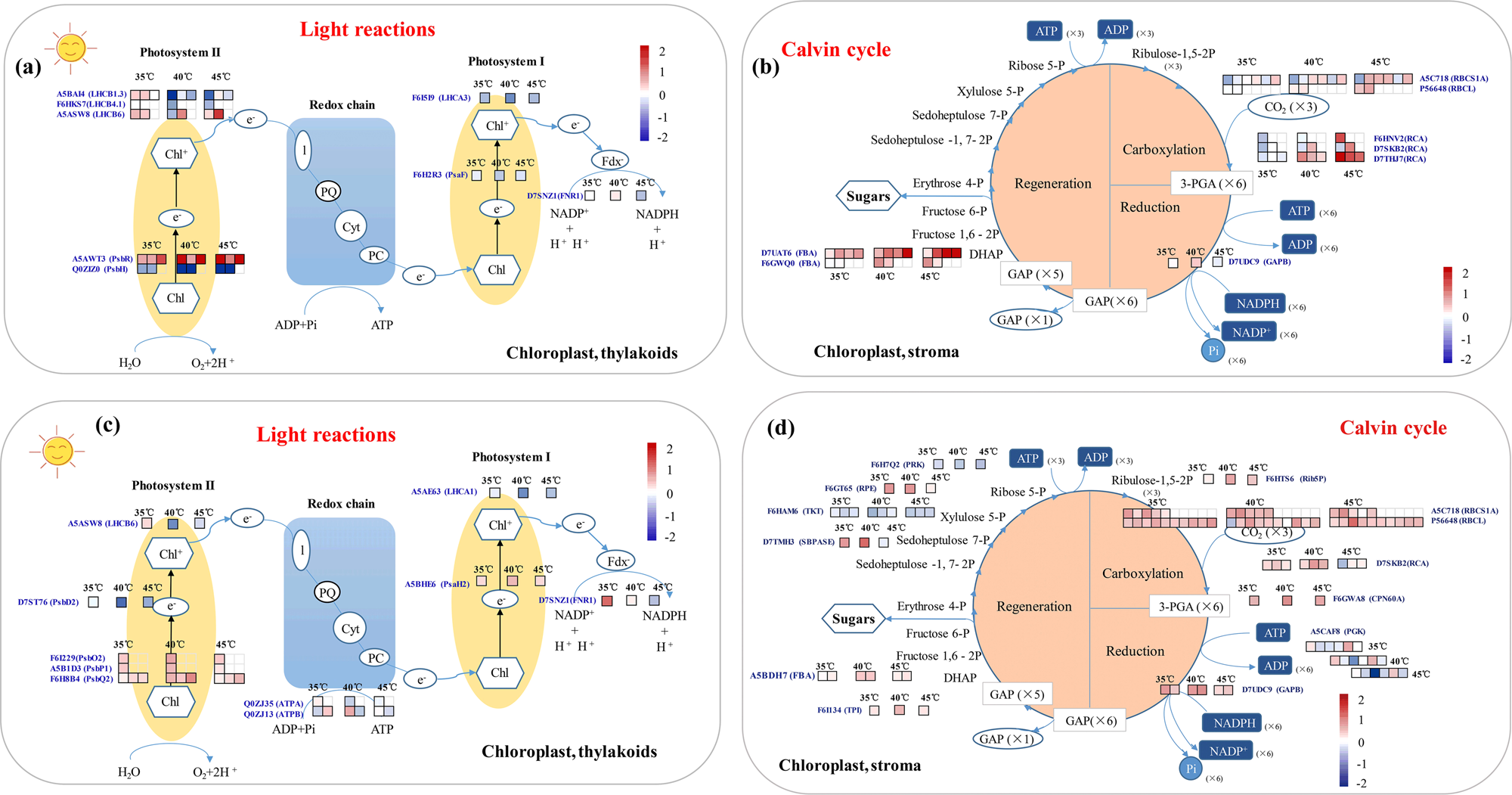

Changes in phosphorylation levels (a) and acetylation levels (c) of proteins related to the light reactions of photosynthesis at 35 °C, 40 °C, and 45 °C in grape leaves. Changes in phosphorylation levels (b) and acetylation levels (d) of proteins related to the Calvin cycle of photosynthesis at 35 °C, 40 °C, and 45 °C
