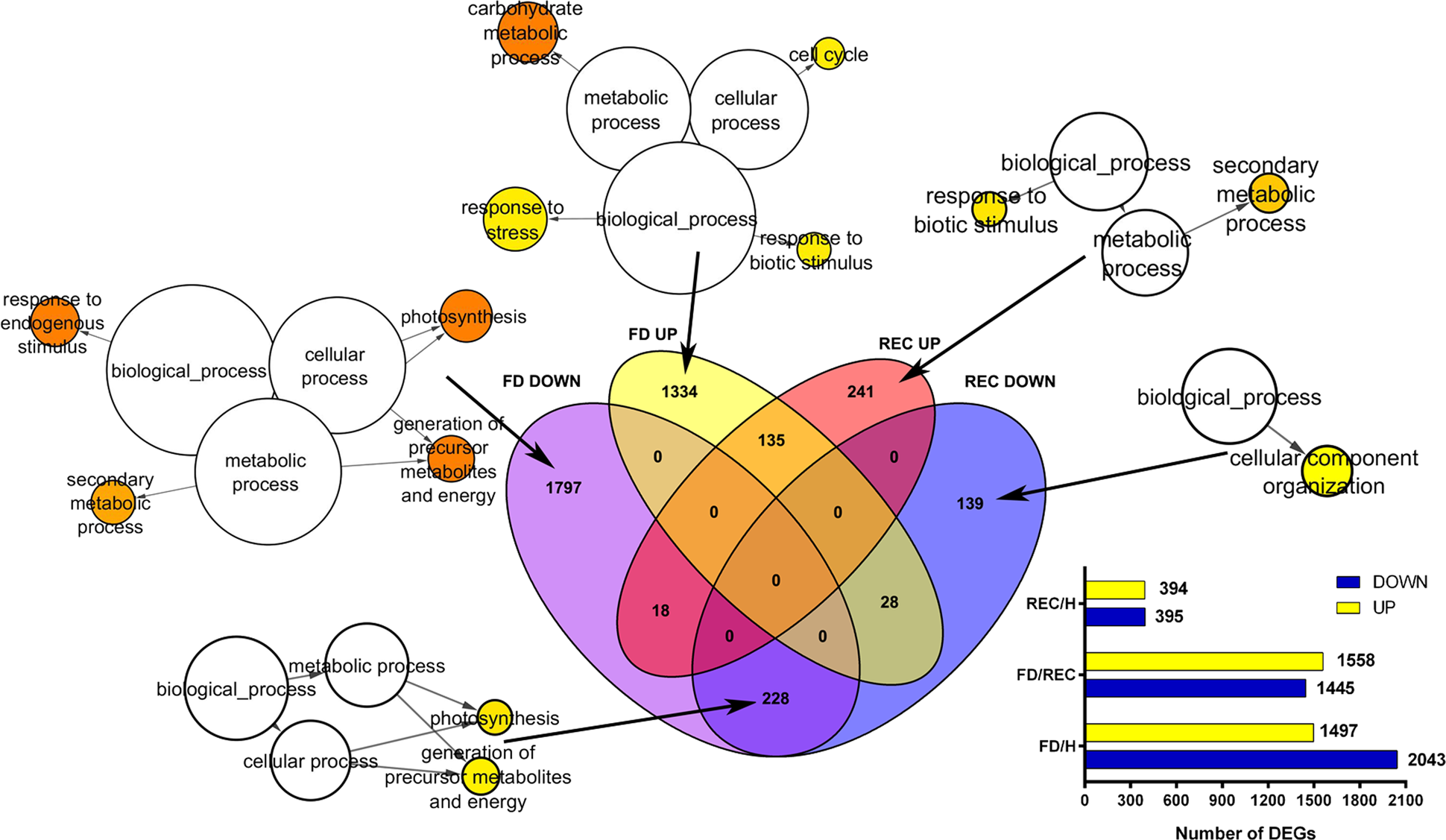

Fig. 1: Transcriptome analysis of FDp-infected (FD) and recovered (REC) samples.
From: Molecular memory of Flavescence dorée phytoplasma in recovering grapevines
The Venn diagrams in the middle of the figure report the number of either exclusive or common upregulated and downregulated genes resulting by merging RNAseq data of the FD vs healthy (H) comparison with those of the REC vs H comparison. When significant, the enrichment of specific GO biological process terms is shown for each group of DEGs from the Venn charts. The significant enriched GO biological functional categories were retrieved using Cytoscape with the BINGO plug-in and listed according to their enrichment P‐value (P < 0.05). The total numbers of up and down differentially expressed genes (DEG) are visualised for each RNAseq comparison in the bar charts displayed right in the bottom
