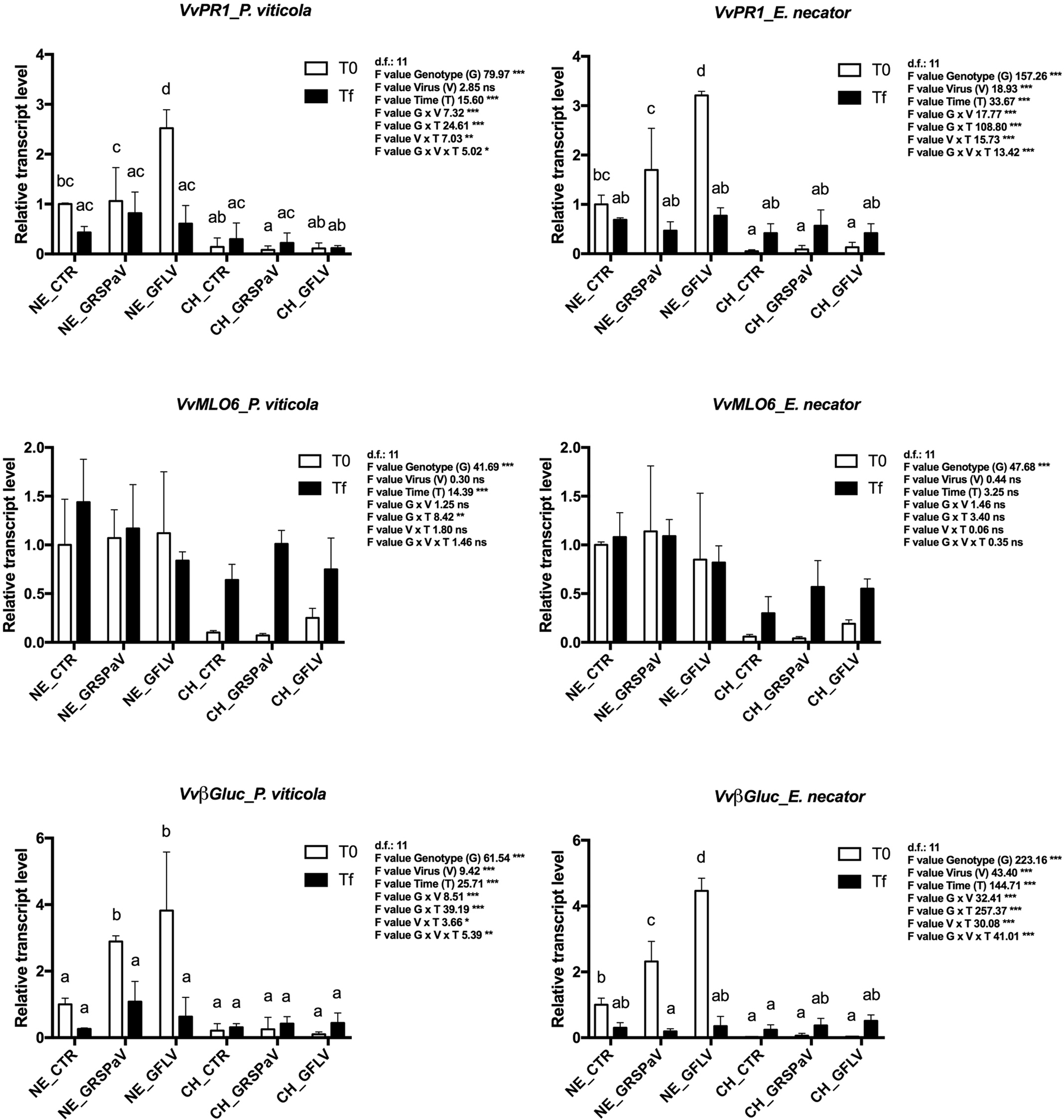

Fig. 2: Relative expression levels of VvPR1 (VIT_03s0088g00700), VvB gluc (VIT_08s0007g06060), and VvMLO6 (VIT_08s0040g02170) measured by quantitative reverse transcription-polymerase chain reaction (RT-qPCR).

From: Biological and molecular interplay between two viruses and powdery and downy mildews in two grapevine cultivars

Fig. 2

Samples were collected before inoculation with P. viticola or E. necator (T0) and at the end of experiments (Tf). RT-qPCR signals were normalized to VvAct and VvUBI transcripts. NE_CTR, CH_CTR: virus-free plants; NE_GRSPaV, CH_GRSPaV: GRSPaV-infected plants; NE_GFLV, CH_GFLV: GFLV-infected plants. Data are presented as the mean ± standard deviation (SD) (n = 3). Lowercase letters denote significant differences attested by Tukey’s honestly significant difference (HSD) test (p ≤ 0.05)
