Fig. 3: Tissue-specific expression and subcellular localization of ZbAGL11.

From: ZbAGL11, a class D MADS-box transcription factor of Zanthoxylum bungeanum, is involved in sporophytic apomixis

Fig. 3: Tissue-specific expression and subcellular localization of ZbAGL11.

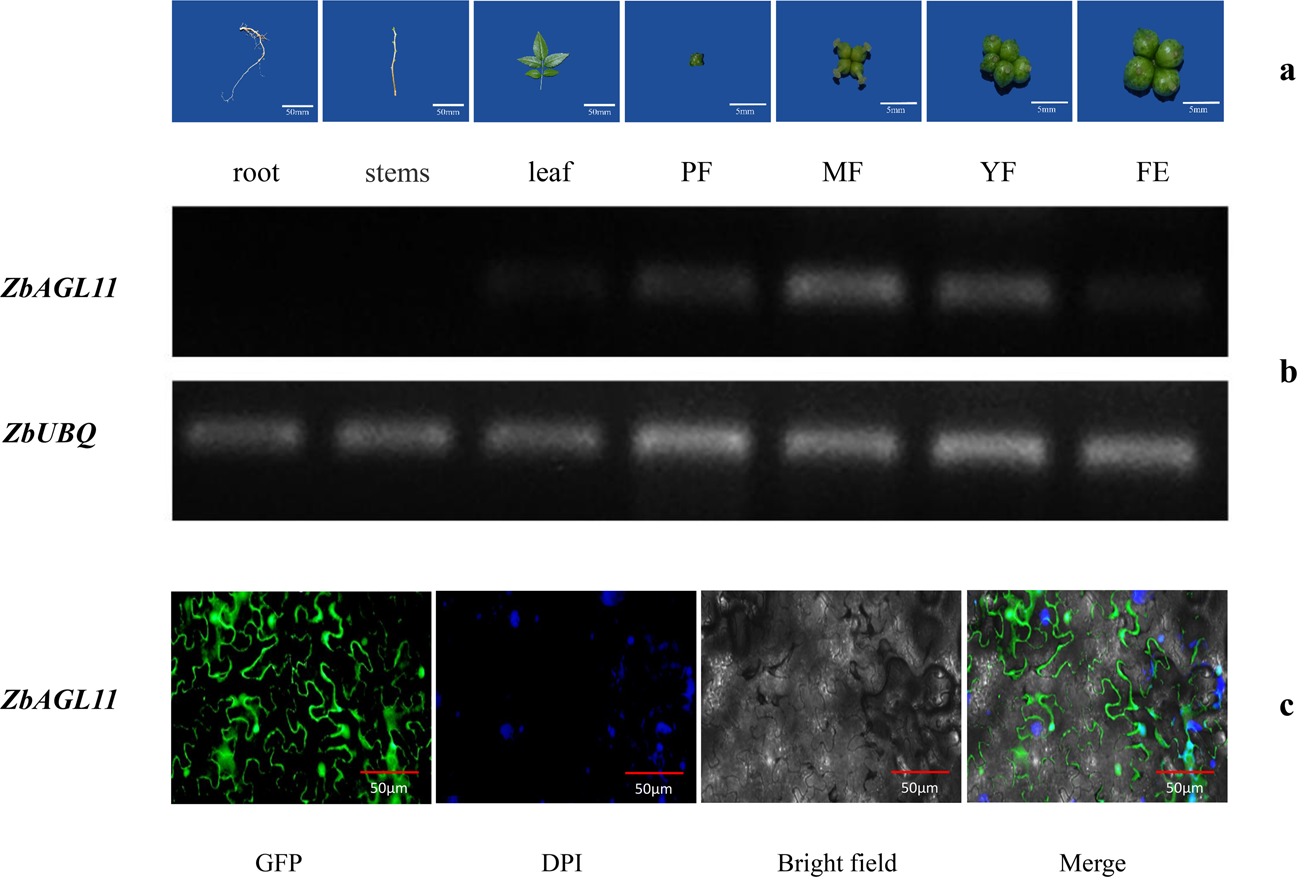

a Different tissues of Zanthoxylum bungeanum and different stages of fruit development. PF preflowering, MF midflowering, 3 days after flowering, YF young fruit, 7 days after flowering, FE fruit expansion, 15 days after flowering. b Tissue-specific expression of ZbAGL11. c Subcellular localization of ZbAGL11
