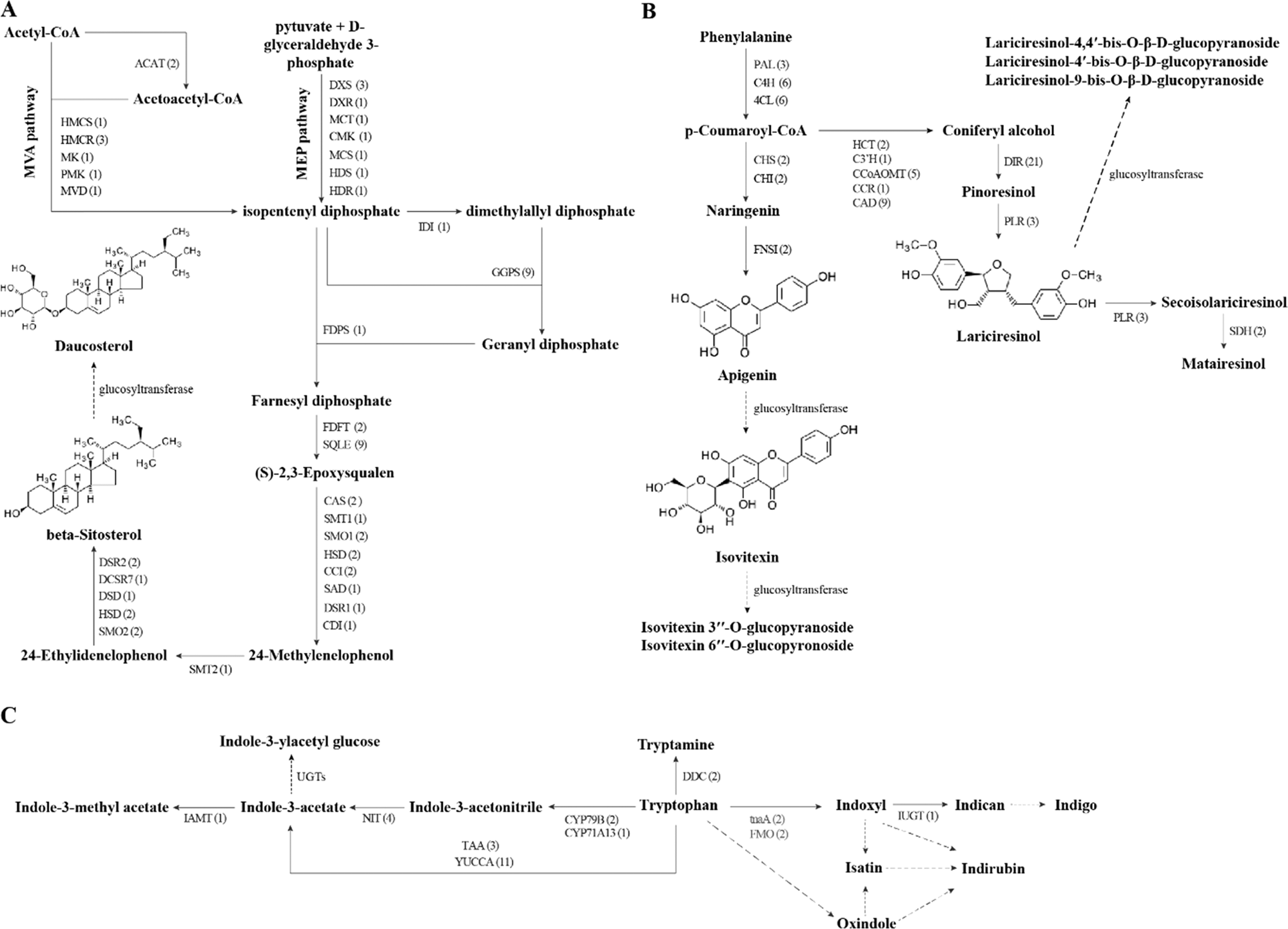

Fig. 3: Putative biosynthetic pathways of three main class active compounds in I. indigotica.

The putative biosynthetic pathways of terpenoids (a), phenylpropanoids (b), and indole alkaloids (c) of active compounds in I. indigotica. Values within brackets indicate the numbers of gene copies corresponding to the catalytic genes in the pathways
