Fig. 2: Schematic representations of the predicted regulatory elements and the conserved motifs in the CaNHL family.

From: Genome-wide analysis of NDR1/HIN1-like genes in pepper (Capsicum annuum L.) and functional characterization of CaNHL4 under biotic and abiotic stresses

Fig. 2: Schematic representations of the predicted regulatory elements and the conserved motifs in the CaNHL family.

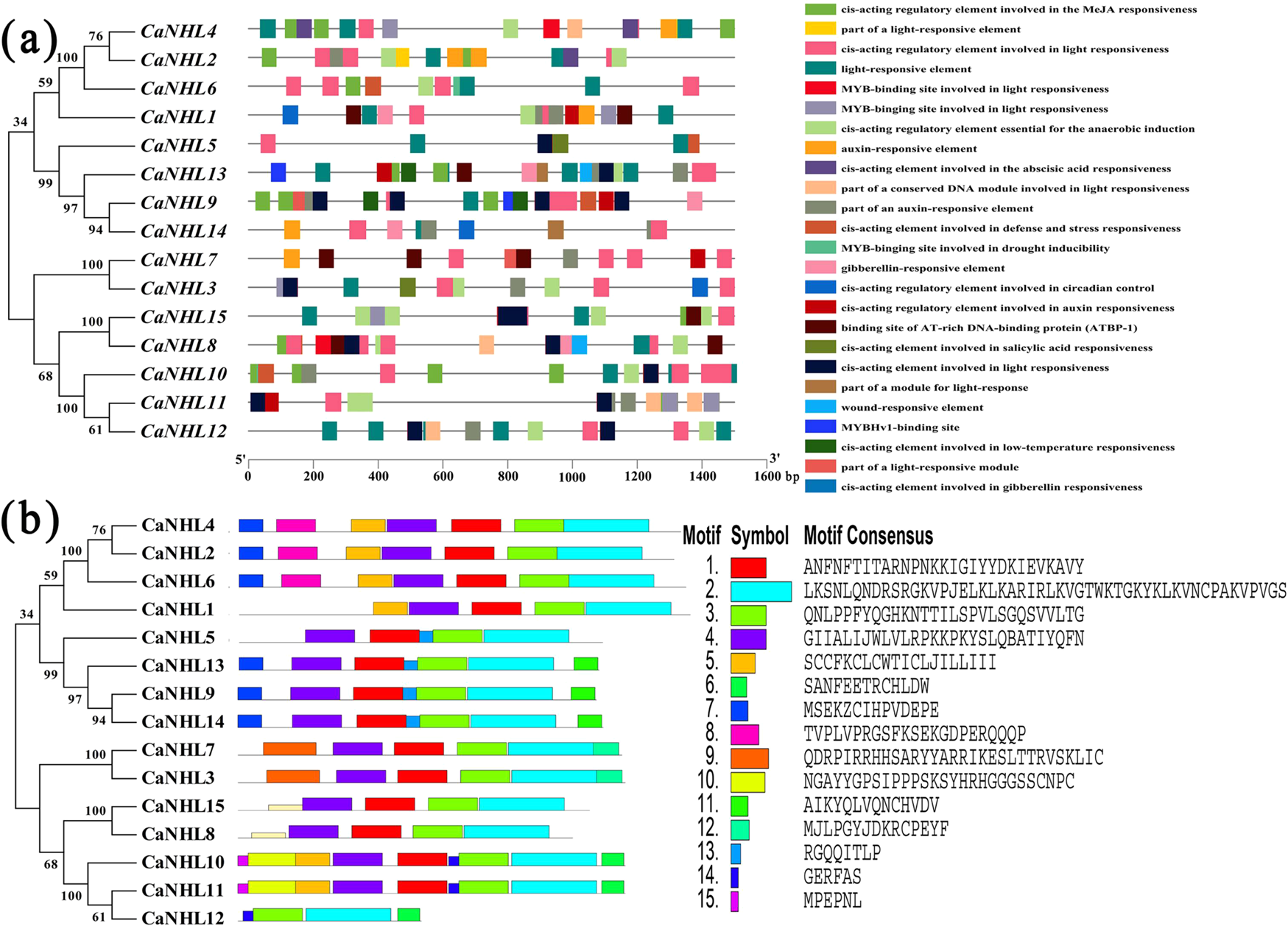

a Schematic illustration of the predicted regulatory elements in the promoter regions of CaNHLs by PlantCare. Each regulatory element is marked with a different color. b Schematic representation of the conserved motifs predicted in the CaNHL proteins. MEME was used to predict the conserved motifs, and TBtools was used to display the results.
