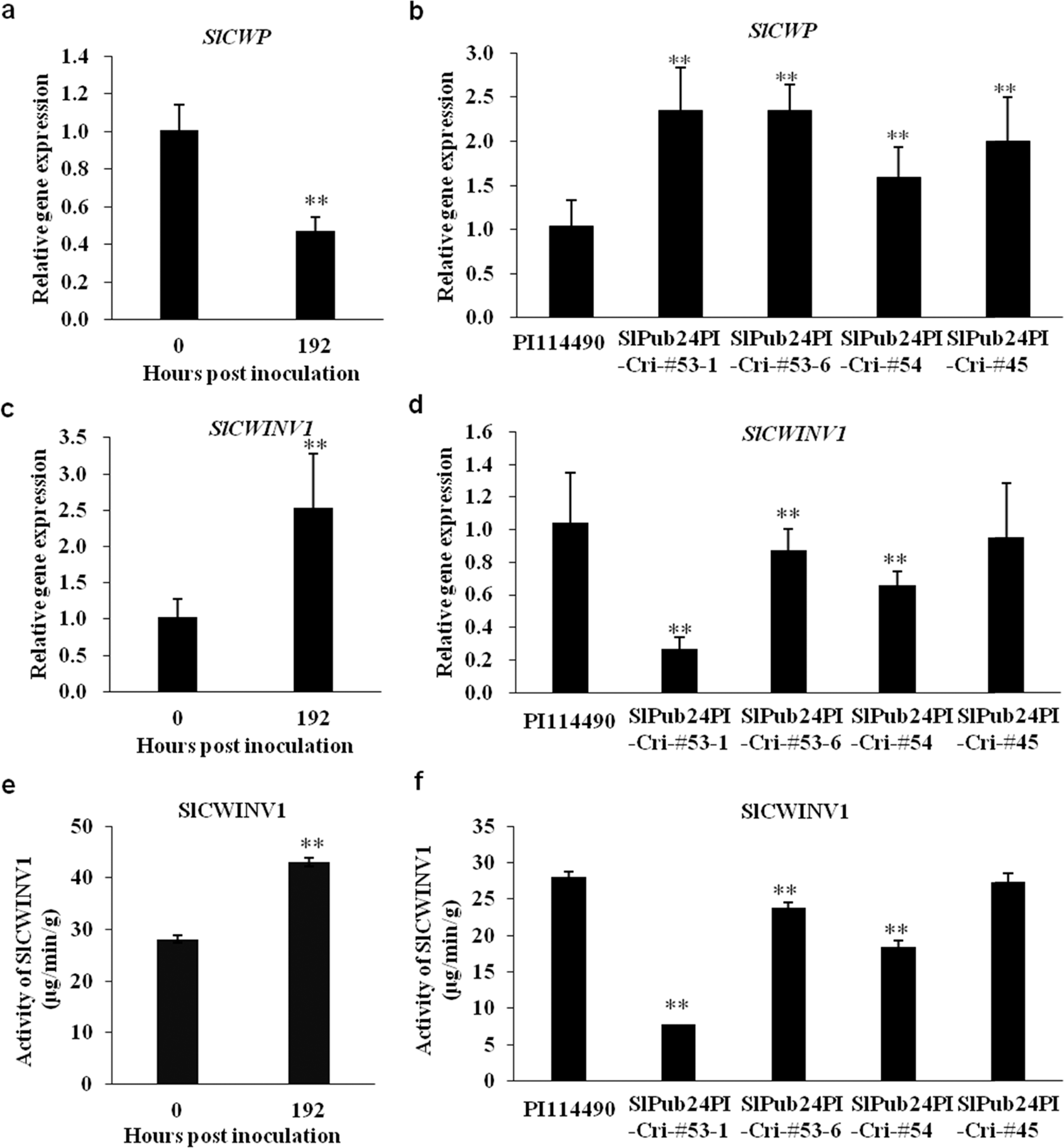

Fig. 8: Relative expression of SlCWP and SlCWINV1 as well as enzyme activity of SlCWINV1 in leaves of plants after inoculation with Xanthomonas euvesicatoria pv. perforans race T3 strain Xv829.
From: Tomato SlPUB24 enhances resistance to Xanthomonas euvesicatoria pv. perforans race T3
a Relative expression of SlCWP in PI 114490 at 0 and 192 h post inoculation (hpi). b Relative expression of SlCWP in PI 114490 and Slpub24 mutants generated by CRISPR/Cas9 editing at 192 hpi. c Relative expression of SlCWINV1 in PI 114490 at 0 and 192 hpi. d Relative expression of SlCWINV1 in PI 114490 and Slpub24 mutants generated by CRISPR/Cas9 editing at 192 hpi. e Activity of SlCWINV1 in PI 114490 at 0 and 192 hpi. f Activity of SlCWINV1 in PI 114490 and Slpub24 mutants generated by CRISPR/Cas9 editing at 192 hpi. Error bars represent the SD (n = 3)
