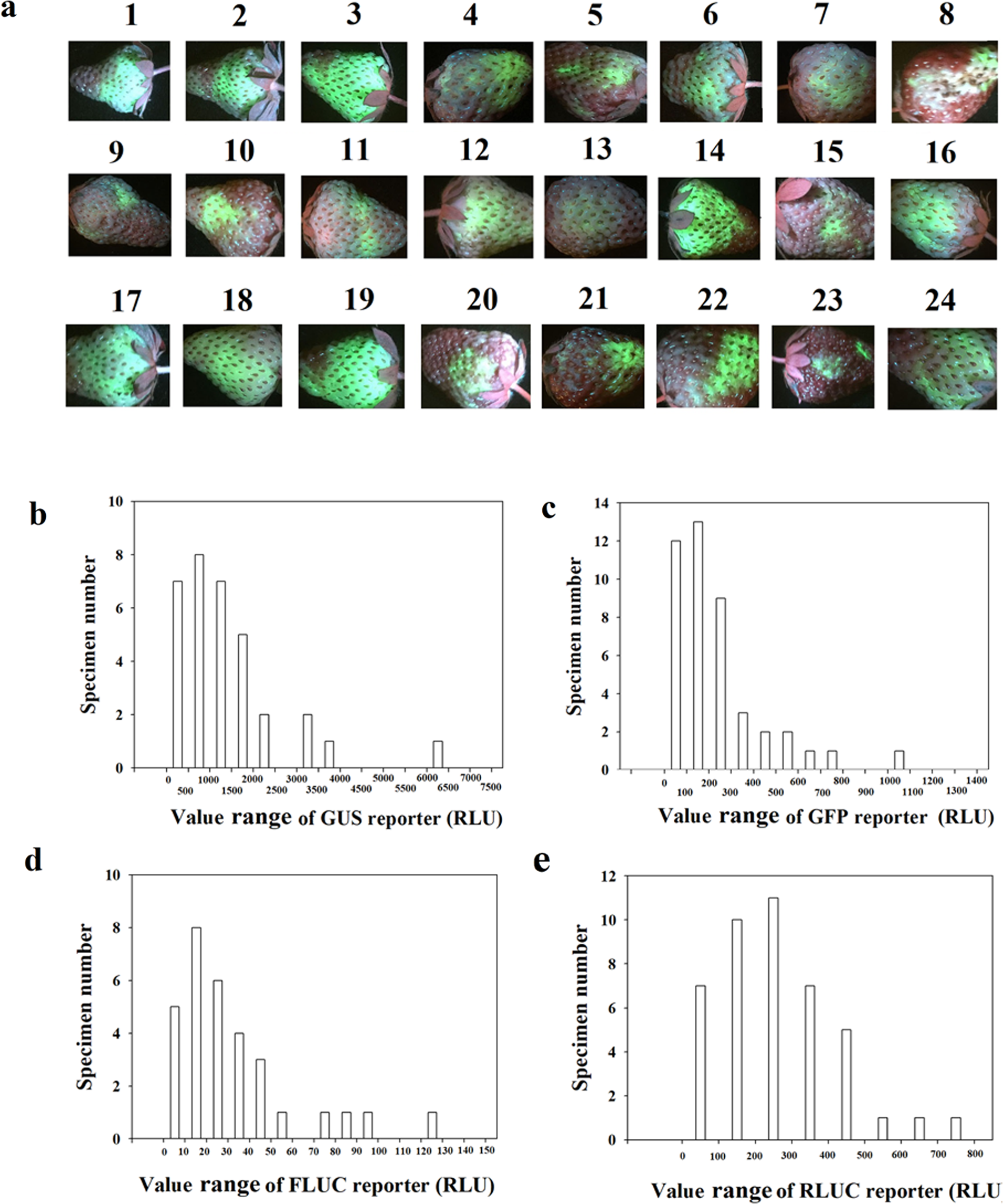

Fig. 1: Data distribution of different reporters showing the variability of each reporter.

a GFP fluorescence images showing the variability in the level of GFP protein among individual fruits with a sample size of 24. The number above each image denotes a random order in the sample. b–e Quantitative determination of the activity of different reporters. For each reporter, the data distribution is shown based on a specific sample group consisting of 30 individual fruits. Fruits at the LG stage were fully injected with Agrobacterium carrying the different single reporter constructs, and on 4 days after the injection, the reporter activity was measured. The vertical coordinate denotes the number of fruits with reporter activities within each corresponding region shown in the horizontal coordinate. The values were normalized by subtracting the background signal produced by the empty vector (i.e., the negative control). b GUS; c GFP; d FLuc; d RLuc; e GFP fluorescence image. More detailed statistical parameters are shown in Table 1
