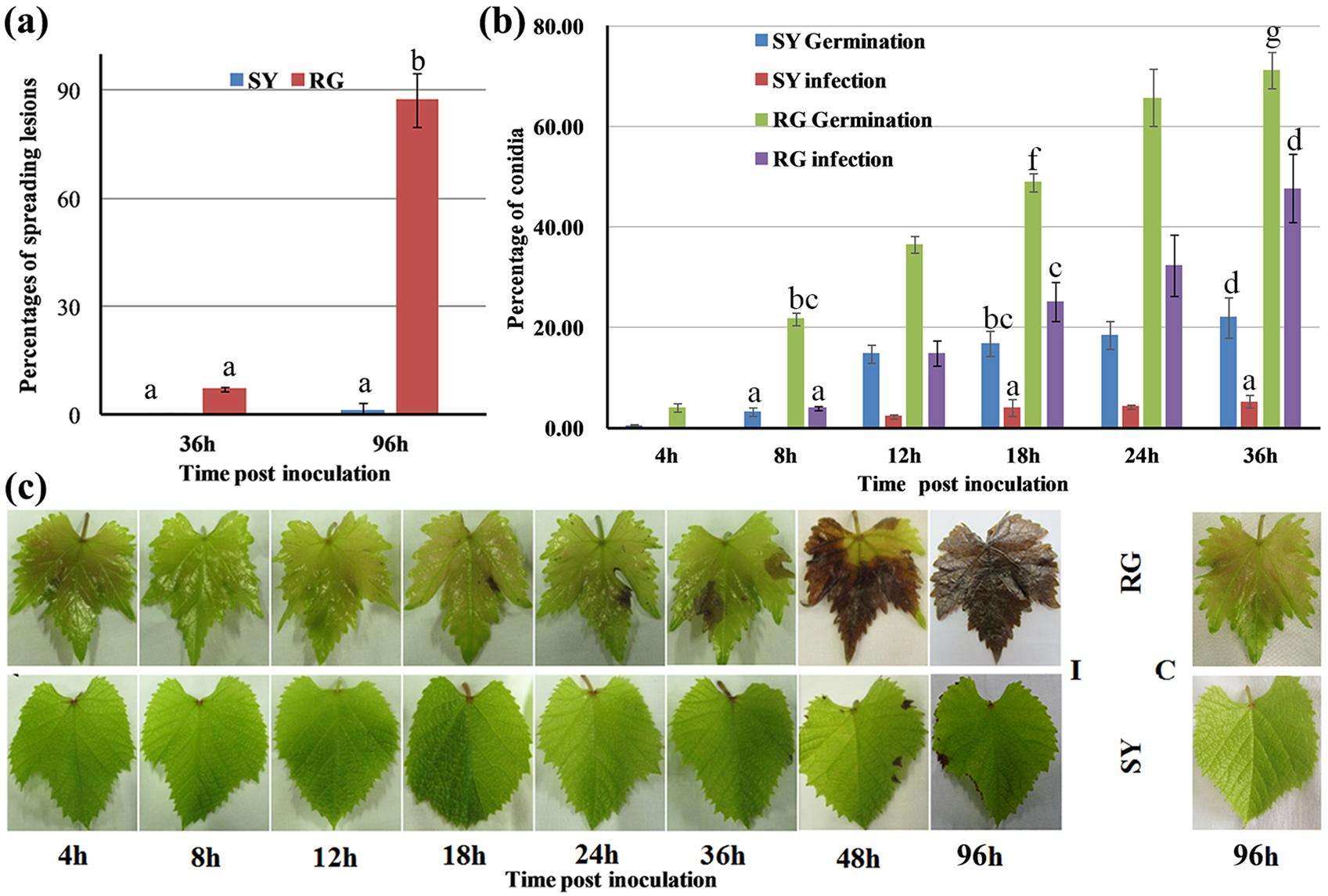

Fig. 1: Disease development on RG and SY leaves infected by Botrytis cinerea. | Horticulture Research

Fig. 1: Disease development on RG and SY leaves infected by Botrytis cinerea.

From: Comparative transcriptomic analysis highlights contrasting levels of resistance of Vitis vinifera and Vitis amurensis to Botrytis cinerea

Fig. 1

a Spreading lesion at 36 hpi (hours post-inoculation) and 96 hpi. b Percentage of germinated conidia (of the total number of conidia) and infection (of the total number of germinated conidia) at 4, 8, 12, 18, 24, and 36 hpi. At least 300 conidia were counted at each indicated time point. c RG and SY leaves at indicated time points. The means and standard errors were calculated from three biological replicates and 12 leaves of each replicate. The different lowercase letters represent significant differences at P ≤ 0.05 (Duncan’s test). RG Vitis vinifera cv. Red Globe, SY V. amurensis Shuangyou, I leaves inoculated with Botrytis cinerea, C control leaves inoculated with sterile water
