Fig. 2: Overview of papaya M0 and F0 floral bud transcriptome. | Horticulture Research

Fig. 2: Overview of papaya M0 and F0 floral bud transcriptome.

From: Sex biased expression of hormone related genes at early stage of sex differentiation in papaya flowers

Fig. 2

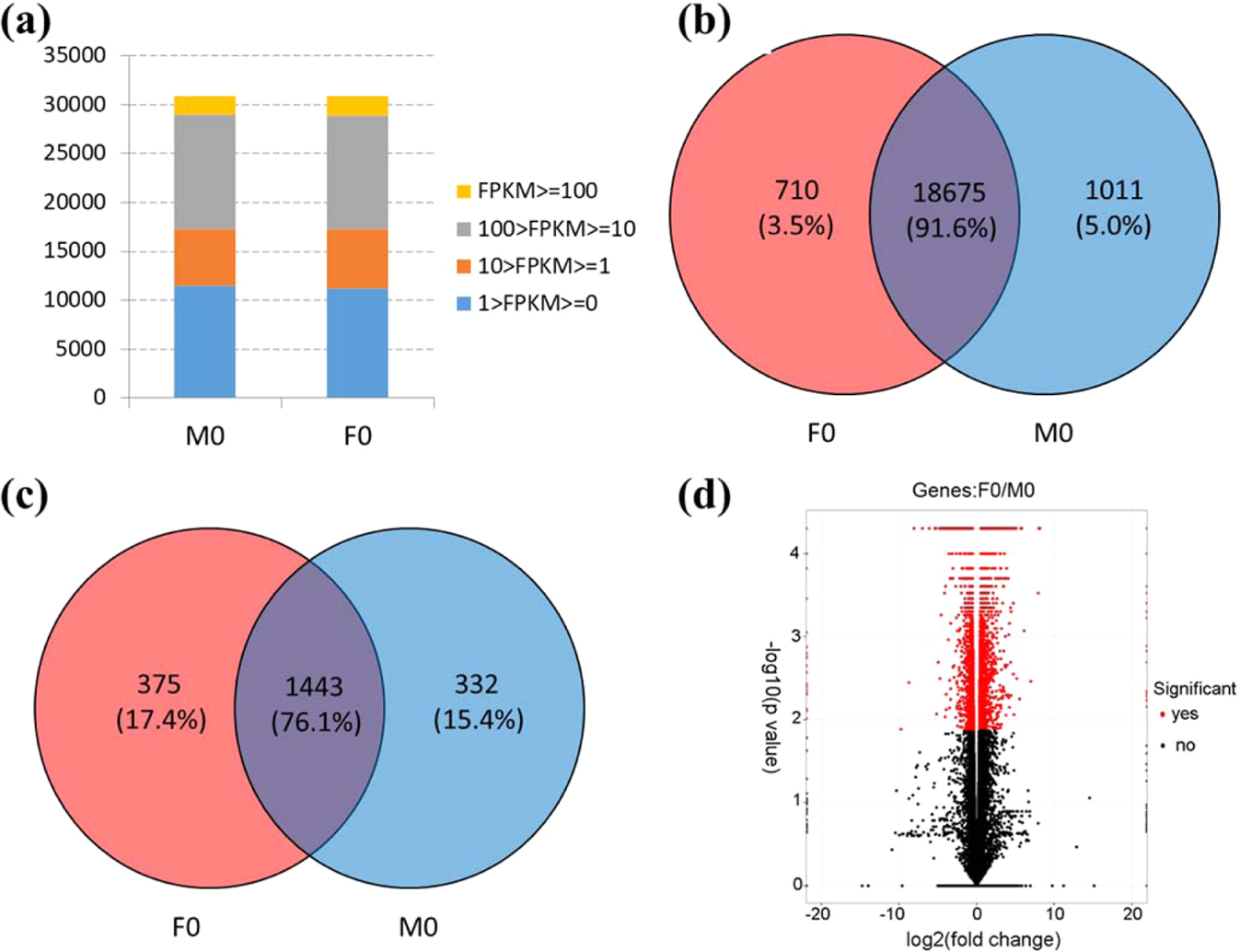

a Distribution of genes that displayed high expression (FPKM > = 100), middle expression (100 > FPKM > = 10), low expression (10 > FPKM > = 1), and no expression (1 > FPKM > = 0). b Venn diagram of genes expressed in male and female samples. c Venn diagram illustrating genes displayed high expression in at least one sample. d Volcano plot of transcriptomes of male and female floral buds. Red dots show the significant differential genes with FDR < 0.05
