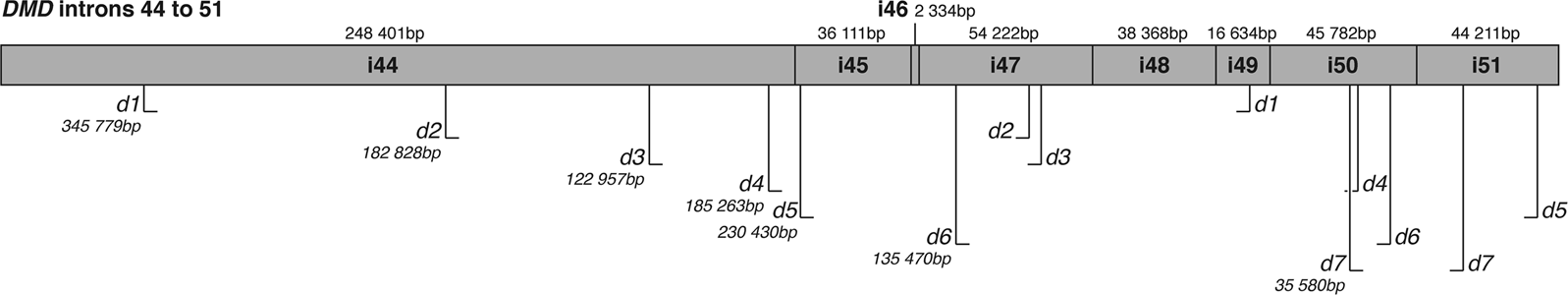

Fig. 2: Relative positions of DMD gene deletion breakpoints for seven patients.
From: Breakpoint junction features of seven DMD deletion mutations
Patient IDs are indicated, as are the total sizes of the deletions (excluding any de novo sequence inserted at the junction). Due to the large size of many of the introns in this region of the gene, intervening exons are not visible at this scale
