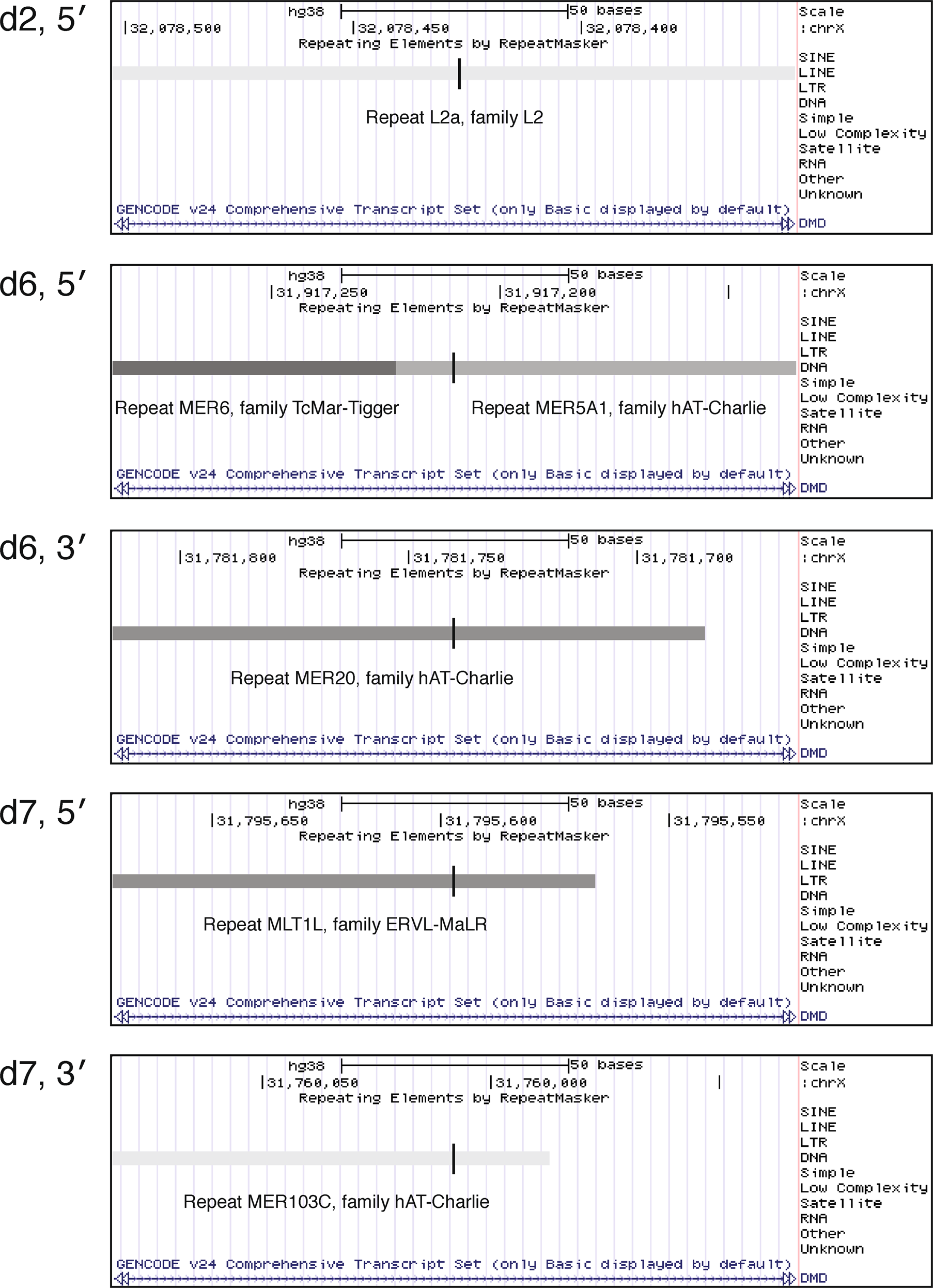

Fig. 3: Repetitive elements detected within 150 bp deletion breakpoint regions of DMD exon deletion patients d2, d6, and d7.
From: Breakpoint junction features of seven DMD deletion mutations
Vertical dashes indicate the breakpoint location relative to the normal sequence. Darker shading on a repetitive element indicates a stronger match to that element’s consensus sequence
