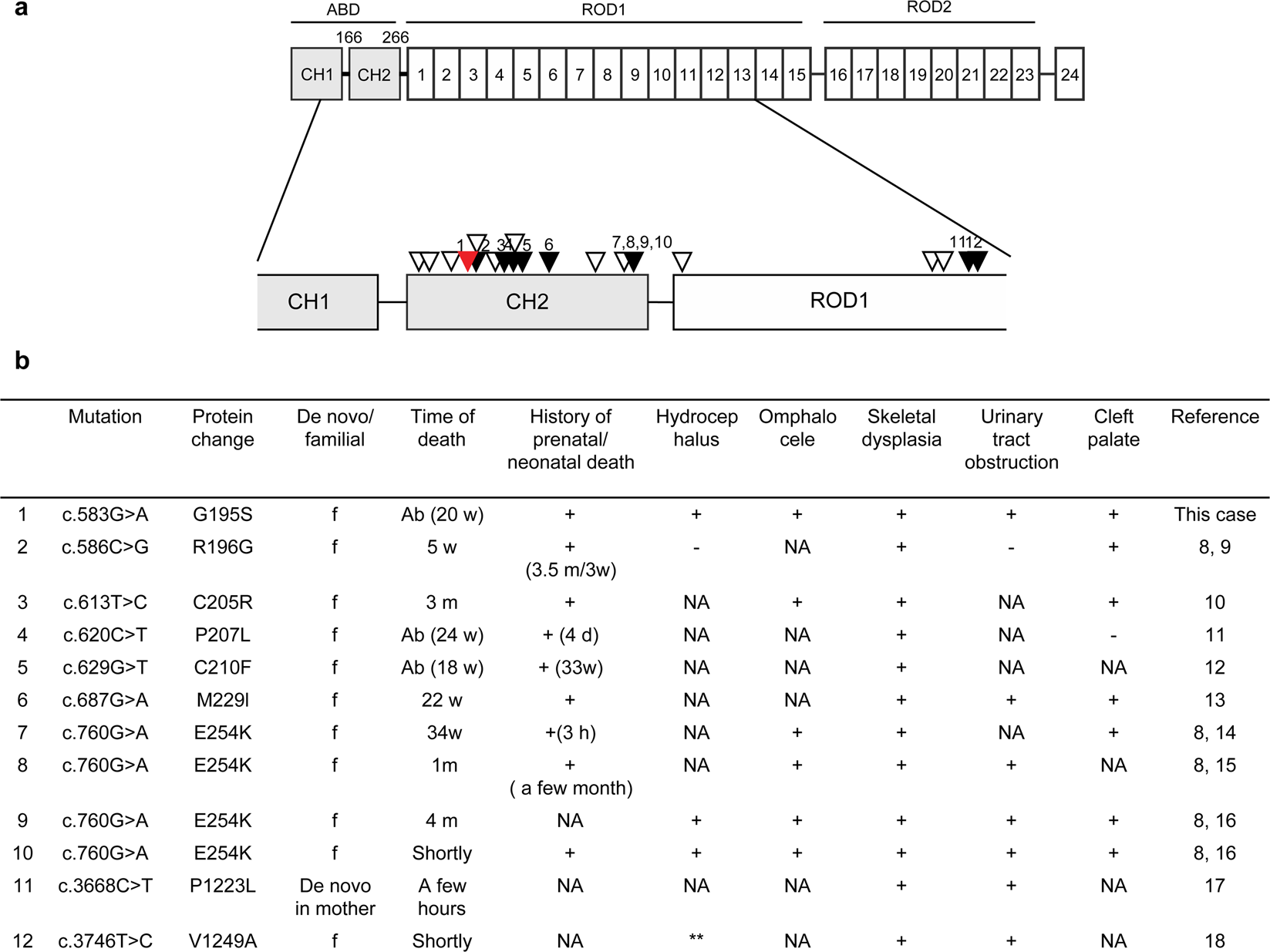

Fig. 2: FLNA variants with lethal outcomes.
From: A novel FLNA variant in a fetus with skeletal dysplasia
a Schematic representation of the missense FLNA variants in males in the region encoding the concerned protein domains. The red arrowhead indicates the case, and the black arrowhead indicates the lethal outcomes. b Clinical characterization and pathogenesis of the FLNA variants identified in nonsurviving males.
