Fig. 2 | Hypertension Research

Fig. 2

From: A comprehensive study revealed SNP–SNP interactions and a sex-dependent relationship between polymorphisms of the CYP2J2 gene and hypertension risk

Fig. 2

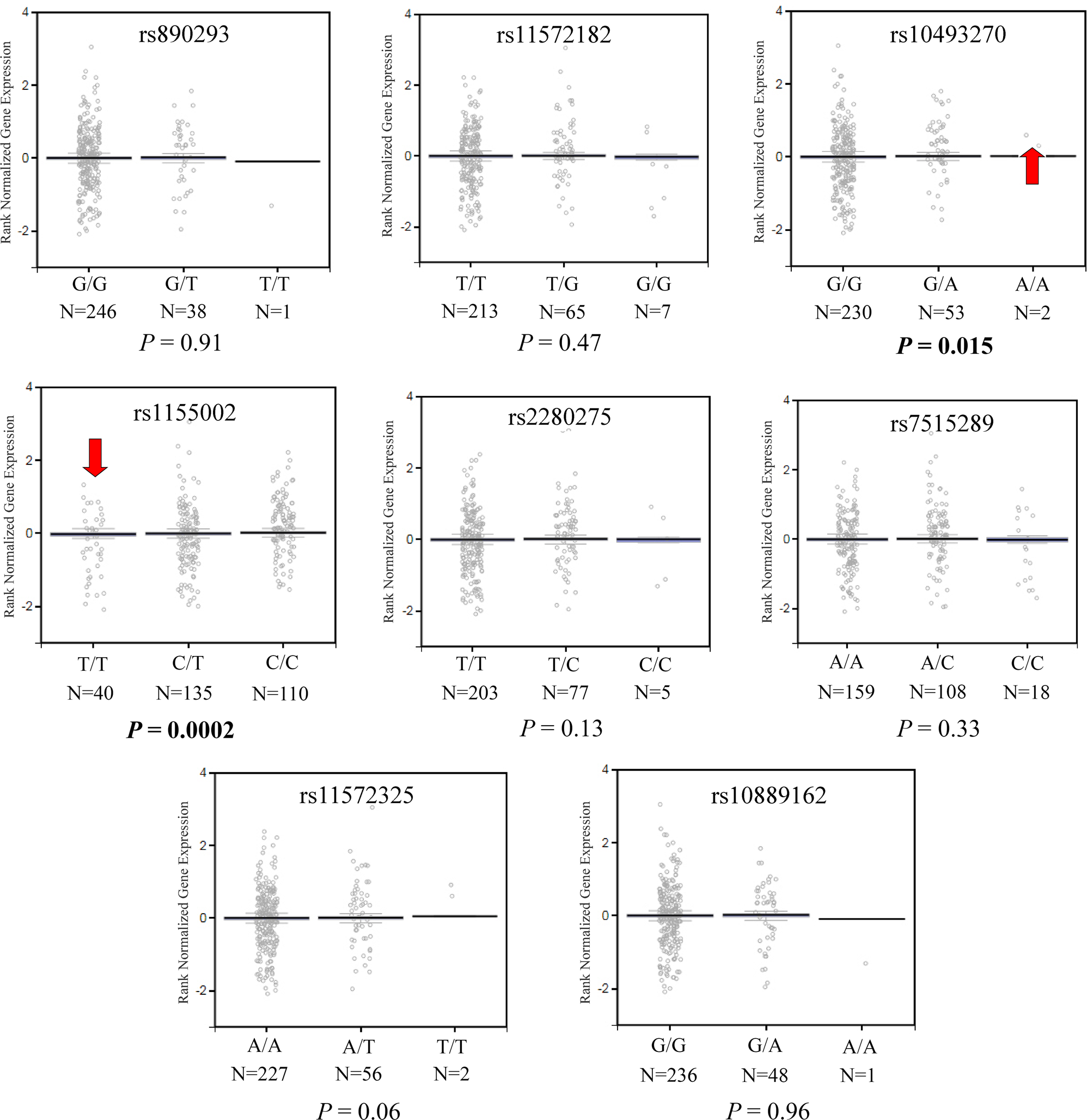

Impact of polymorphisms on CYP2J2 gene expression. The charts show the relative expression levels of the CYP2J2 gene mRNA (rank normalized gene expression) by different genotypes in the samples of tibial arteries obtained from 285 postmortem individuals as a part of the GTEx project. GTEx (Genotype-Tissue Expression) is a project created to establish a sample and data resource for studies on the relationship between genetic variation and gene expression in multiple human tissues to identify expression quantitative trait loci, or eQTLs. The data used for the analyses described in the manuscript were obtained from the GTEx Portal (https://www.gtexportal.org), dbGaP accession number phs000424.v6.p1 on 07/14/2017
