Fig. 5 | Hypertension Research

Fig. 5

From: Effect of the traditional Chinese medicine Pinggan-Qianyang decoction on SIRT1–PTEN signaling in vascular aging in spontaneously hypertensive rats

Fig. 5

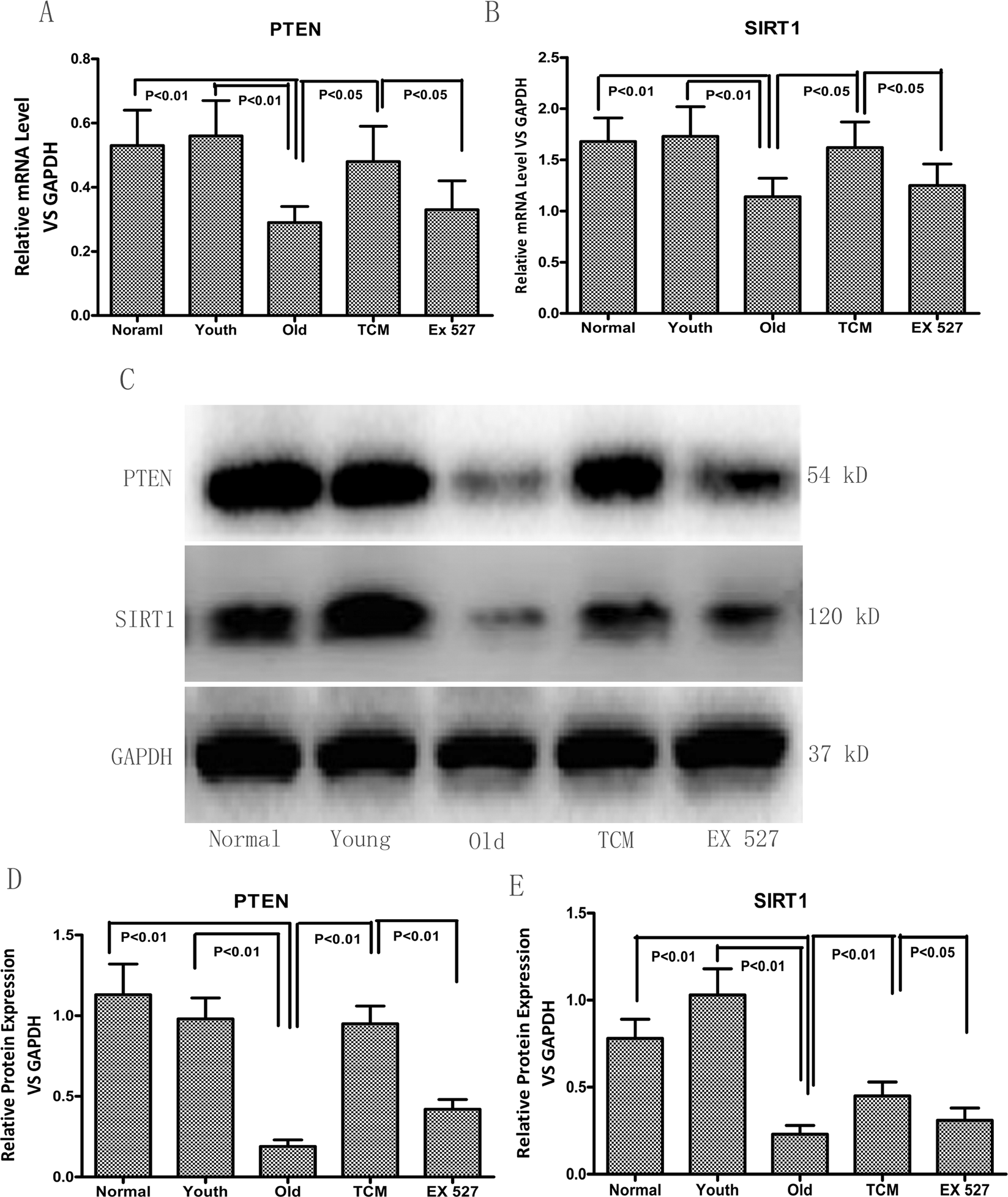

Effect of PGQYD on the quantitative expression of aging-related genes and proteins in SHRs. A PTEN mRNA expression detected by RT-qPCR. B Expression of SIRT1 mRNA detected by RT-qPCR. C Expression of aging-related proteins detected by western blot. D Quantitative analysis of expression of the aging-related protein PTEN, as detected by western blot analysis. E Quantitative analysis of expression of the aging-related protein SIRT1, as detected by western blot analysis. Data are presented as the mean ± SEM (n = 10 per group)
