The application of partial pressure of oxygen adjusted indirect Fick method in vasoreactivity testing by inhaling oxygen in congenital heart disease

Hypertension Research (2025)Cite this article

Abstract

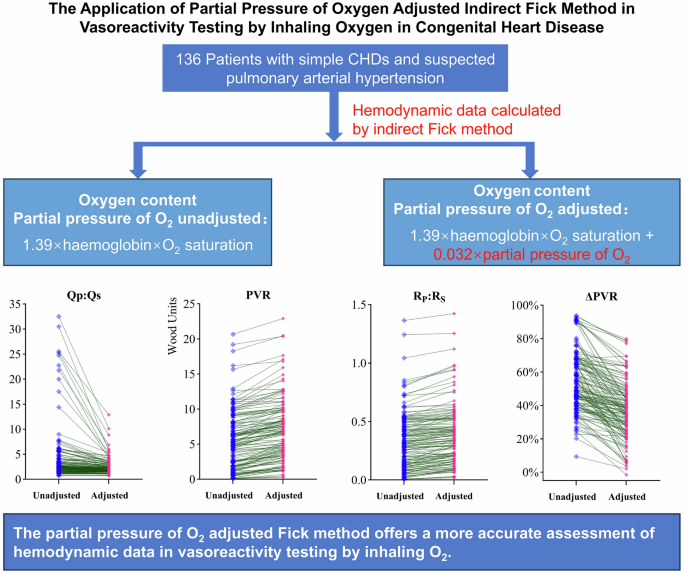

The influence of partial pressure of oxygen (pO2) is often overlooked during vasoreactivity testing by inhaling oxygen in congenital heart diseases (CHD). This study aims to evaluate the influence of pO2 on hemodynamic data. Patients with simple CHDs and suspected pulmonary arterial hypertension undergoing right heart catheterization including vasoreactivity testing by inhaling O2 were consecutively enrolled from June 2023 to March 2025. Patients with an arterial O2 saturation below 98% after inhaling O2 were excluded. Cardiac output was calculated using indirect Fick method, where blood O2 content (1.39 × hemoglobin × O2 saturation + 0.032 × pO2) was excluded (unadjusted) or included (adjusted) with the pO2 term. Hemodynamic data after inhaling O2 calculated by both methods were compared. An over 20% decrease in pulmonary vascular resistance with stable blood pressure was considered a positive vasoreactivity testing. During the study period, a total of 136 patients with simple CHDs were enrolled and 129 of them were diagnosed with pulmonary arterial hypertension. In vasoreactivity testing, after adjustment, pulmonary / systemic blood flow ratio decreased from 4.32 ± 5.82 to 2.51 ± 1.67, while pulmonary vascular resistance was increased from 5.62 ± 4.18 WU to 7.04 ± 4.44 WU. The response to O2 was adjusted to negative in 19 patients. The pO2-adjusted indirect Fick method incorporates the effect of dissolved O2 in hemodynamical data calculation, reducing overestimation of pulmonary / systemic blood flow ratio and underestimation of pulmonary vascular resistance in vasoreactivity testing by inhaling O2 for patients with simple CHDs.

This is a preview of subscription content, access via your institution

Access options

Buy this article

  • Purchase on SpringerLink
  • Instant access to the full article PDF.

USD 39.95

Prices may be subject to local taxes which are calculated during checkout

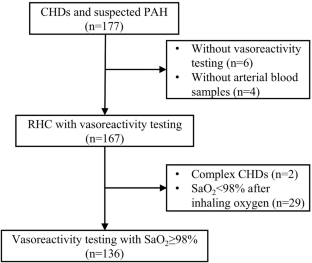

Fig. 1

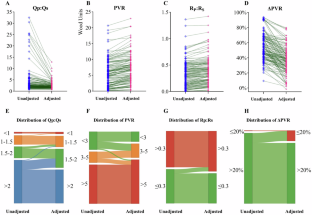

Fig. 2

Similar content being viewed by others

References

  1. Liu A, Diller GP, Moons P, Daniels CJ, Jenkins KJ, Marelli A. Changing epidemiology of congenital heart disease: effect on outcomes and quality of care in adults. Nat Rev Cardiol. 2023;20:126–37.

    Article  PubMed  Google Scholar

  2. Marelli AJ, Ionescu-Ittu R, Mackie AS, Guo L, Dendukuri N, Kaouache M. Lifetime prevalence of congenital heart disease in the general population from 2000 to 2010. Circulation. 2014;130:749–56.

    Article  PubMed  Google Scholar

  3. Center For Cardiovascular Diseases The Writing Committee Of The Report On Cardiovascular H, Diseases In China N. Report on Cardiovascular Health and Diseases in China 2023: an updated summary. Biomed Environ Sci. 2024;37:949–92.

    Google Scholar

  4. Duffels MG, Engelfriet PM, Berger RM, van Loon RL, Hoendermis E, Vriend JW, et al. Pulmonary arterial hypertension in congenital heart disease: an epidemiologic perspective from a Dutch registry. Int J Cardiol. 2007;120:198–204.

    Article  CAS  PubMed  Google Scholar

  5. Lowe BS, Therrien J, Ionescu-Ittu R, Pilote L, Martucci G, Marelli AJ. Diagnosis of pulmonary hypertension in the congenital heart disease adult population impact on outcomes. J Am Coll Cardiol. 2011;58:538–46.

    Article  PubMed  Google Scholar

  6. Dinarti LK, Hartopo AB, Kusuma AD, Satwiko MG, Hadwiono MR, Pradana AD, et al. The COngenital HeARt Disease in adult and Pulmonary Hypertension (COHARD-PH) registry: a descriptive study from single-center hospital registry of adult congenital heart disease and pulmonary hypertension in Indonesia. BMC Cardiovasc Disord. 2020;20:163.

    Article  CAS  PubMed  PubMed Central  Google Scholar

  7. Zhang R, Dai LZ, Xie WP, Yu ZX, Wu BX, Pan L, et al. Survival of Chinese patients with pulmonary arterial hypertension in the modern treatment era. Chest. 2011;140:301–9.

    Article  PubMed  Google Scholar

  8. Baumgartner H, De Backer J, Babu-Narayan SV, Budts W, Chessa M, Diller GP, et al. 2020 ESC Guidelines for the management of adult congenital heart disease. Eur Heart J. 2021;42:563–645.

    Article  CAS  PubMed  Google Scholar

  9. Humbert M, Kovacs G, Hoeper MM, Badagliacca R, Berger RMF, Brida M, et al. 2022 ESC/ERS Guidelines for the diagnosis and treatment of pulmonary hypertension. Eur Respir J. 2023;61:2200879.

  10. Jones JPS, Benson L Hemodynamics: Pressures and Flows. In: Butera G, Chessa M, Eicken A, Thomson J (eds). Cardiac Catheterization for Congenital Heart Disease: From Fetal Life to Adulthood. https://doi.org/10.1007/978-88-470-5681-7_9) Springer Milan: Milano, 2015, 125-48.

  11. Wilkinson JL. Haemodynamic calculations in the catheter laboratory. Heart. 2001;85:113–20.

    Article  CAS  PubMed  PubMed Central  Google Scholar

  12. Flamm MD, Cohn KE, Hancock EW. Measurement of systemic cardiac output at rest and exercise in patients with atrial septal defect. Am J Cardiol. 1969;23:258–65.

    Article  CAS  PubMed  Google Scholar

  13. Lock JE, Einzig S, Bass JL, Moller JH. The pulmonary vascular response to oxygen and its influence on operative results in children with ventricular septal defect. Pediatr Cardiol. 1982;3:41–6.

    Article  CAS  PubMed  Google Scholar

  14. Zhou Z, Gu Y, Tian L, Zheng H, Li S. Development and validation of a nomogram of persistent pulmonary hypertension in adult pretricuspid shunts after correction. J Am Heart Assoc. 2024;13:e032412.

    Article  PubMed  PubMed Central  Google Scholar

  15. Akagi S, Kasahara S, Akagi T, Ejiri K, Mitsuhashi T, Nakagawa K, et al. Feasibility of treat and repair strategy in congenital heart defects with pulmonary arterial hypertension. JACC Adv. 2024;3:100887.

    Article  PubMed  PubMed Central  Google Scholar

  16. Apitz C, Zimmermann R, Kreuder J, Jux C, Latus H, Pons-Kühnemann J, et al. Assessment of pulmonary endothelial function during invasive testing in children and adolescents with idiopathic pulmonary arterial hypertension. J Am Coll Cardiol. 2012;60:157–64.

    Article  PubMed  Google Scholar

  17. Apitz C, Hansmann G, Schranz D. Hemodynamic assessment and acute pulmonary vasoreactivity testing in the evaluation of children with pulmonary vascular disease. Expert consensus statement on the diagnosis and treatment of paediatric pulmonary hypertension. The European Paediatric Pulmonary Vascular Disease Network, endorsed by ISHLT and DGPK. Heart. 2016;102(Suppl 2):ii23–9.

    Article  CAS  PubMed  Google Scholar

  18. Galiè N, Beghetti M, Gatzoulis MA, Granton J, Berger RM, Lauer A, et al. Bosentan therapy in patients with Eisenmenger syndrome: a multicenter, double-blind, randomized, placebo-controlled study. Circulation. 2006;114:48–54.

    Article  PubMed  Google Scholar

  19. Pulido T, Adzerikho I, Channick RN, Delcroix M, Galiè N, Ghofrani HA, et al. Macitentan and morbidity and mortality in pulmonary arterial hypertension. N Engl J Med. 2013;369:809–18.

    Article  CAS  PubMed  Google Scholar

  20. Mukhopadhyay S, Nathani S, Yusuf J, Shrimal D, Tyagi S. Clinical efficacy of phosphodiesterase-5 inhibitor tadalafil in Eisenmenger syndrome-a randomized, placebo-controlled, double-blind crossover study. Congenit Heart Dis. 2011;6:424–31.

    Article  PubMed  Google Scholar

  21. Gatzoulis MA, Landzberg M, Beghetti M, Berger RM, Efficace M, Gesang S, et al. Evaluation of macitentan in patients with Eisenmenger syndrome. Circulation. 2019;139:51–63.

    Article  CAS  PubMed  Google Scholar

  22. Zeder K, Mak S, Galie N, Rosenkranz S, Maron BA. Right heart catheterization in heart failure: indications, interpretation, and pitfalls. Eur Heart J. 2025;46:3354–72.

    Article  PubMed  Google Scholar

Download references

Acknowledgements

We would like to thank all the patients and staff of the Department of Cardiology, Peking Union Medical College Hospital, Chinese Academy of Medical Sciences and Peking Union Medical College, and Department of Cardiology, Beijing Sixth Hospital for their valuable contributions to this study. These authors take responsibility for all aspects of the reliability and freedom from bias of the data presented and their discussed interpretation.

Funding

This research was supported by National Key Research and Development Program of China (grant number: 2022YFC2703900 and 2022YFC2703901) and CAMS Innovation Fund for Medical Sciences (CIFMS) (grant number: 2021-I2M-1-018).
