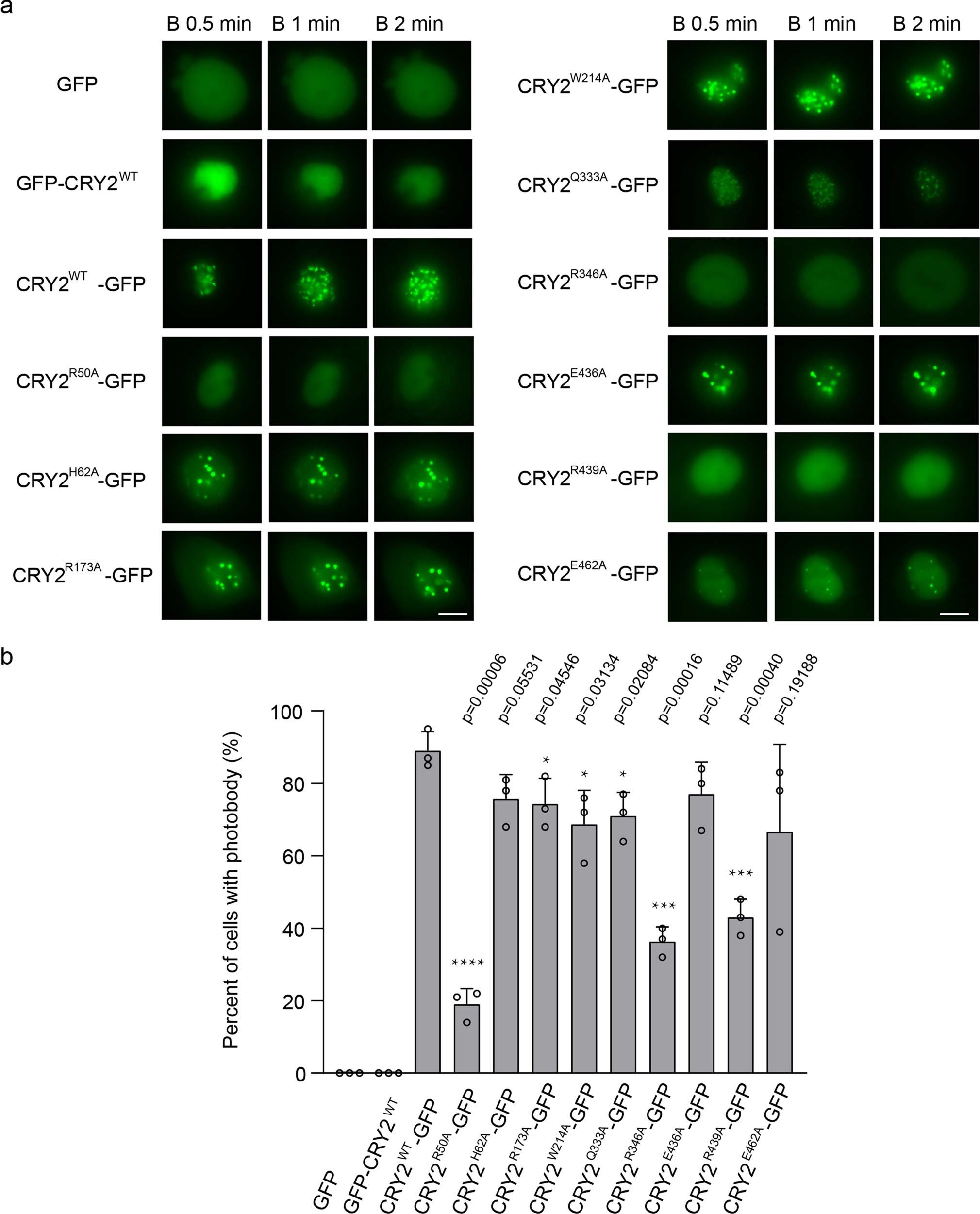

Extended Data Fig. 7: Capacity of photobodies formation of different CRY2 mutants.
From: Structural insights into the photoactivation of Arabidopsis CRY2
a, Photobodies formation of CRY2 WT and CRY2 mutants. It was reported that CRY2-GFP, but not GFP-CRY2, forms photobodies in response to blue light19. GFP was constructed to the C-terminal of these CRY2 mutants. B: blue. Bars = 5 μm. b, Percent of cells with photobodies which is calculated by [total number of cells with photobodies in a field of view] / [the number of total cells in the same field view]. The standard deviation is derived from n=80 cells examined 3 independent experiments. Data were presented as mean ± SD. Black circles indicate individual data points for 3 biological replicates. Differences between each mutants and wild type CRY2-GFP were analyzed by two-tailed paired t-tests. Means with p < 0.05 are indicated. *, p < 0.05; **, p < 0.01; ***, p < 0.001; ****, p < 0.0001.
