Extended Data Fig. 2: Cryo-EM map of CRY2 tetramer generation and resolution estimation.
From: Structural insights into the photoactivation of Arabidopsis CRY2

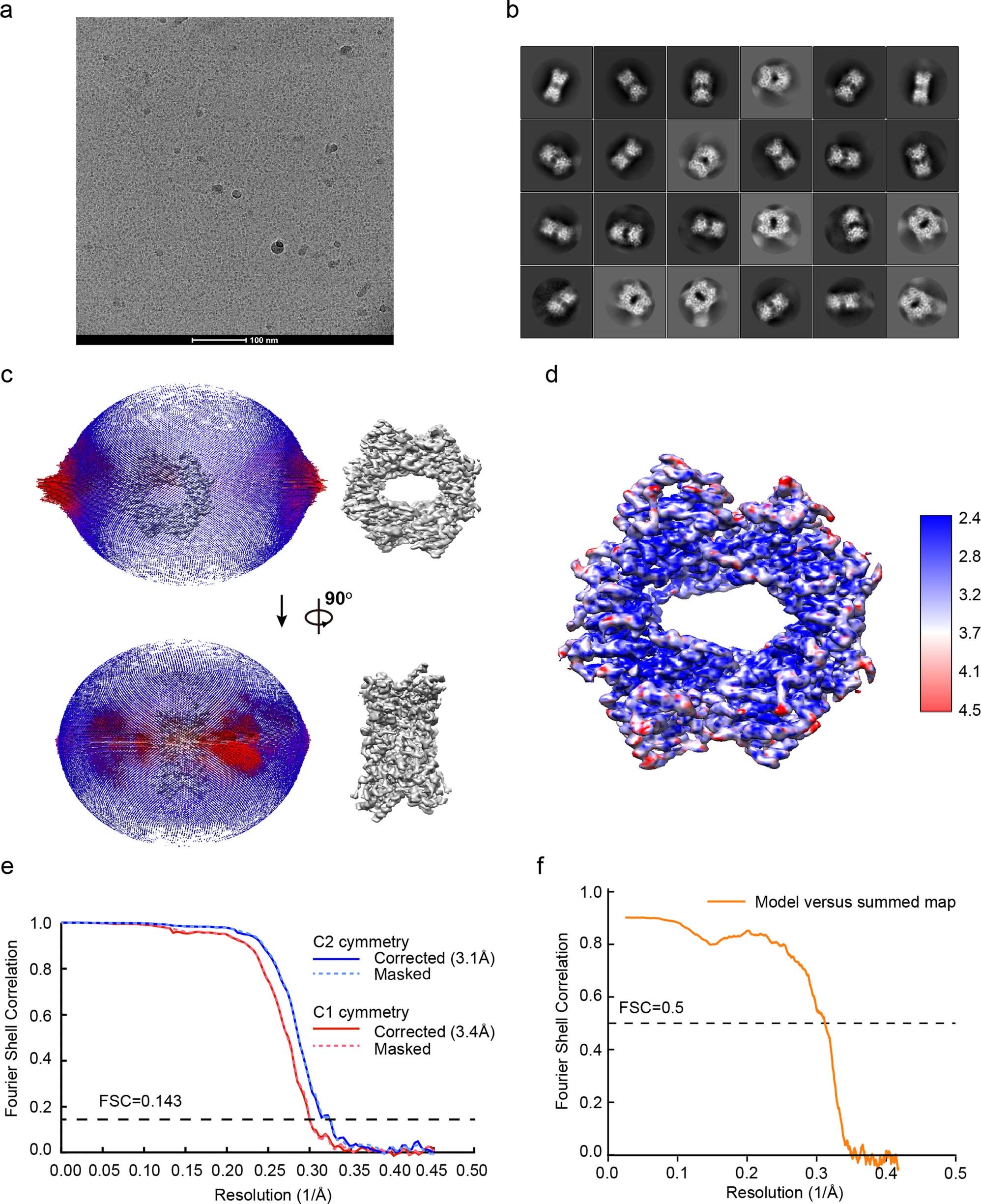

a, Representative Cryo-EM micrograph of CRY2 oligomer. Experiments were independently repeated three times with similar results. b, Selected reference-free 2D classification averages. 2D classification of CRY2 oligomer particles representing tetramer-like fold. c, Angular distribution plot for the final reconstruction from two different views. d, Local resolution of the Cryo-EM map generated by ResMap colored from blue to red to indicate resolution from high to low (side bar). e, Gold-standard Fourier Shell Correlation curve for CRY2 tetramer reconstruction. f, Fourier Shell Correlation curve of the model versus the map used for model refinement.
