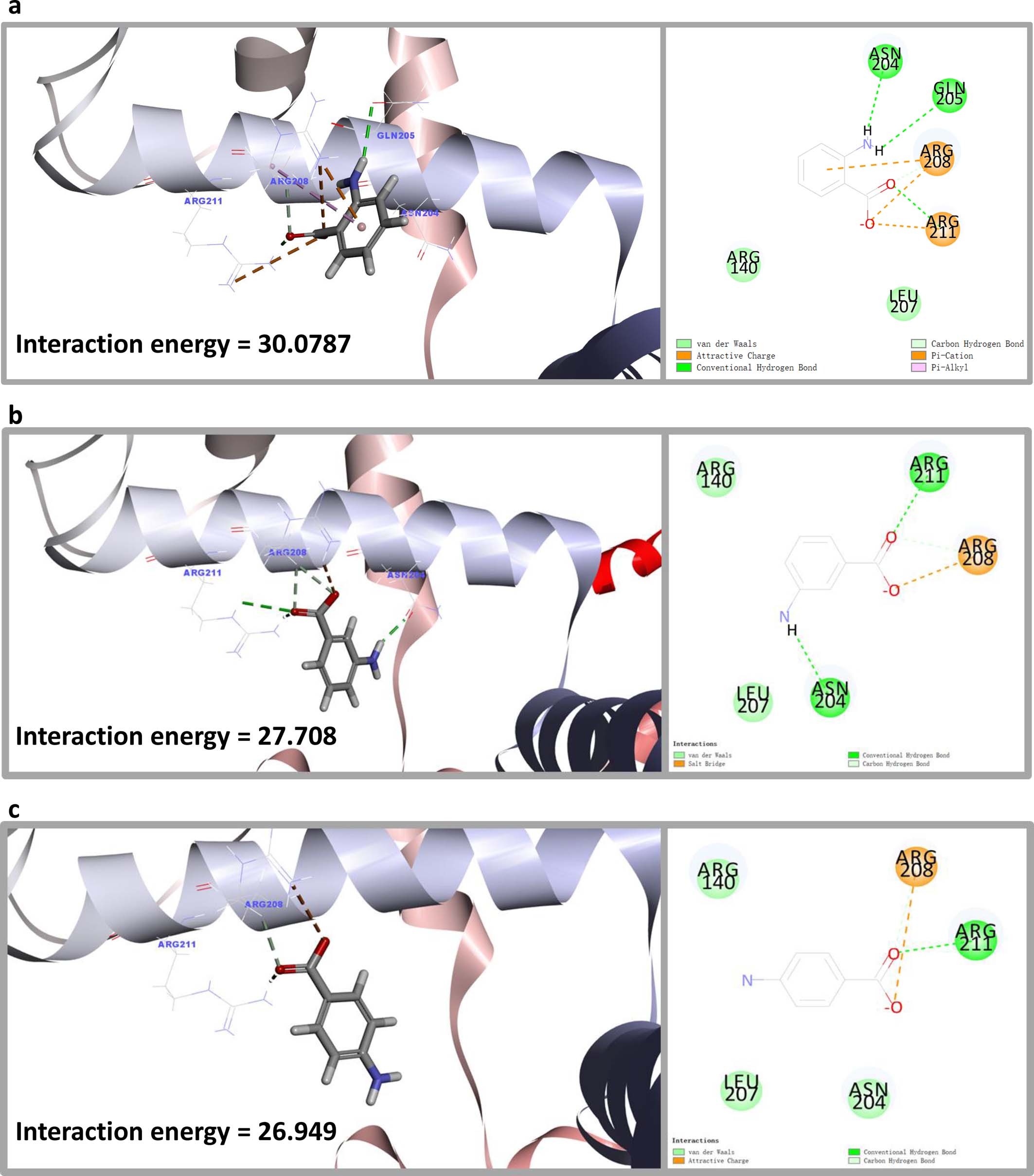

Extended Data Fig. 3: Modelling of potential interactions of RpoS with different anthranilic acid (AA) isomers.
From: Bacterial seed endophyte shapes disease resistance in rice
The interaction between anthranilic acid (a), meta-anthranilic acid (b) and para-anthranilic acid (c), respectively with RpoS of B. plantarii were analysed with molecular docking experiments. Illustrations of the interaction between AA and RpoS by molecular docking (left panel), and putative binding sites and modes of AA stabilization by amino acid residues of RpoS (right panel) are shown.
