Extended Data Fig. 1: Transgene expression and phenotypes of DBD swap lines.

From: Design principles of a minimal auxin response system

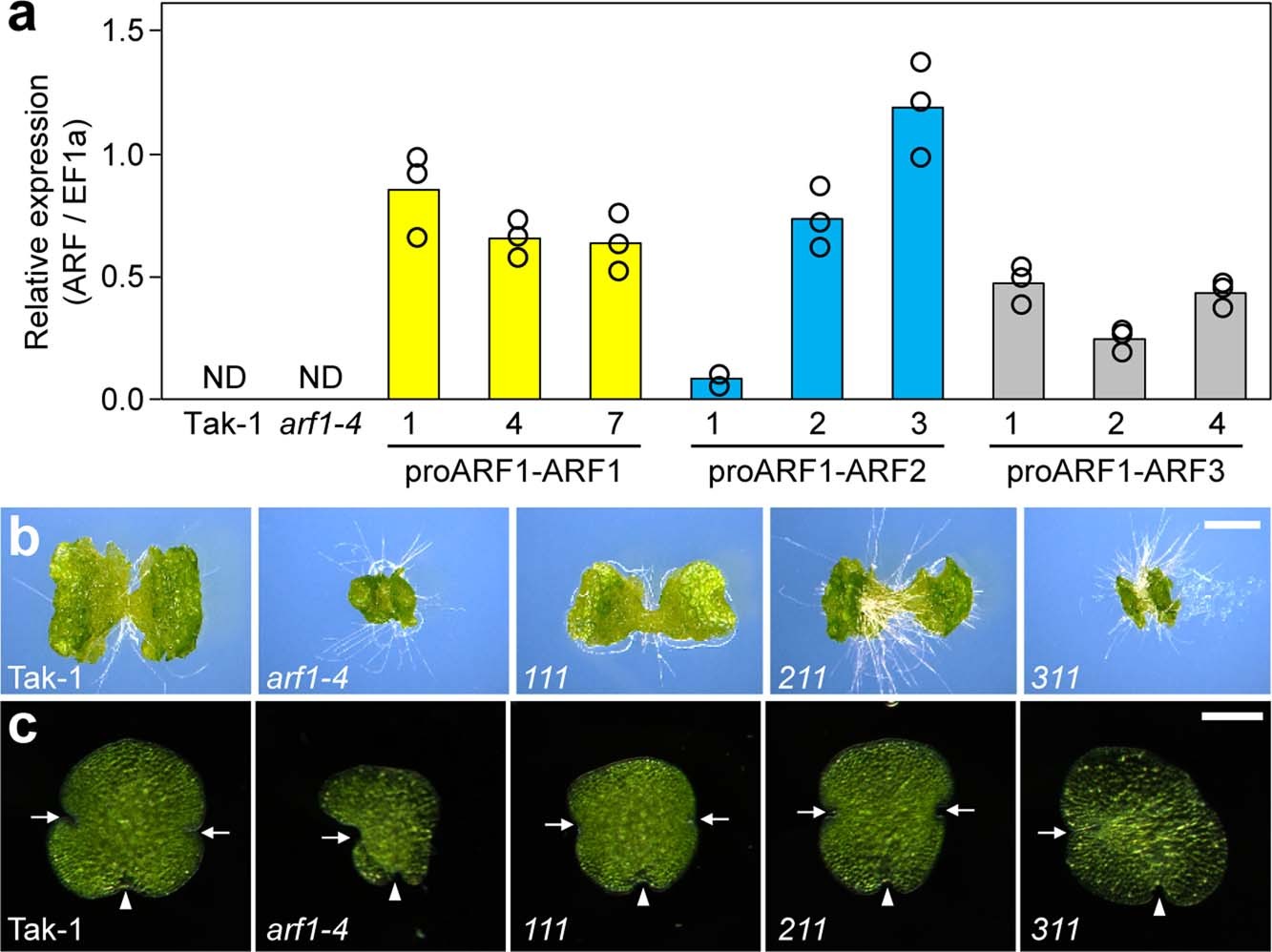

Extended Data Fig. 1: Transgene expression and phenotypes of DBD swap lines.

a, Expression of transgenic transcripts in gemmalings of three independent proARF1-ARF1, proARF1-ARF2 and proARF1-ARF3 lines, measured by qRT-PCR using the common 5’-UTR fragment. Circles indicate each data point for three technical replicates. ND: not detected in Tak-1 wild-type and arf1-4 mutant. b, Ten-day-old gemmalings and c, immature gemmae of Tak-1 wild-type, Mparf1-4, proMpARF1:ARF111 (111), proMpARF1:ARF211 (211) and proMpARF1:ARF311 (311). Bars = 2 mm in (b) and 0.1 mm in (c). The experiment was repeated twice with similar results.
