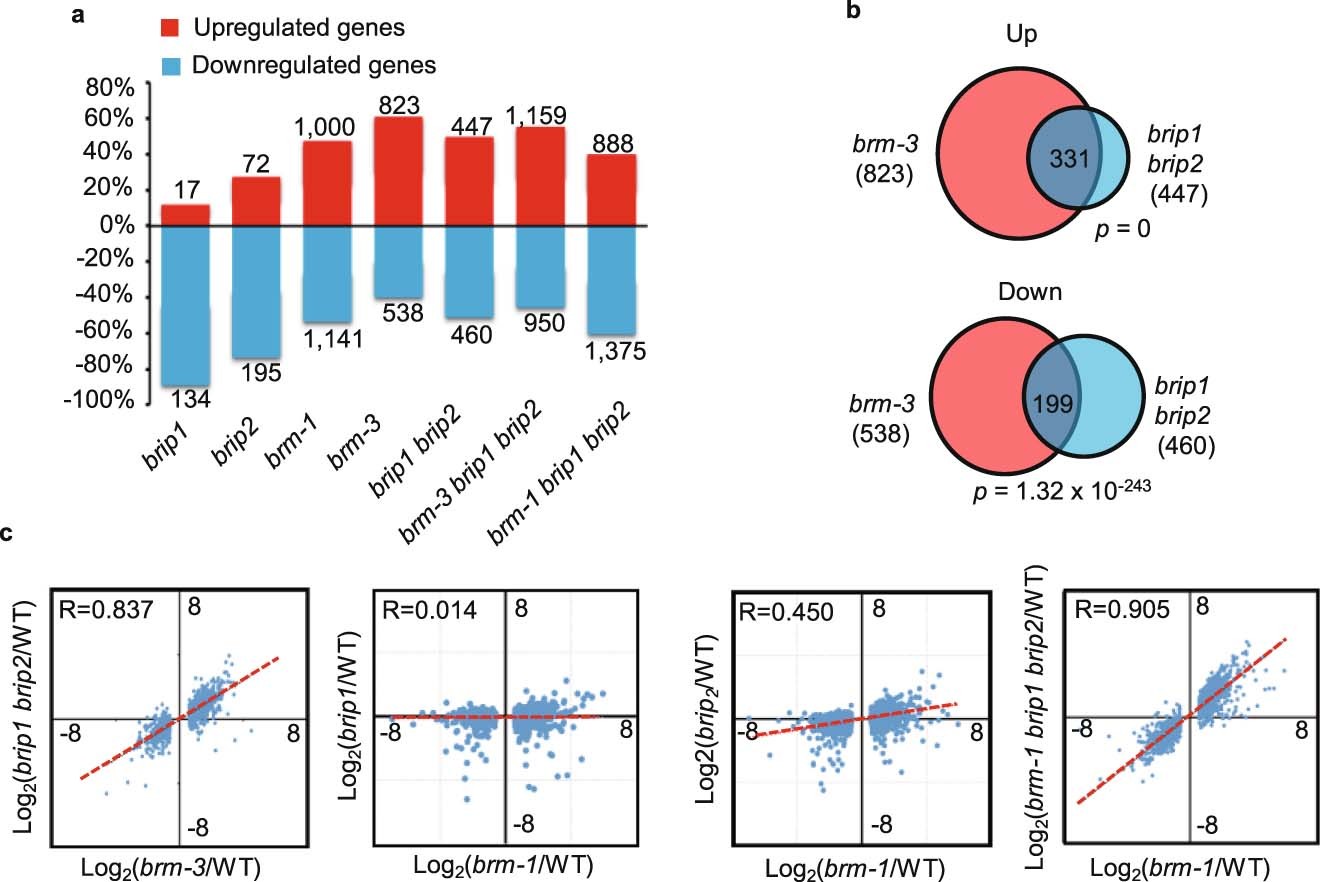

Extended Data Fig. 4: brip1brip2 mutants had similar transcriptome to brm mutants.
From: BRAHMA-interacting proteins BRIP1 and BRIP2 are core subunits of Arabidopsis SWI/SNF complexes
a, Summary of up- and down-regulated genes in different mutants compared to WT. The number indicates the concrete number of up- and down-regulated genes and the Y-axis showing the percentage of up- and down-regulated genes of all mis-regulated genes. b, Venn diagrams showing statistically significant overlaps between genes up- or down-regulated in brm-3 and those in brip1 brip2. p = 0, Hypergeometric test. c, Scatterplot of FPKM log2 fold change over WT of indicated mutants (y-axis) vs. brm-3 or brm-1 (x-axis) at brm-3 or brm-1 differentially expressed genes. Red lines indicate the line of best fit, and adjusted R value is indicated. Dots are mean values from three biologically independent experiments.
