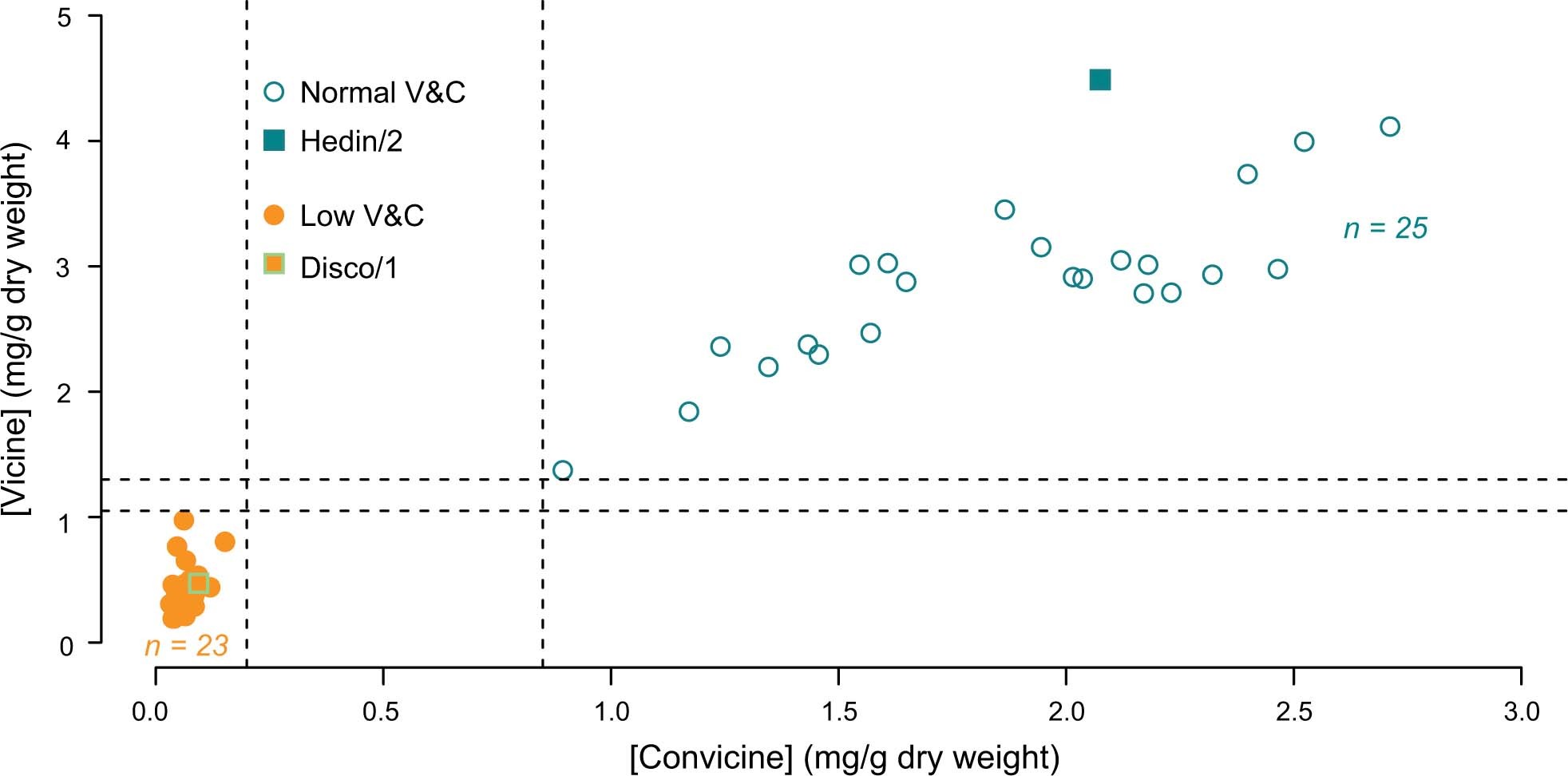

Extended Data Fig. 2: Seed vicine and convicine phenotypes of Hedin/2 x Disco/1 pseudo-F2 recombinants within the vc- interval.
From: VC1 catalyses a key step in the biosynthesis of vicine in faba bean
Recombinants are classified as Normal V&C (blue open circles) where vicine levels are >1.3 mg/g and convicine levels are >0.85 mg/g or as Low V&C (green open circles) where vicine levels are <1.05 mg/g and convicine levels are <0.2 mg/g. Parental means (n = 2) are shown as squares for Hedin/2 (green) and Disco/1 (blue).
