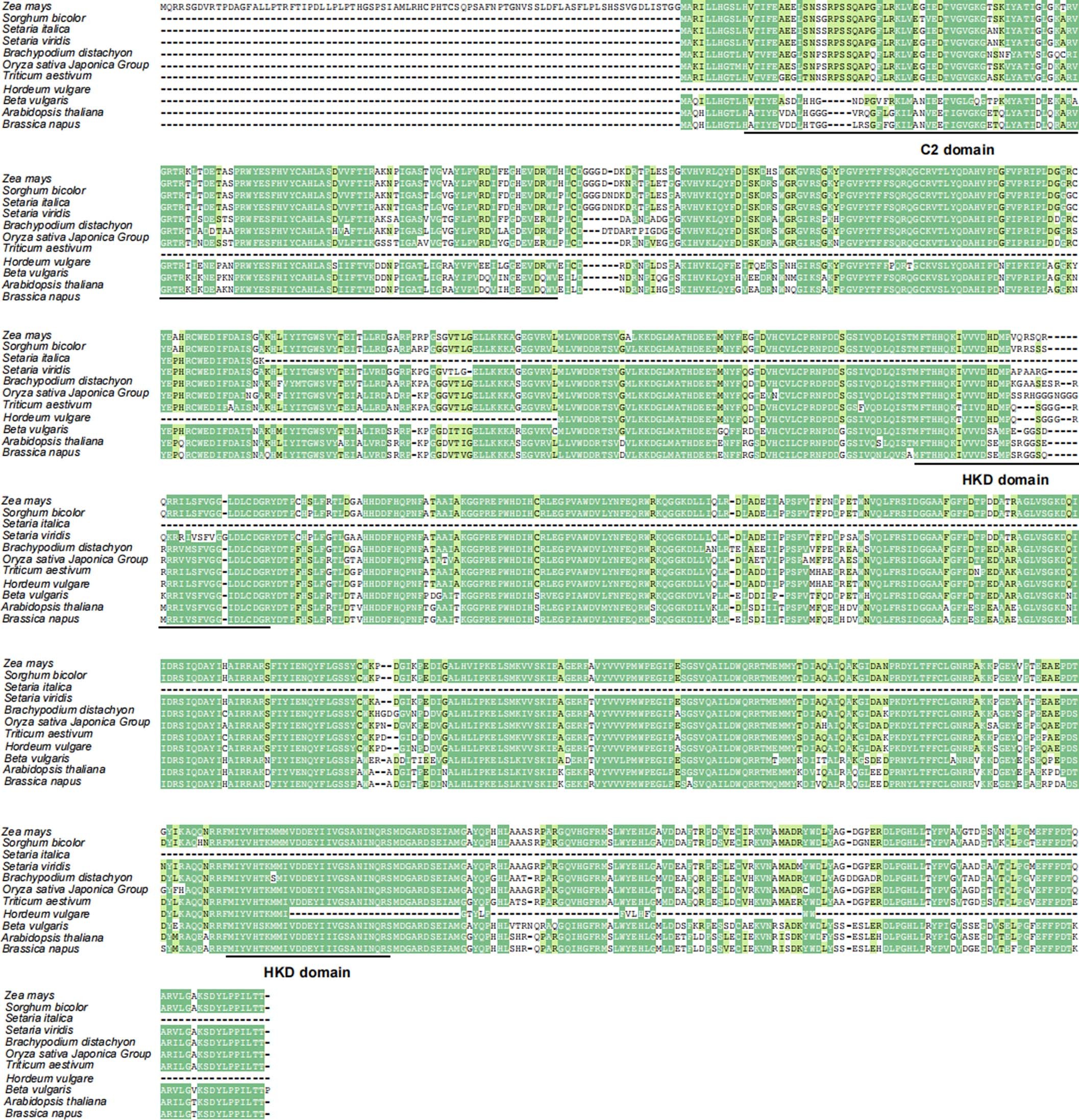

Extended Data Fig. 3: Multiple alignment of ZmPLD3 orthologs in eight monocots and three dicots.
From: Loss-of-function alleles of ZmPLD3 cause haploid induction in maize
The amino acid sequences of ZmPLD3 and its orthologs were downloaded from the website http://www.gramene.org/. Multiple alignments including Zea mays (Zm00001d037643), Sorghum bicolor (SORBI_3009G062600, 96% sequence identity to that of ZmPLD3), Setaria viridis (SEVIR_3G102400v2, 92% identity), Setaria italica (SETIT_024724mg, 90% identity), Oryza sativa Japonica Group (Os05g0171000, 86% identity), Triticum aestivum (TraesCS1A02G115300, 84% identity), Brachypodium distachyon (BRADI_2g34290v3, 83% identity), Hordeum vulgare (HORVU1Hr1G025370, 82% identity), Beta vulgaris (BVRB_9g219660, 75% identity), Brassica napus (BnaC05g37540D, 71% identity), and Arabidopsis thaliana (AT3G15730, 71% identity) were performed. The dark- and light-green backgrounds indicate increasingly conserved positions. Three conserved domains are indicated by underlines.
