Extended Data Fig. 6: Read coverage across the whole mitochondrial genome in next-generation sequencing experiments.
From: Targeted introduction of heritable point mutations into the plant mitochondrial genome

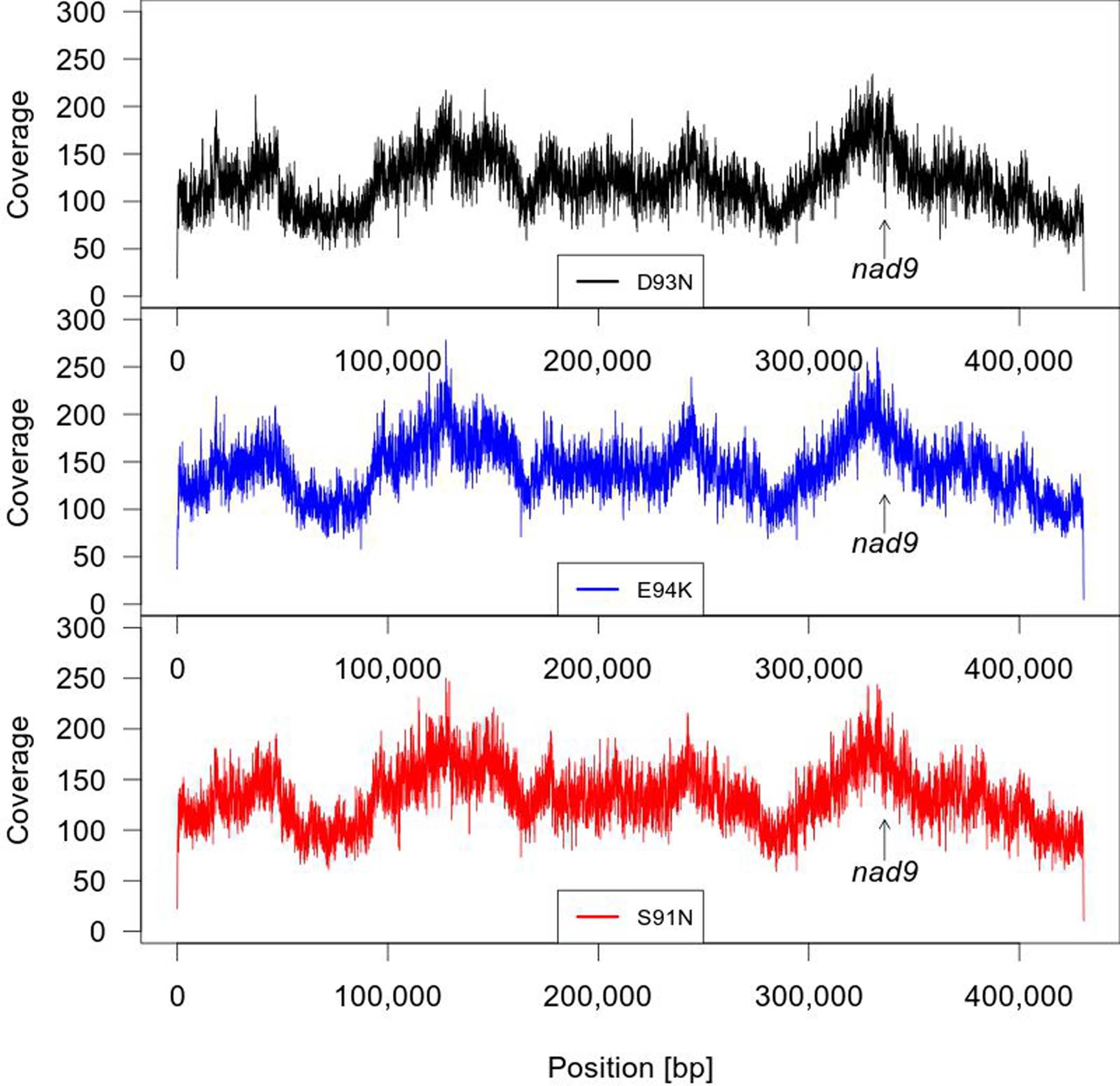

The mitochondrial genomes of mutant lines D93N-1, E94K-1 and S91N-1 were sequenced. Nucleotide positions [bp] on the x-axis are according to the tobacco mitochondrial reference genome sequence (NC_006581). The y-axis shows the number of reads per position. Upper panel: D93N-1 (black), middle panel: E94K-1 (blue), lower panel: S91N-1 (red). The arrow indicates the position of nad9.
