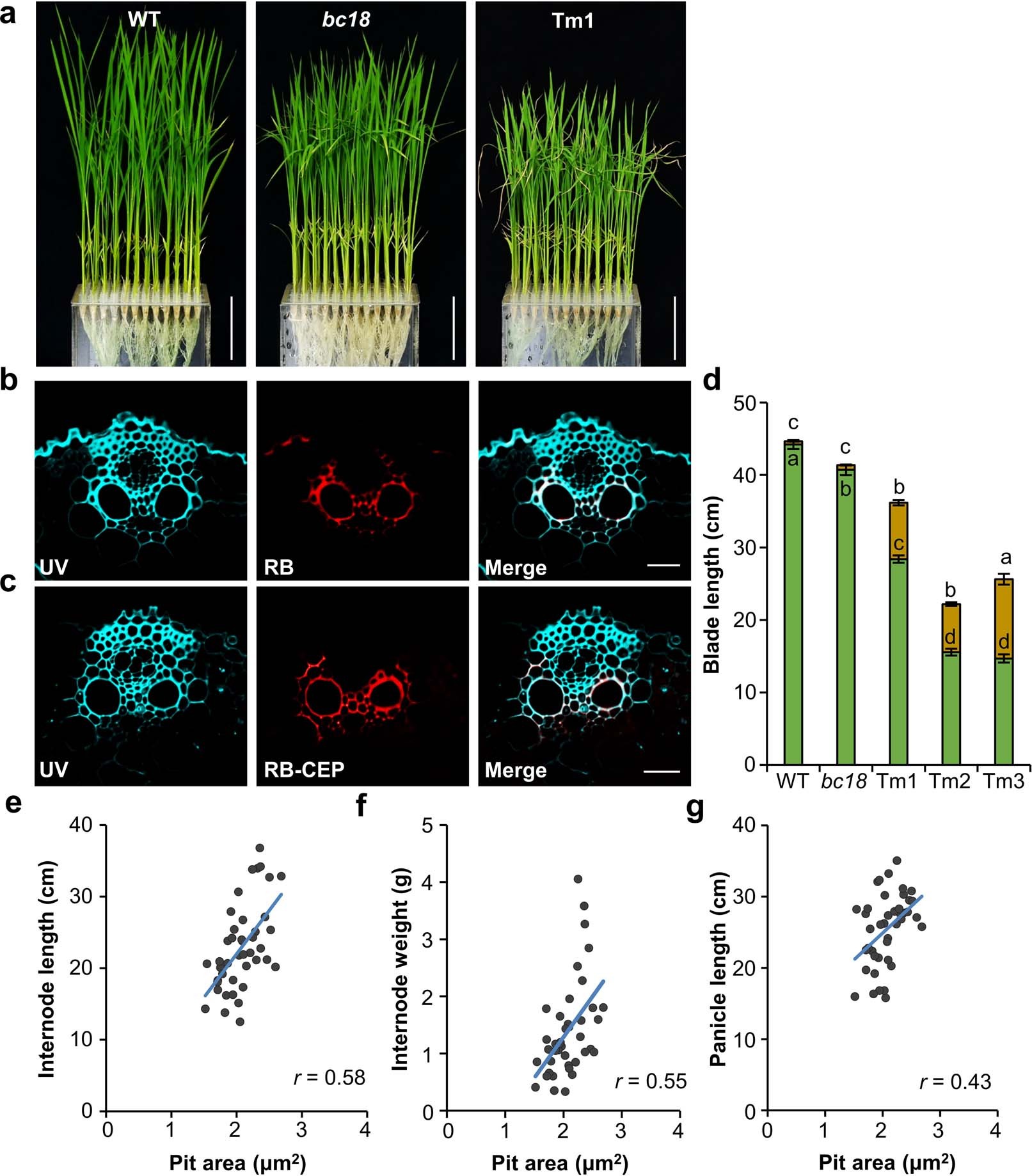

Extended Data Fig. 10: Transport and phenotype analyses.
From: Xylan-based nanocompartments orchestrate plant vessel wall patterning
a, Two-week-old seedlings of the indicated genotypes. b,c, Leaf cross section of wild-type seedlings treated in rhodamine B (RB, b) and rhodamine B-tagged CEP6.1 peptide (RB-CEP, c), showing fluorescent signals mainly in vessels cells. d, Length of the normal (green) and wilting (yellow) parts of leaves from the indicated genotypes shown in Fig. 6d. Error bars represent the mean ± s.d. n = 20 leaves from individual plants. e-g, Correlation analysis of pit area with the 2nd internode length (e), internode weight (f), and panicle length (g) in 42 core rice accessions. Tm1, Tm2 and Tm3 indicate triple mutants defined in Extended Data Fig. 3b. Bars = 5 cm in (a) and 20 μm in (b,c). Letters a–d in (d) indicate statistical significance according to Tukey’s multiple range test. P < 0.05.
